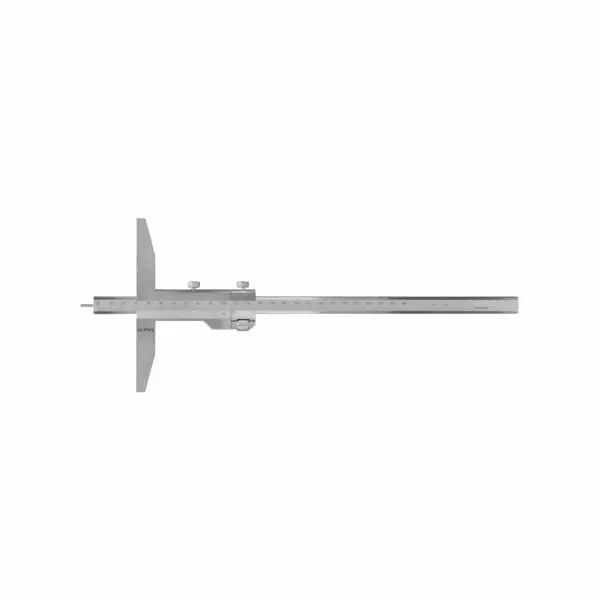

Slide depth caliper made of hardened stainless steel ALPA AB050

Category: SKU: AB050
Characteristics
  • Accuracy ± 0,05 mm (250). Resolution 0,02 mm.
    Etched, precision graduation, easy to read and long-lasting. Raised slider for easy movement. Slider locking screw with micrometric adjustment. Manufactured according to DIN 862. Contact ø 2 x 10 mm.
Description

– Hardened stainless steel
– Provided with wooden case

Properties

  • Accuracy: ± 0,05 (250)
  • Resolution: 0,02

Drawings
Variations
Code
Range mm
A mm
B mm
E mm
AB050250
Range mm
0 ÷ 250
A mm
350
B mm
140
E mm
14 x 4
0,25
AB050300
Range mm
0 ÷ 300
A mm
400
B mm
140
E mm
14 x 4
0,3
AB050400
Range mm
0 ÷ 400
A mm
500
B mm
140
E mm
14 x 4
0,4
AB050500
Range mm
0 ÷ 500
A mm
600
B mm
140
E mm
14 x 4
0,6
AB0501000
Range mm
0 ÷ 1000
A mm
1100
B mm
140
E mm
14 x 4
2
