Analogue thickness gauge ALPA BB390

Characteristics
  • Monoblock structure, high accuracy, shockproof mechanism.
    Lapped ceramic contact points Ø10 mm on all models. Useful to measure a wide range of material’s thickness such leather, paperboard, paper, felt, rubber, glass, metal, films, plywood, plastics etc. Special contact points on request.

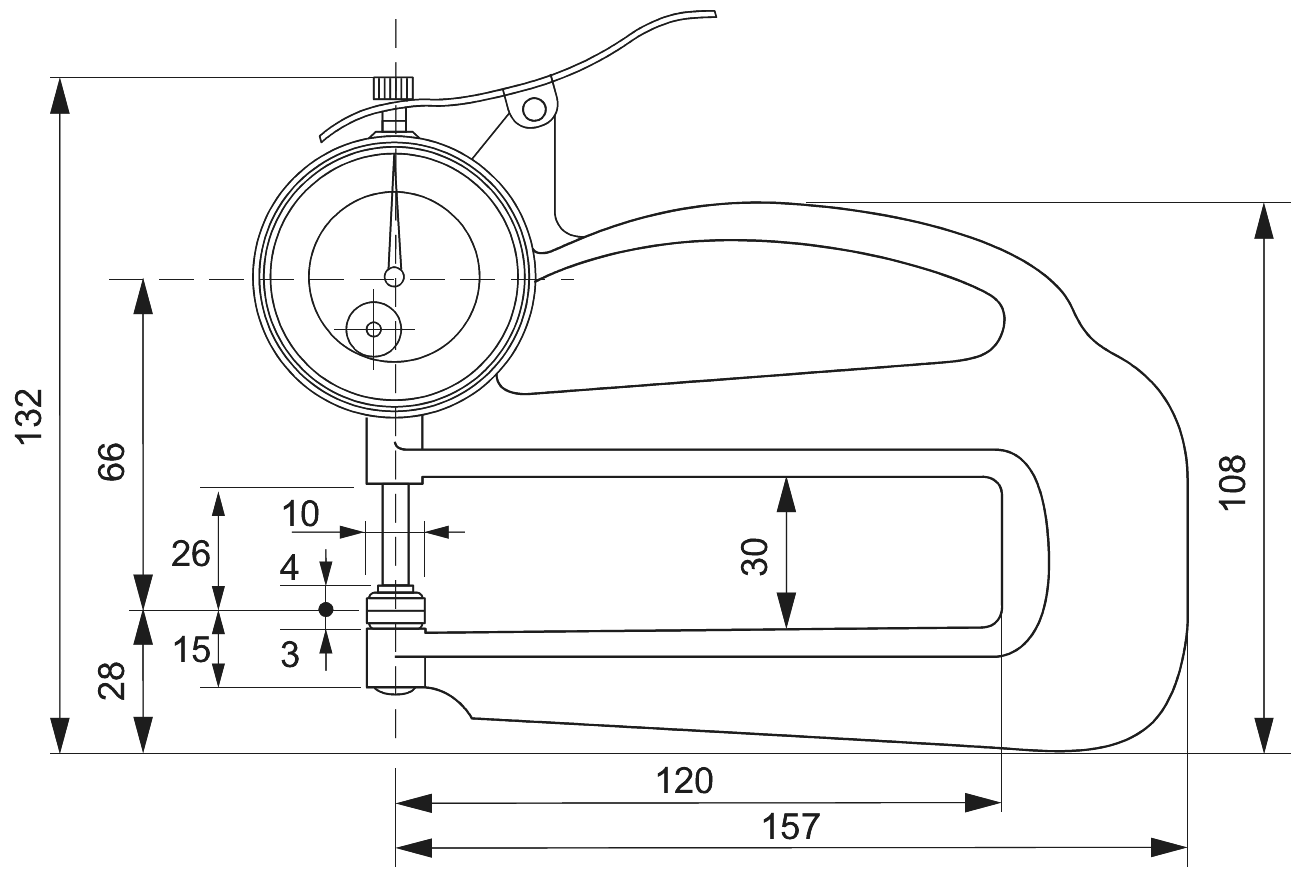

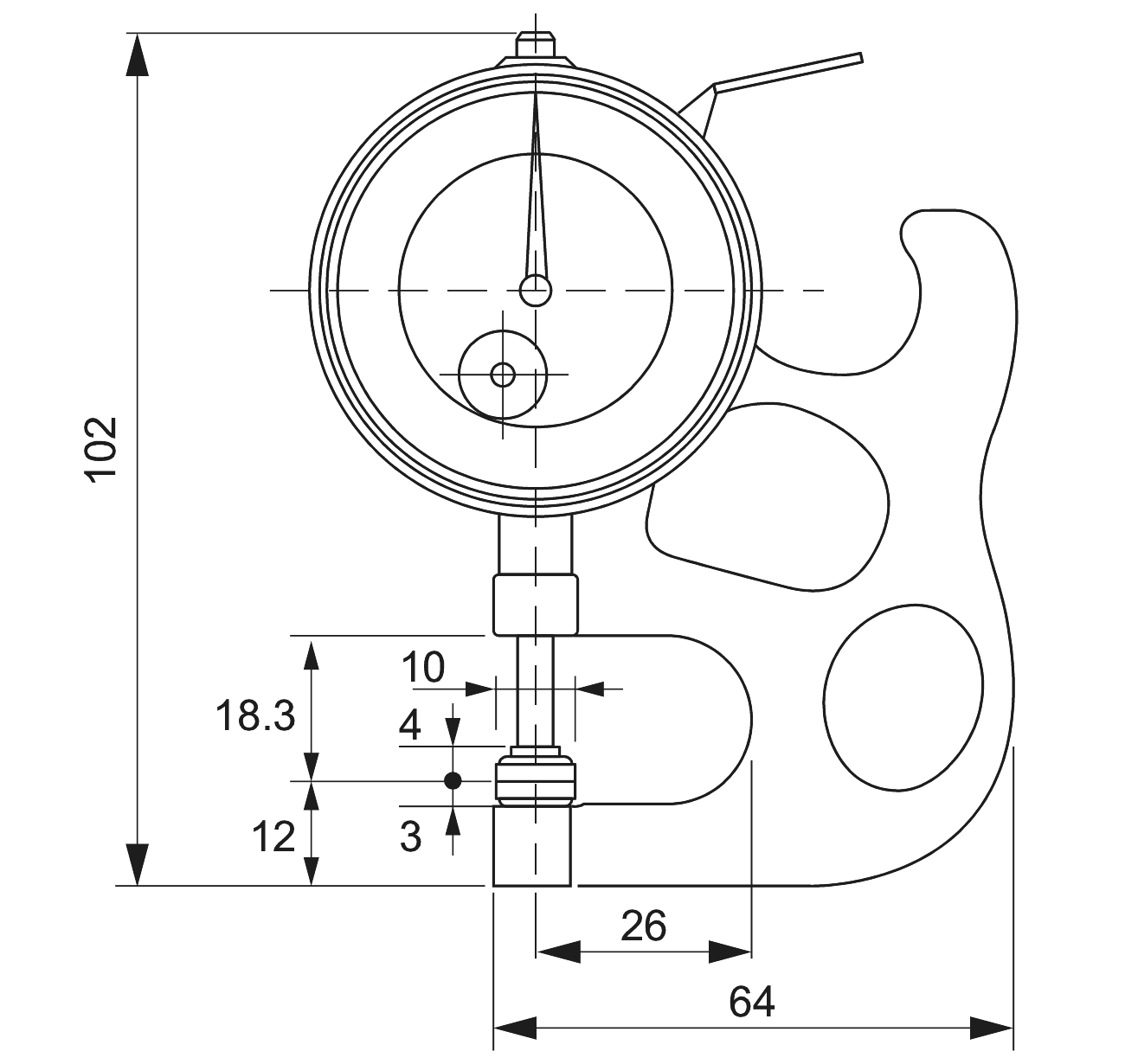

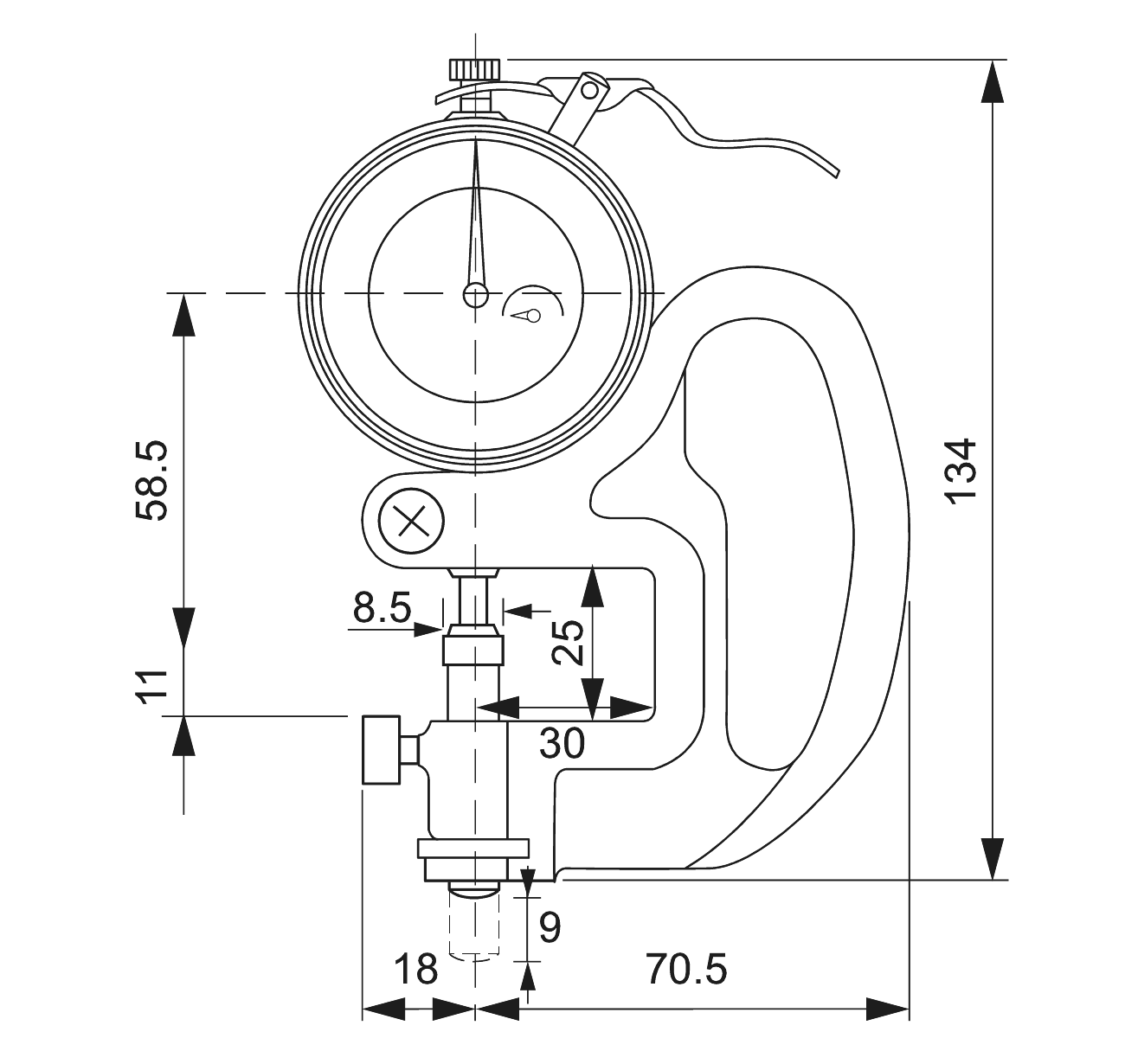

Drawings
Variations
Code
Supplier Item
Range mm
Arch mm
Accuracy mm
Resolution mm
Measuring force N
BB3900126
Supplier Item
SM-112
Range mm
0 ÷ 10
Arch mm
26
Accuracy mm
± 0,017
Resolution mm
0,01
Measuring force N
2,3
BB3900130
Supplier Item
SM-528
Range mm
0 ÷ 20
Arch mm
30
Accuracy mm
± 0,025
Resolution mm
0,01
Measuring force N
3,5
BB3900145
Supplier Item
SM-130
Range mm
0 ÷ 50 (*1)
Arch mm
45
Accuracy mm
± 0,030
Resolution mm
0,01
Measuring force N
2,3
BB39000130
Supplier Item
SM-1201
Range mm
0 ÷ 10 (*2)
Arch mm
30
Accuracy mm
± 0,003
Resolution mm
0,001
Measuring force N
1,5
BB39001120
Supplier Item
SM-114
Range mm
0 ÷ 10
Arch mm
120
Accuracy mm
± 0,017
Resolution mm
0,01
Measuring force N
2,3
