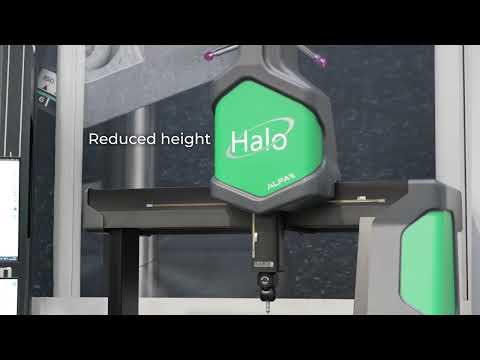

Automatic 3D measuring machine ALPA HALO
Characteristics- Belt drive system for X-Y-Z axes
- Fast and smooth movements
- Accuracy better than 1.8 microns
- Y-axis measuring range 1000 to 2000 mm
- Brushless motors with silent and smooth motion
- Optimised structural design
- Friction-free air bearings
- Laser mapping for better accuracy
- Available with different head/probe configurations
- Granite top
- Aberlink 3D software and magnetic joystick
- Free software upgrade
Drawings
Variations
Code
Supplier Item
Dimensions X - Y - Z mm
Axis travel X - Y - Z mm
Accuracy µm
Encoder resolution µm
Operating temperature °C
Reference temperature °C
Max. traverse speed mm/s
Acceleration mm/s²
Air consumption l/min - (cfm)
Pressure bar - (psi)
Load capacity kg
Movement
EAN13 Code
LA1611000HA
Supplier Item
HA-10-SG-PCM
Dimensions X - Y - Z mm
1403 x 1530 x 2503
Axis travel X - Y - Z mm
800 x 1000 x 600
Accuracy µm
(2.1 + 0.4 L/100) TP20 (2.0 + 0.4 L/100) TP200 (1.8 + 0.4 L/100) SP25M
Encoder resolution µm
0,1
Operating temperature °C
5 - 45
Reference temperature °C
18 - 22
Max. traverse speed mm/s
1020
Acceleration mm/s²
1020
Air consumption l/min - (cfm)
100 - (3.53)
Pressure bar - (psi)
7 - (100)
Load capacity kg
1000
Movement
Belt drive
EAN13 Code
2000000388076
LA1611200HA
Supplier Item
HA-12-SG-PCM
Dimensions X - Y - Z mm
1603 x 1830 x 2987
Axis travel X - Y - Z mm
1000 x 1200 x 800
Accuracy µm
(2.1 + 0.4 L/100) TP20 (2.0 + 0.4 L/100) TP200 (1.8 + 0.4 L/100) SP25M
Encoder resolution µm
0,1
Operating temperature °C
5 - 45
Reference temperature °C
18 - 22
Max. traverse speed mm/s
1020
Acceleration mm/s²
1020
Air consumption l/min - (cfm)
100 - (3.53)
Pressure bar - (psi)
7 - (100)
Load capacity kg
1000
Movement
Belt drive
EAN13 Code
2000000392264
LA1611600HA
Supplier Item
HA-16-SG-PCM
Dimensions X - Y - Z mm
1403 x 2130 x 2503
Axis travel X - Y - Z mm
800 x 1600 x 600
Accuracy µm
(2.1 + 0.4 L/100) TP20 (2.0 + 0.4 L/100) TP200 (1.8 + 0.4 L/100) SP25M
Encoder resolution µm
0,1
Operating temperature °C
5 - 45
Reference temperature °C
18 - 22
Max. traverse speed mm/s
1020
Acceleration mm/s²
1020
Air consumption l/min - (cfm)
100 - (3.53)
Pressure bar - (psi)
7 - (100)
Load capacity kg
1000
Movement
Belt drive
EAN13 Code
2000000390772
LA1612000HA
Supplier Item
HA-20-SG-PCM
Dimensions X - Y - Z mm
1603 x 2630 x 3037
Axis travel X - Y - Z mm
1000 x 2000 x 800
Accuracy µm
(2.1 + 0.4 L/100) TP20 (2.0 + 0.4 L/100) TP200 (1.8 + 0.4 L/100) SP25M
Encoder resolution µm
0,1
Operating temperature °C
5 - 45
Reference temperature °C
18 - 22
Max. traverse speed mm/s
1020
Acceleration mm/s²
1020
Air consumption l/min - (cfm)
100 - (3.53)
Pressure bar - (psi)
7 - (100)
Load capacity kg
1000
Movement
Belt drive
EAN13 Code
2000000392271
