Digital slide caliper for internal/external grooves with preset IP67 ALPA AA084

Category: SKU: AA084
Characteristics
  • Accuracy ± 0.02 mm (250)
  • Resolution 0.01 mm
  • IP67 protection
  • High degree of protection against dust and liquids
  • Hardened stainless steel structure
  • Slider with locking screw
  • Data output
  • Ergonomic design for ease of use
  • Interchangeable tips
  • Article AA084250 supplied with pair of hardened pins Ø 2.5 mm
  • Articles AA084350 and AA084450 supplied with pair of hardened pins Ø 3.5 mm
Description
  • LCD Display
  • SIS: Sylvac inductive system (patented)
  • mm/inch conversion
  • Inspection report with declaration of conformity
  • Supplied with wooden case
  • Properties

    • Protection: Zero
    • Height of digits: Preset
    • Accuracy: ABS
    • Resolution: Sleep
    • Weight: Hold
    • ON/OFF: 
    • Zero: 
    • ABS: 
    • Preset: 
    • Sleep: 
    • Hold: 

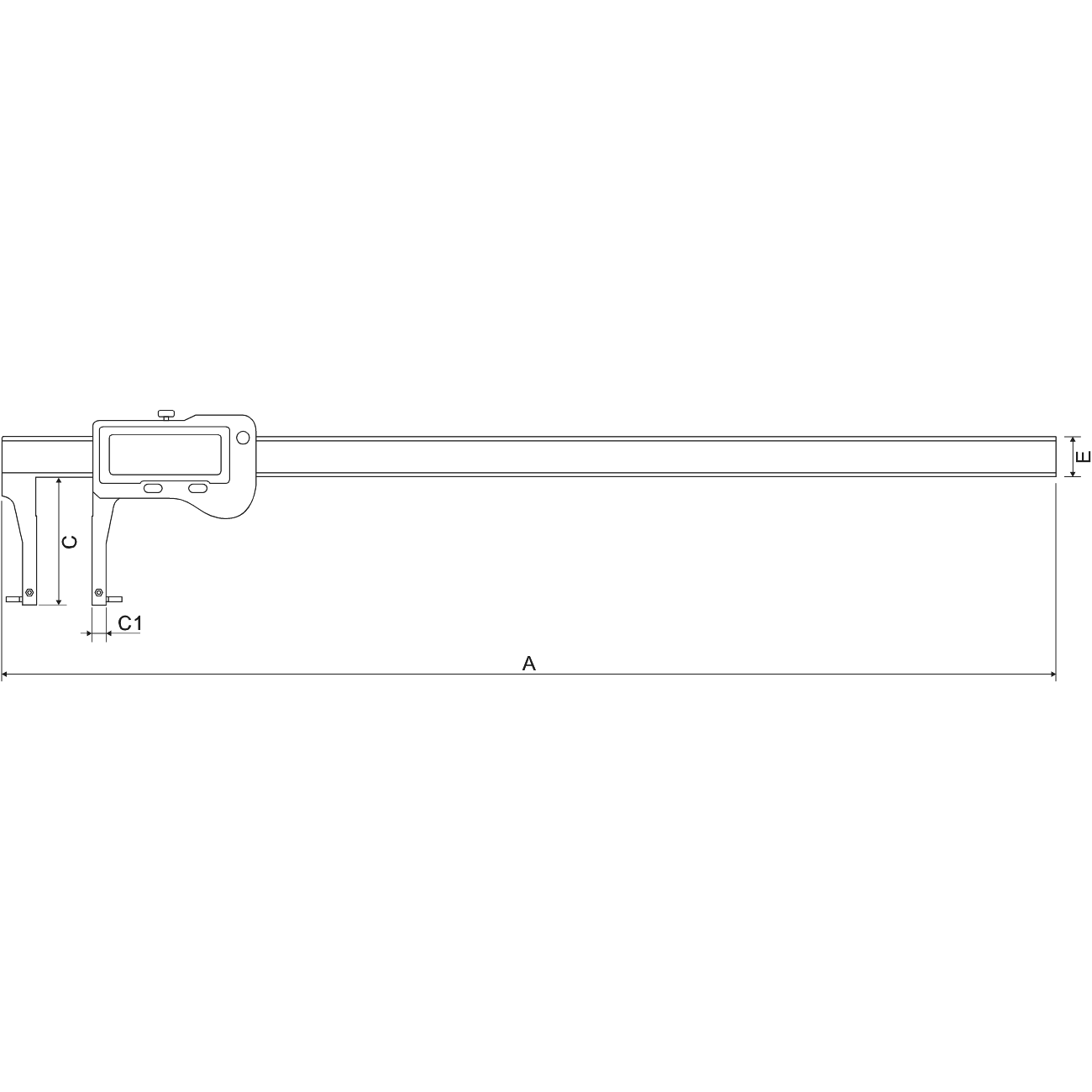

    Drawings
    Variations
    Code
    Int. / Ext. range mm
    A mm
    C mm
    E mm
    AA084250
    Int. / Ext. range mm
    24 ÷ 250 / 0 ÷ 210
    A mm
    332
    C mm
    52 / 61
    E mm
    16,5 x 4,5
    260
    AA084350
    Int. / Ext. range mm
    44 ÷ 400 / 0 ÷ 320
    A mm
    470
    C mm
    96 / 100
    E mm
    17 x 5
    560
    AA084450
    Int. / Ext. range mm
    44 ÷ 500 / 0 ÷ 420
    A mm
    570
    C mm
    96 / 100
    E mm
    17 x 5
    650
