Digital slide caliper IP67 with preset ALPA AA054
Characteristics- Accuracy ± 0.02 mm (200)
- Resolution 0.01 mm
- IP67 protection
- Electronics protected against dust and brief immersion in water
- Hardened stainless steel structure
- Slider with locking screw
- Data output
- Ergonomic design for ease of use
Description
LCD Display
SIS: Sylvac inductive system (patented)
mm/inch conversion
Inspection report with declaration of conformity
Supplied with wooden case
Function
- Zero
- Preset
- ABS
- Sleep
- Hold
- mm/inch

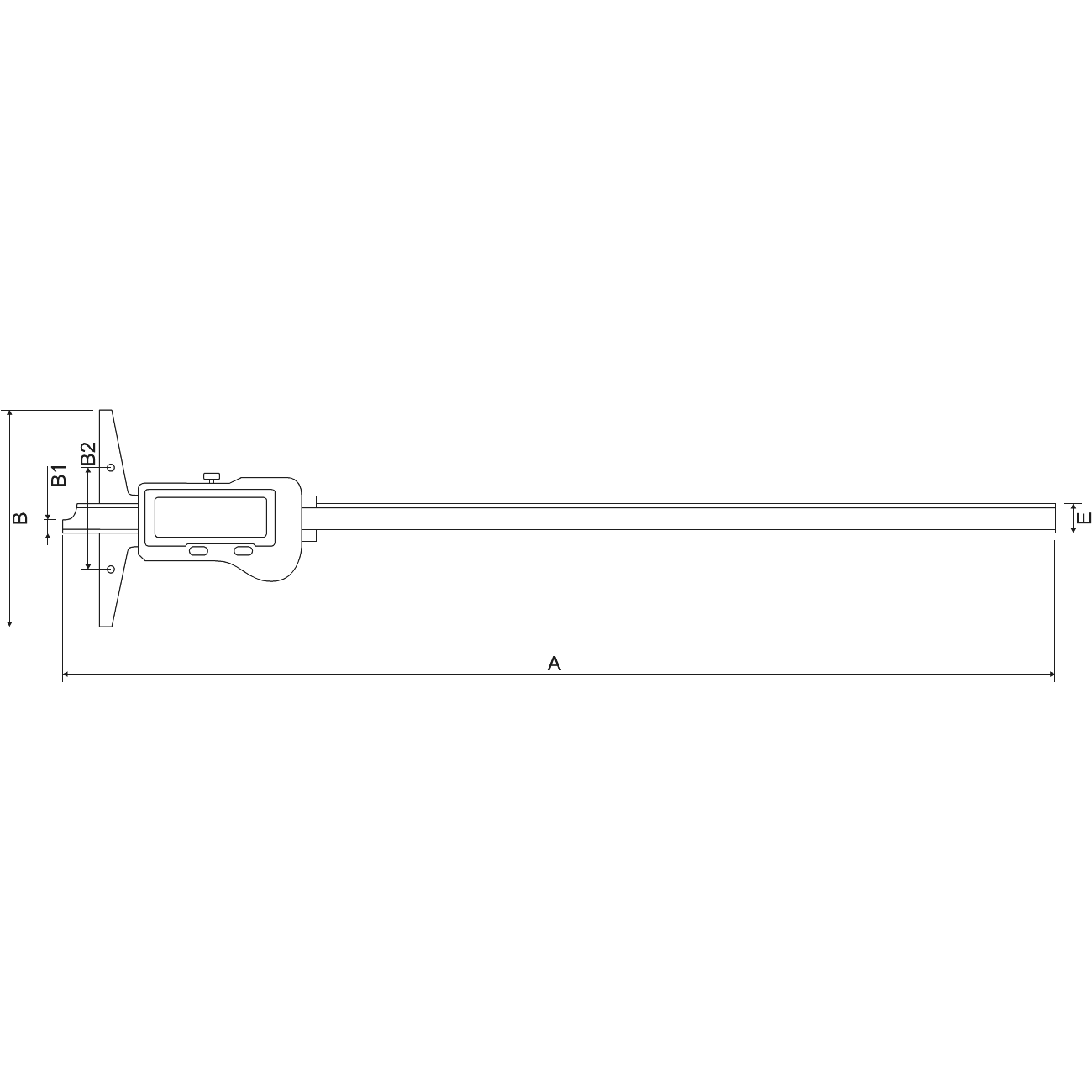

Drawings
Variations
Code
Range mm
A mm
B mm
B1 mm
B2 mm
E mm
Weight g
Certificazione
AA054200
Range mm
0 ÷ 200
A mm
310
B mm
105 x 10
B1 mm
5,5
B2 mm
70
E mm
70
Weight g
295
Certificazione
AA054300
Range mm
0 ÷ 300
A mm
410
B mm
150 x 12
B1 mm
5,5
B2 mm
70
E mm
70
Weight g
330
Certificazione
AA054400
Range mm
0 ÷ 400
A mm
510
B mm
150 x 12
B1 mm
5,5
B2 mm
70
E mm
70
Weight g
350
Certificazione
AA054500
Range mm
0 ÷ 500
A mm
610
B mm
150 x 12
B1 mm
5,5
B2 mm
70
E mm
70
Weight g
390
Certificazione
AA054600
Range mm
0 ÷ 600
A mm
710
B mm
150 x 12
B1 mm
5,5
B2 mm
70
E mm
70
Weight g
430
Certificazione
