Digital slide caliper IP67 with preset ALPA AA059

Category: SKU: AA059
Characteristics
  • Accuracy ± 0.02 mm (300)
  • Resolution 0.01 mm
  • IP67 protection
  • Electronics protected against dust and brief immersion in water
  • Hardened stainless steel structure
  • Slider with locking screw
  • Data output
  • Ergonomic design for ease of use
  • Interchangeable push/pull tip on the same plane
Description
  • LCD Display
  • SIS: Sylvac inductive system (patented)
  • mm/inch conversion
  • Inspection report with declaration of conformity
  • Supplied with wooden case
  • Properties

    • Protection: Zero
    • Height of digits: Preset
    • Accuracy: ABS
    • Resolution: Sleep
    • ON/OFF: 
    • Zero: 
    • ABS: 
    • Preset: 
    • Sleep: 
    • Hold: 

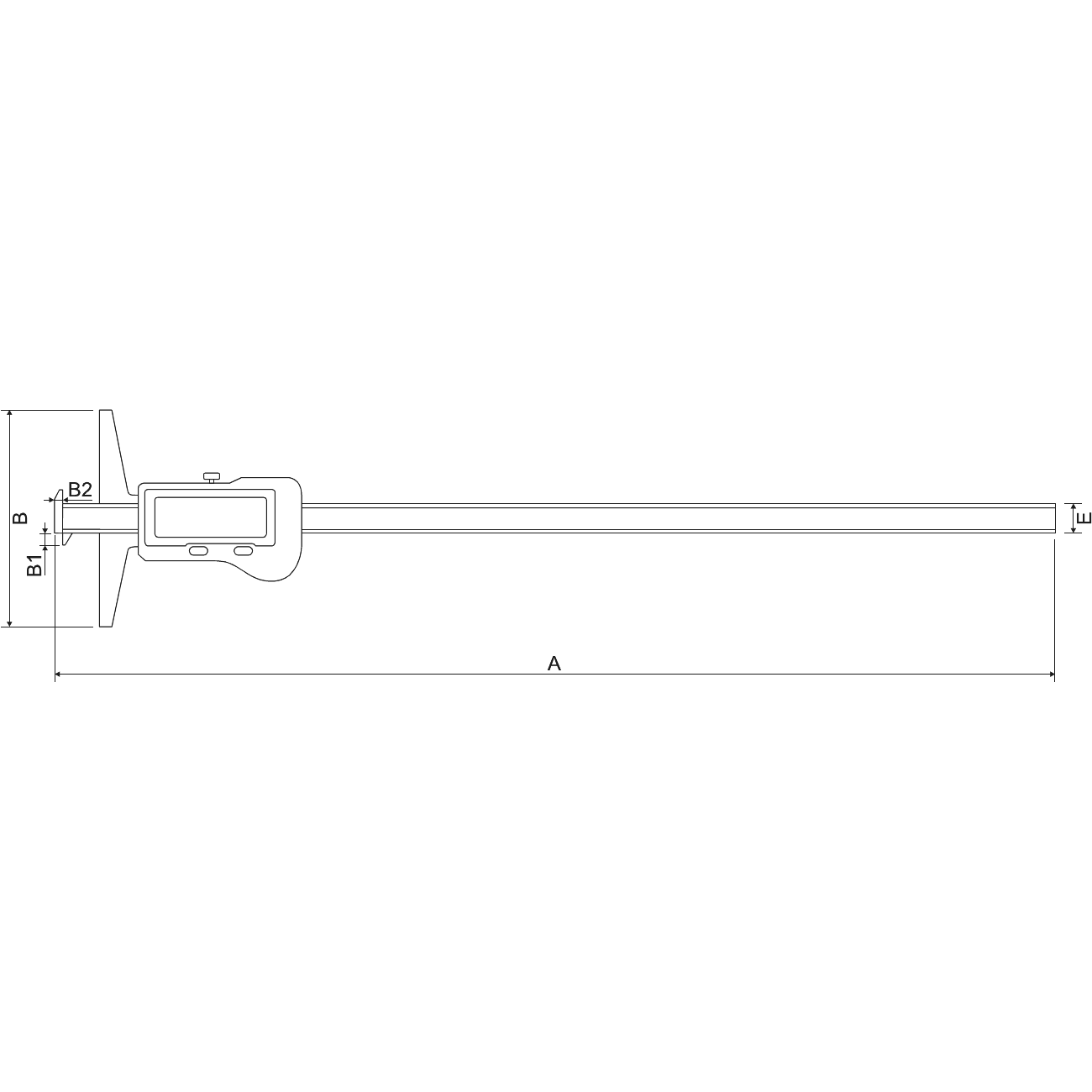

    Drawings
    Variations
    Code
    Range mm
    A mm
    B mm
    B1 mm
    B2 mm
    E mm
    AA059300
    Range mm
    0 ÷ 300
    A mm
    410
    B mm
    12
    B1 mm
    150
    B2 mm
    12 x 4
    E mm
    430
    AA059400
    Range mm
    0 ÷ 400
    A mm
    510
    B mm
    12
    B1 mm
    150
    B2 mm
    12 x 4
    E mm
    460
    AA059500
    Range mm
    0 ÷ 500
    A mm
    610
    B mm
    12
    B1 mm
    150
    B2 mm
    12 x 4
    E mm
    500
    AA059600
    Range mm
    0 ÷ 600
    A mm
    710
    B mm
    12
    B1 mm
    150
    B2 mm
    12 x 4
    E mm
    530
