Digital slide caliper with preset ALPA AA021

Category: SKU: AA021
Characteristics
  • Accuracy ± 0.03 mm
  • Resolution 0.01 mm
  • IP40 protection
  • Hardened stainless steel structure
  • Slider with locking screw
  • On/off button
  • Dedicated buttons for preset functions
Description

– LCD display with big digits
– Hardened stainless steel
– Standard depth rod (flat)

Properties

  • Protection: Zero
  • Height of digits: Preset
  • Accuracy: ± 0,03
  • Resolution: 0,01
  • ON/OFF: 
  • Zero: 
  • ABS: -
  • Preset: 
  • Sleep: -
  • Hold: -

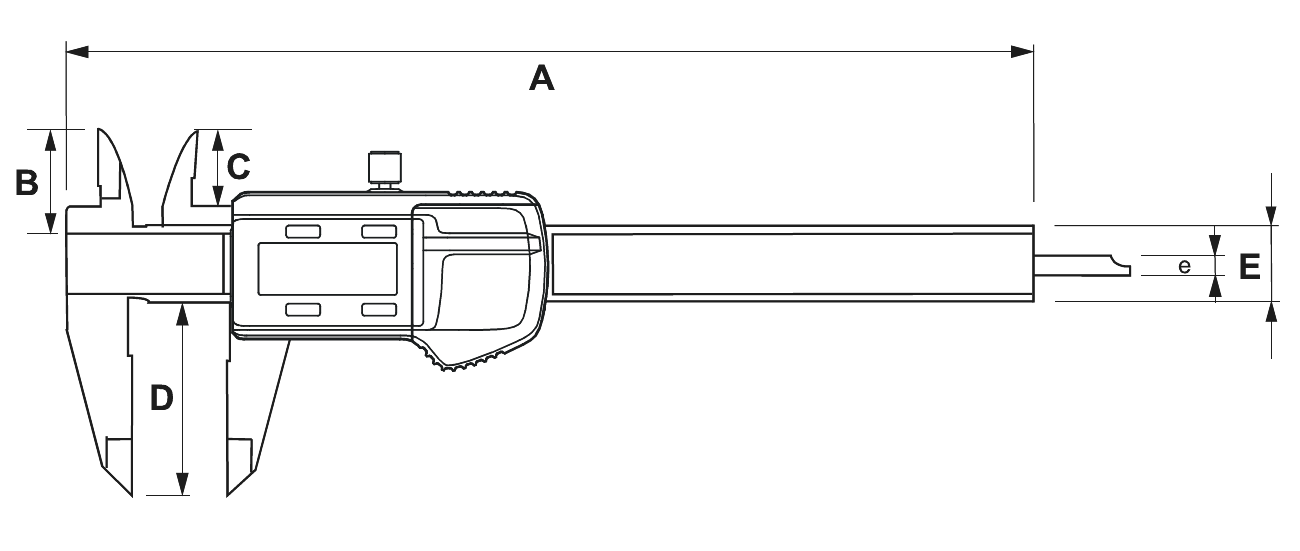

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
E mm
E1 mm
AA021100
Range mm
0 ÷ 100
A mm
186
B mm
16.5
C mm
30
E mm
16
E1 mm
3.7 x 1.3
150
AA021150
Range mm
0 ÷ 150
A mm
186
B mm
16.5
C mm
40
E mm
16
E1 mm
3.7 x 1.3
170
AA021200
Range mm
0 ÷ 200
A mm
285
B mm
19.5
C mm
50
E mm
16
E1 mm
3.7 x 1.3
200
AA021300
Range mm
0 ÷ 300
A mm
400
B mm
21.5
C mm
50
E mm
16
E1 mm
3.7 x 1.3
270
