Digital slide depth caliper with electronics IP54 ALPA AA101
Characteristics- Accuracy ± 0,03 mm. Resolution 0,01 mm.
Vernier with loking screw system, (ON/OFF) button, incremental measuring and zero-setting at any position. Absolute origin measuring function.
Properties
- Protection: 54
- Height of digits: 9
- Accuracy: ± 0,03
- Resolution: 0,01
- Weight: 200 (200 mm) 270 (300 mm)
- ON/OFF:
- Zero:
- ABS:
- Preset: -
- Sleep: -
- Hold: -

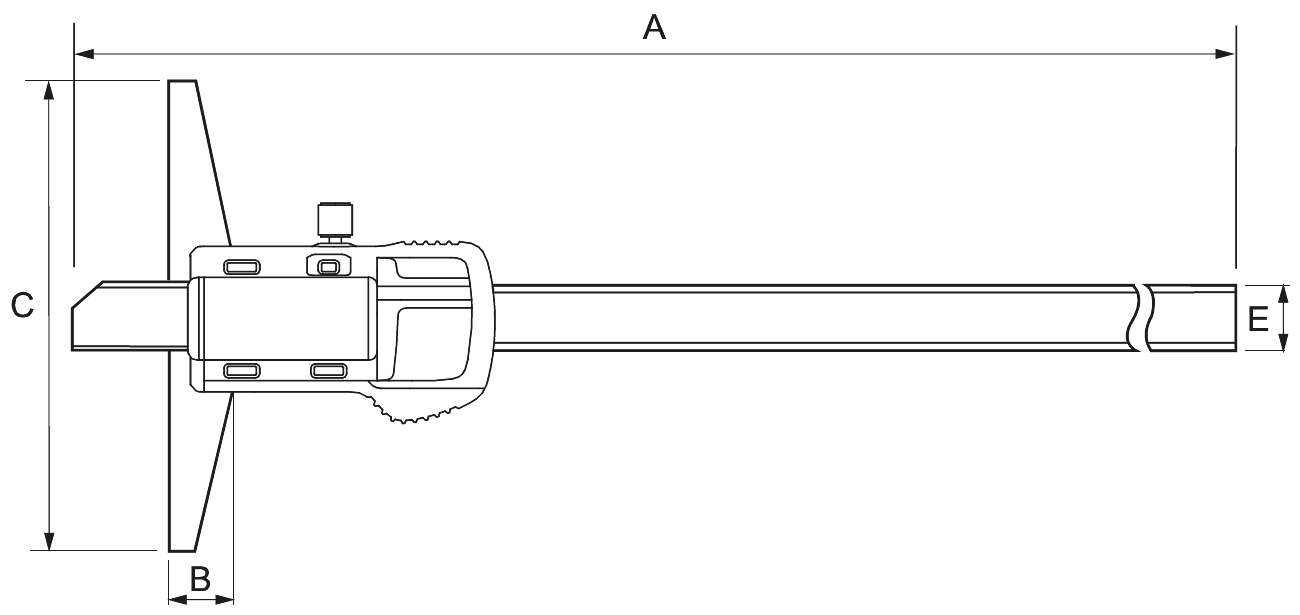

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
E mm
AA101200
Range mm
0 ÷ 200
A mm
285
B mm
11
C mm
100
E mm
14,5
200
AA101300
Range mm
0 ÷ 300
A mm
390
B mm
13,5
C mm
150
E mm
14,5
270
