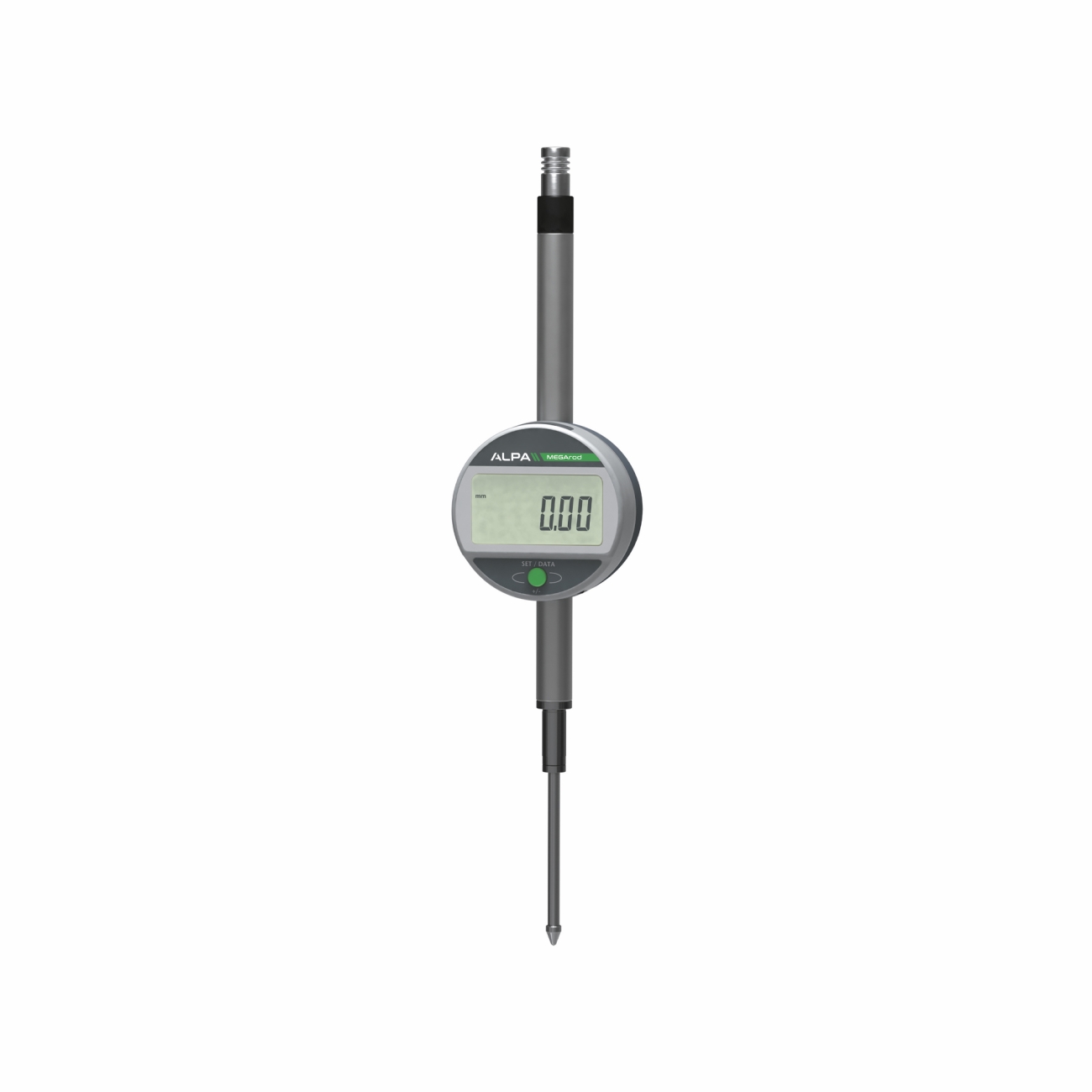

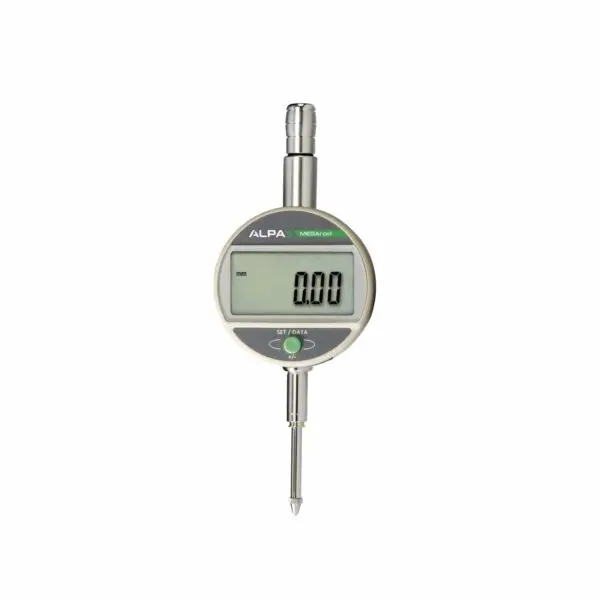

Digital dial gauge ALPA MEGAROD CA018

Category: SKU: CA018
Characteristics
  • Tough construction, water and coolant resistant. Technology with configurable menus. Automatic wake-up and sleeping mode, absolute system. Fixing and space envelope ø 8 h 6 mm, interchangeable M2,5 probe (DIN878).
Description

– Lithium battery
– Instruction manual
– Calibration certificate for instruments 0.001 mm

Properties

  • Repeatability: 2
  • Slider speed: 1,7
  • Display refresh rate: 10 mis/s
  • Measuring system: Sylvac Inductive System (patented)
  • Power supply: 3V / 220 mAh
  • Mean power consumption: 73
  • Mean battery life: 8'000
  • Working temperature: from + 5° to + 40°C / from + 41° to + 104°F
  • ON/OFF: 
  • Zero: 
  • ABS: 
  • Preset: 
  • Sleep: 
  • Hold: 

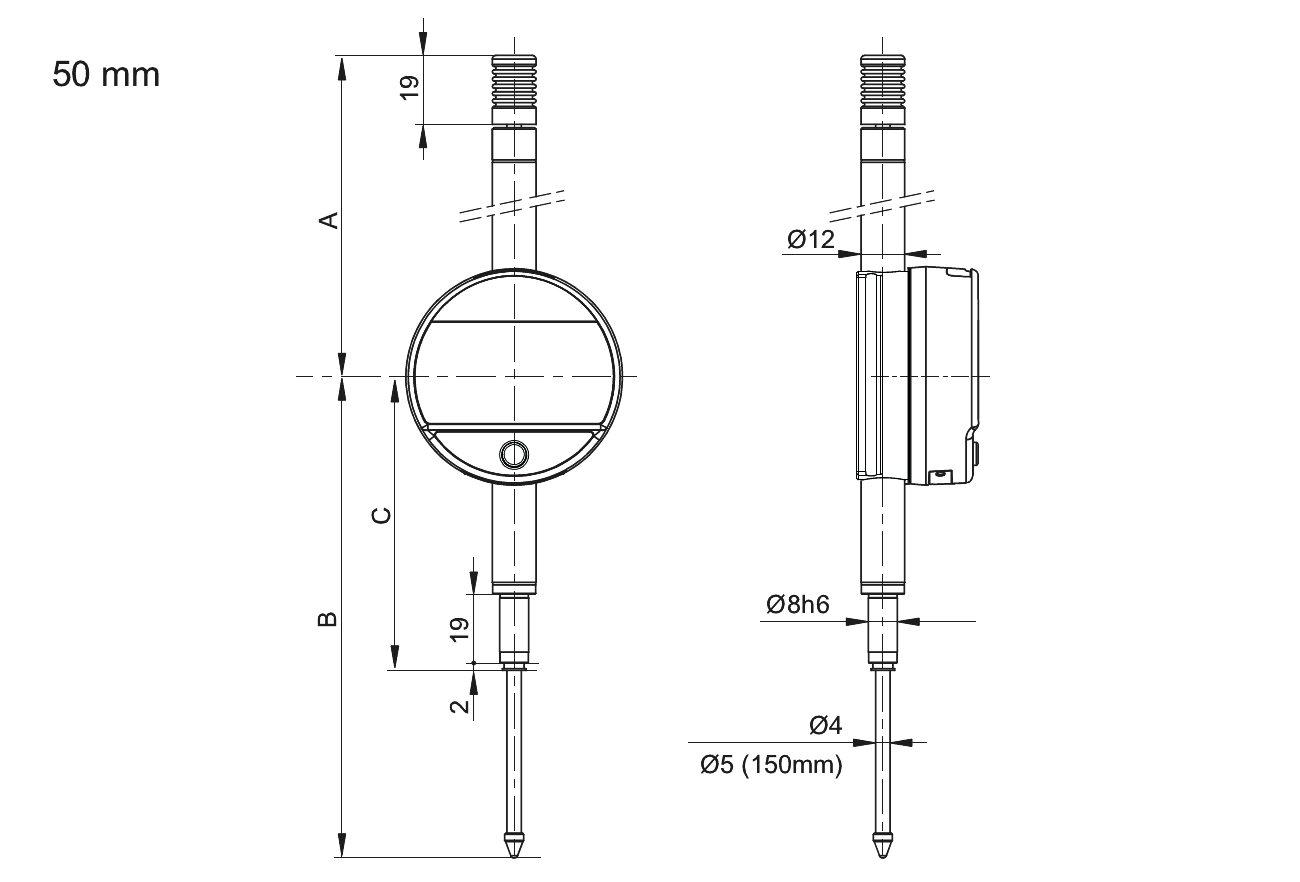

Drawings
Variations
Code
Range mm
Resolution mm
Accuracy µm
A mm
B mm
C mm
CA01812,5C
Range mm
0 ÷ 12,5
Resolution mm
0,01
Accuracy µm
10 (± digit)
A mm
56,7
B mm
66,1
C mm
36,6
107
CA01812,5M
Range mm
0 ÷ 12,5
Resolution mm
0,001
Accuracy µm
4
A mm
56,7
B mm
66,1
C mm
36,6
107
CA01825C
Range mm
0 ÷ 25
Resolution mm
0,01
Accuracy µm
10 (± digit)
A mm
69,4
B mm
79
C mm
49,4
111
CA01825M
Range mm
0 ÷ 25
Resolution mm
0,001
Accuracy µm
5
A mm
69,4
B mm
79
C mm
49,4
111
CA01850C
Range mm
0 ÷ 50
Resolution mm
0,01
Accuracy µm
20 (± digit)
A mm
121
B mm
142
C mm
88
149
CA01850M
Range mm
0 ÷ 50
Resolution mm
0,001
Accuracy µm
7
A mm
121
B mm
142
C mm
88
149
