Characteristics
Function
- Zero
- Preset
- ABS
- Sleep
- Hold
- mm/inch

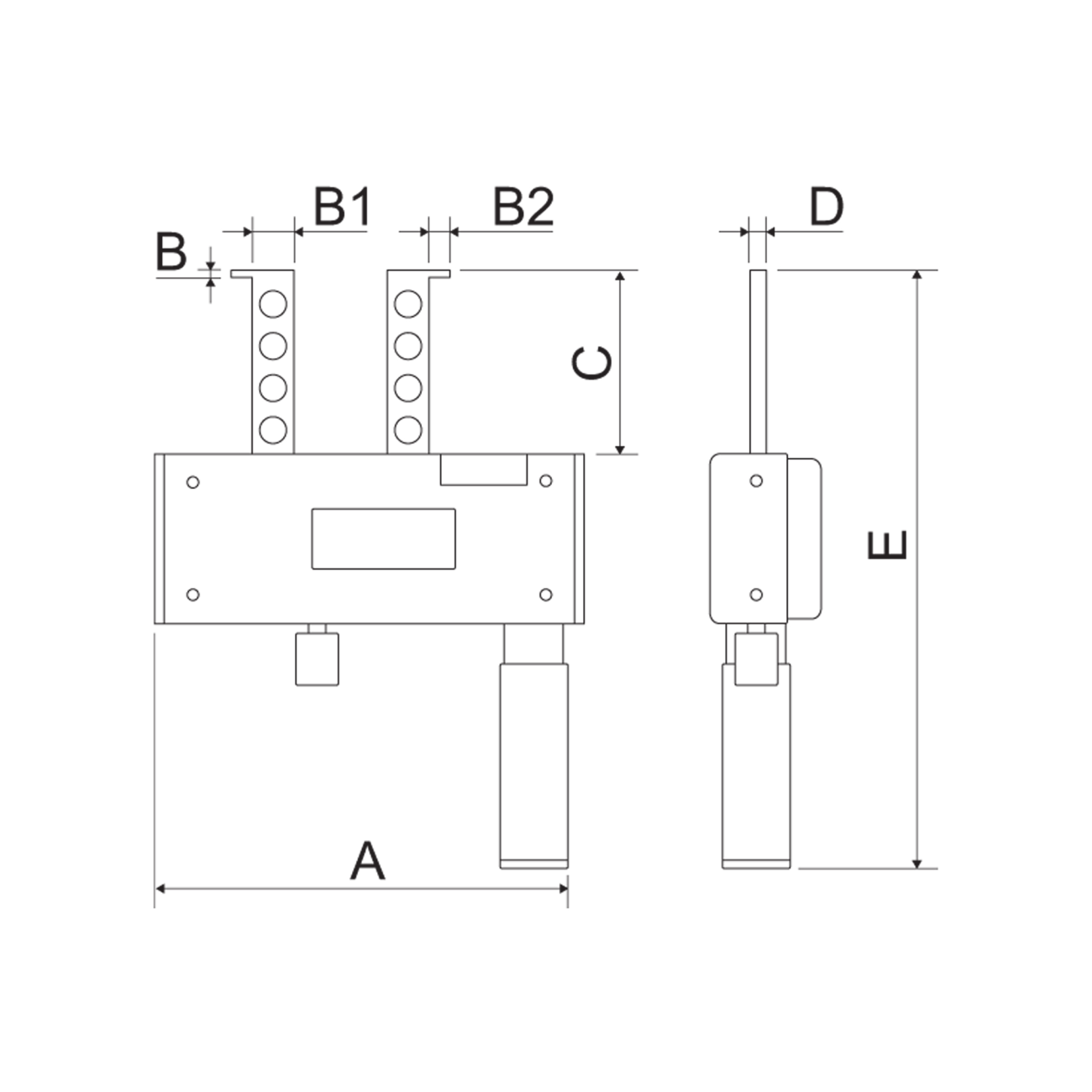

Drawings
Variations
Code
Range mm
Max depth mm
Accuracy mm
A mm
B mm
B1 mm
B2 mm
C mm
D mm
E mm
BA35010080
Range mm
26 ÷ 100
Max depth mm
80
Accuracy mm
± 0,01
A mm
103
B mm
4,7
B1 mm
10
B2 mm
5-30
C mm
80
D mm
4,5
E mm
180
BA350100120
Range mm
26 ÷ 100
Max depth mm
120
Accuracy mm
± 0,01
A mm
103
B mm
4,7
B1 mm
10
B2 mm
5-30
C mm
120
D mm
4,5
E mm
220
BA350150120
Range mm
75 ÷ 150
Max depth mm
120
Accuracy mm
± 0,01
A mm
103
B mm
4,7
B1 mm
10
B2 mm
5-30
C mm
120
D mm
4,5
E mm
220
BA350150160
Range mm
75 ÷ 150
Max depth mm
160
Accuracy mm
± 0,01
A mm
103
B mm
4,7
B1 mm
10
B2 mm
5-30
C mm
160
D mm
4,5
E mm
260
