ip67 bluetooth® digital micrometers SYLVAC BA012
Characteristics- Resolution 0.001 mm
- Data transmission via Bluetooth®
- IP67 protection
- Electronics protected against dust and brief immersion in water
- Automatic switch-on by moving the drum
- Stand-by position memory
- Fast forwarding (10 mm/revolution)
- Selectable measuring force 5N / 10N (BA01030 version)
- Non-rotating stem
- Carbide contacts
- Stem Ø 6.5 mm
Function
- Bluetooth®
- Zero
- Preset
- ABS
- Sleep
- Hold
- mm/inch

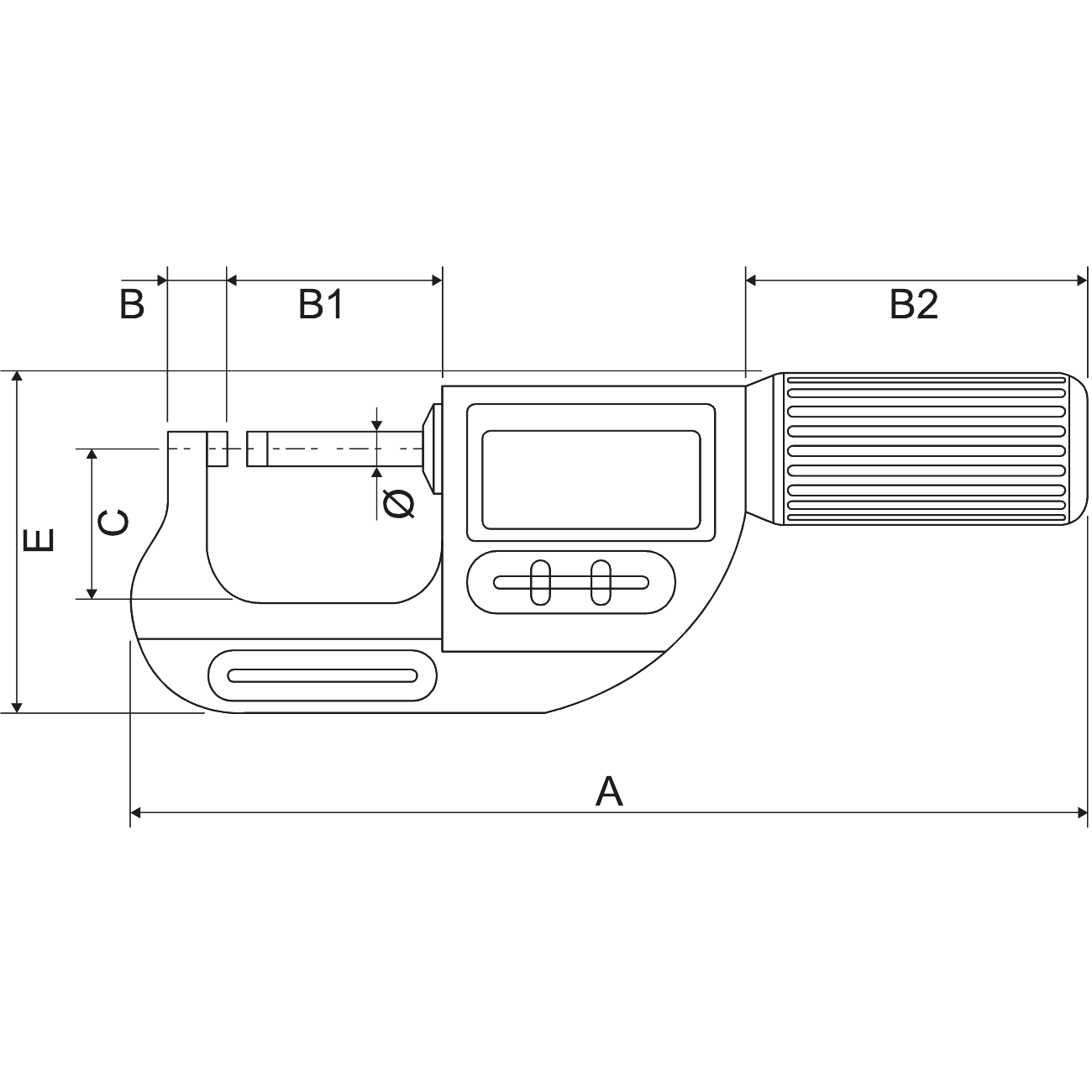

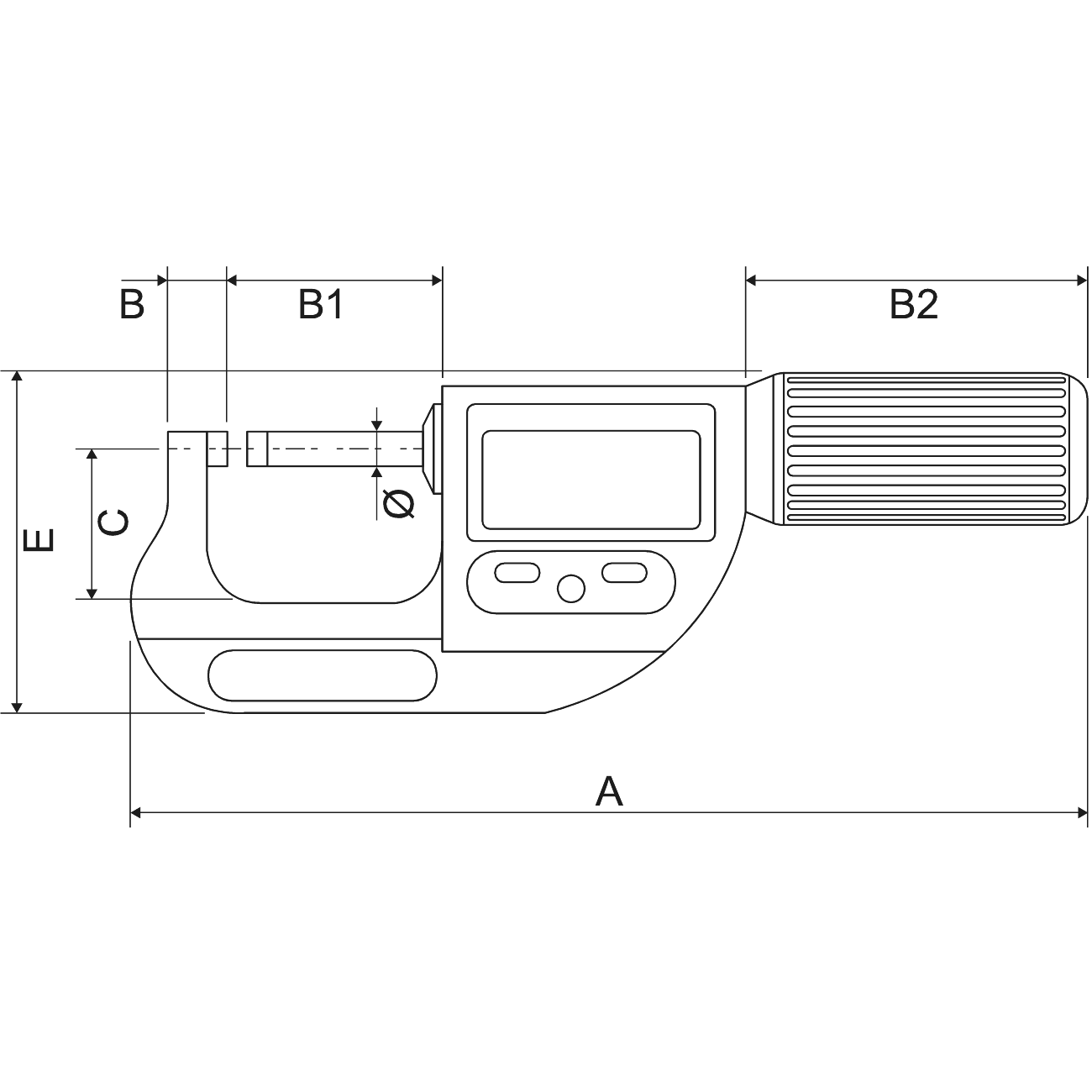

Drawings
Variations
Code
Stem
Range mm
Accuracy mm
A mm
B mm
B1 mm
B2 mm
C mm
E mm
Ø mm
BA012030BT
Stem
68
Range mm
0 ÷ 30
Accuracy mm
± 0,003
A mm
181
B mm
125
B1 mm
37,3
B2 mm
68
C mm
275
E mm
63
Ø mm
65
BA012066BT
Stem
74
Range mm
30 ÷ 66
Accuracy mm
± 0,004
A mm
230
B mm
13,5
B1 mm
73,3
B2 mm
74
C mm
43
E mm
86
Ø mm
65
BA012102BT
Stem
74
Range mm
66 ÷ 102
Accuracy mm
± 0,005
A mm
269
B mm
14,5
B1 mm
109,3
B2 mm
74
C mm
60
E mm
106
Ø mm
65
