Digital slide caliper for ring joints IP67 with preset ALPA AA080
Digital slide caliper for ring joints IP67 with preset ALPA AA080
Calibro digitale per ring joint IP67 con preset MEGAline ALPA

Digital slide caliper for ring joints IP67 with preset ALPA AA080

Category: SKU: AA080
Characteristics
  • Accuracy ± 0.03 mm
  • Resolution 0.01 mm
  • IP67 protection
  • High degree of protection against dust and liquids
  • Hardened stainless steel structure
  • Slider with locking screw
  • Data output
  • Ergonomic design for ease of use
  • Jaws 23°
Request information
Description

LCD Display
SIS: Sylvac inductive system (patented)
mm/inch conversion
Inspection report with declaration of conformity
Supplied with wooden case

Function

  • Zero
  • Preset
  • ABS
  • Sleep
  • Hold
  • mm/inch

Download the manual

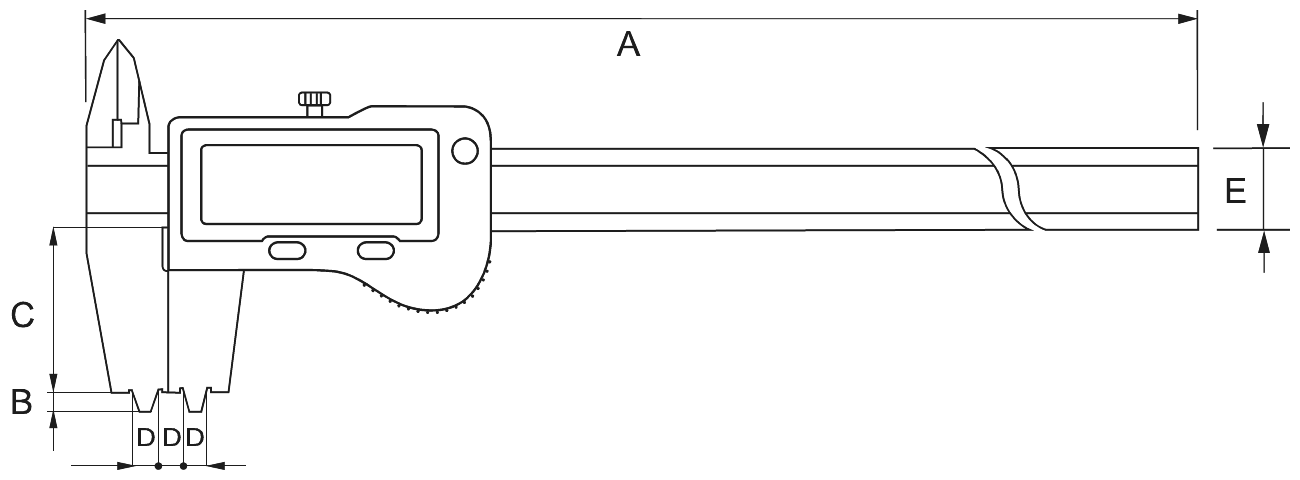

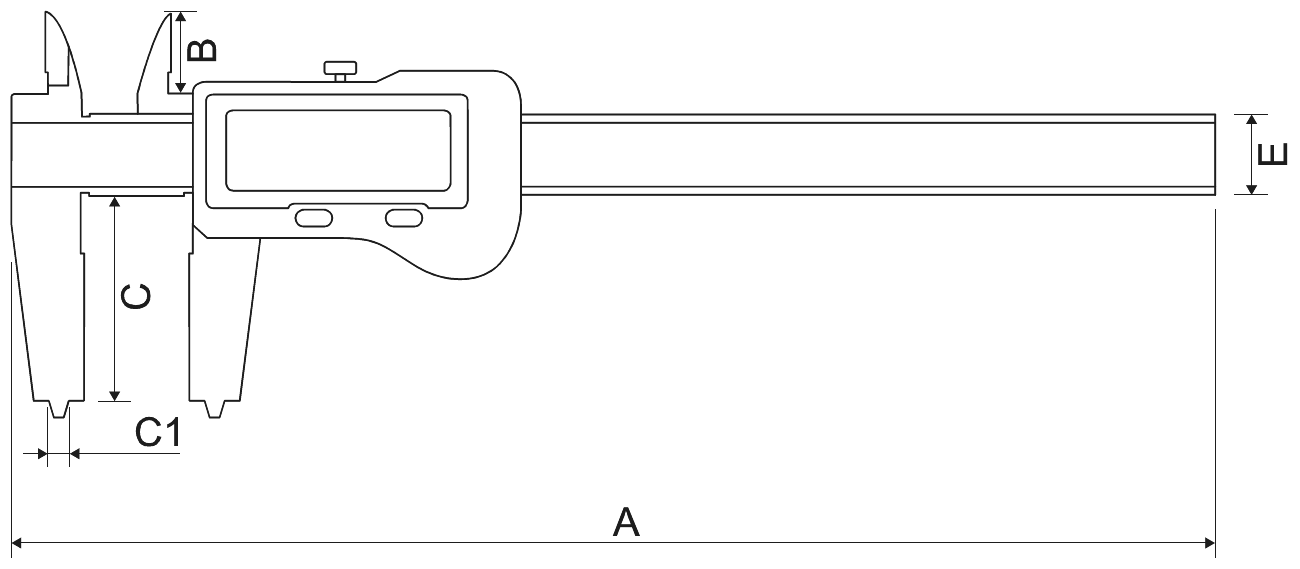

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
C1 mm
E mm
Weight g
Certificazione
AA080200
Range mm
0 ÷ 200
A mm
290
B mm
19
C mm
32
C1 mm
4
E mm
16 x 3,5
Weight g
150
Certificazione
