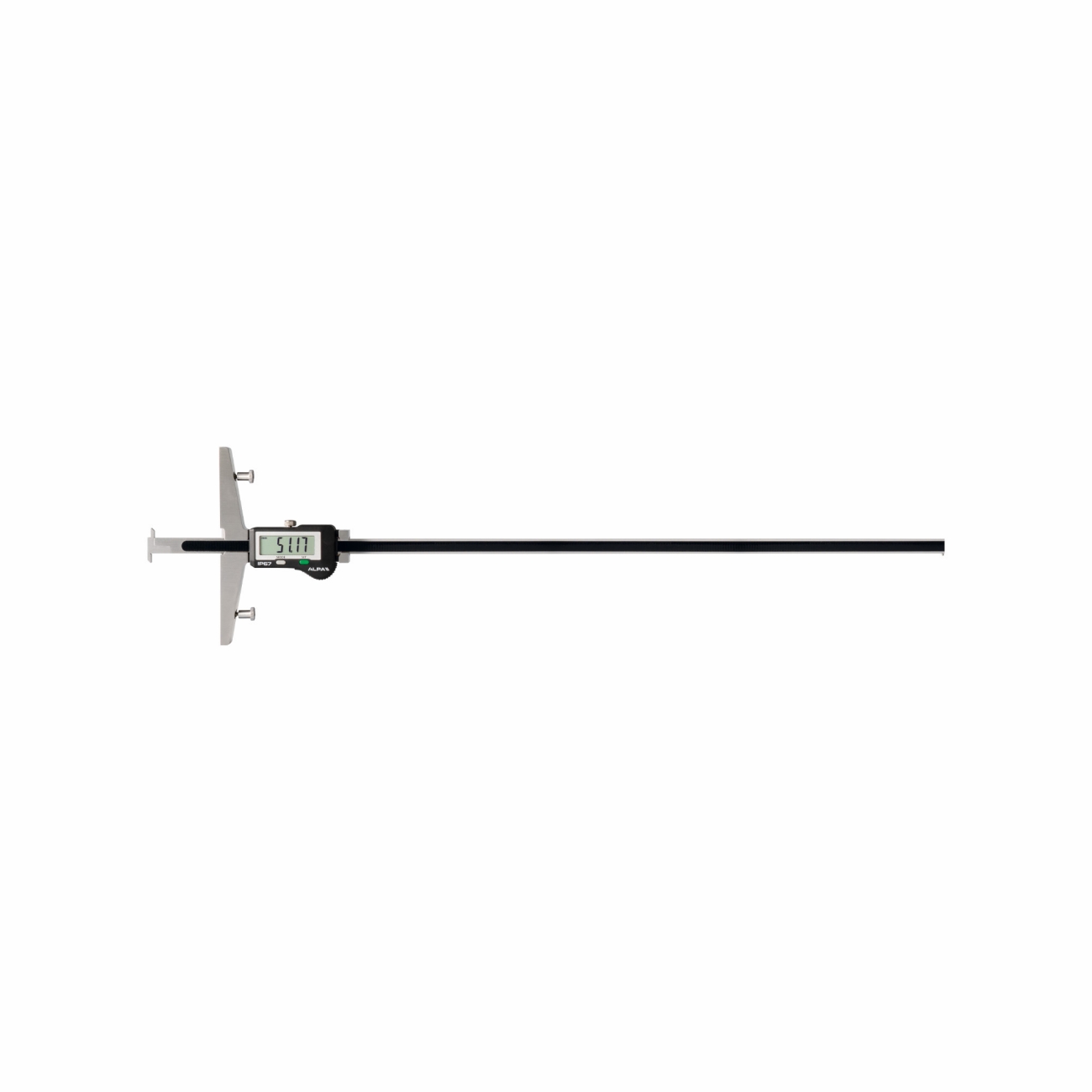

Digital slide caliper IP67 with preset ALPA AA064
Characteristics- Accuracy ± 0.03 mm (300)
- Resolution 0.01 mm
- IP67 protection
- Electronics protected against dust and brief immersion in water
- Hardened stainless steel structure
- Slider with locking screw
- Data output
- Ergonomic design for ease of use
- Interchangeable push/pull tip on the same plane
- Designed for use with mobile bridge
Description
LCD Display
SIS: Sylvac inductive system (patented)
mm/inch conversion
Inspection report with declaration of conformity
Supplied with wooden case
Function
- : Zero

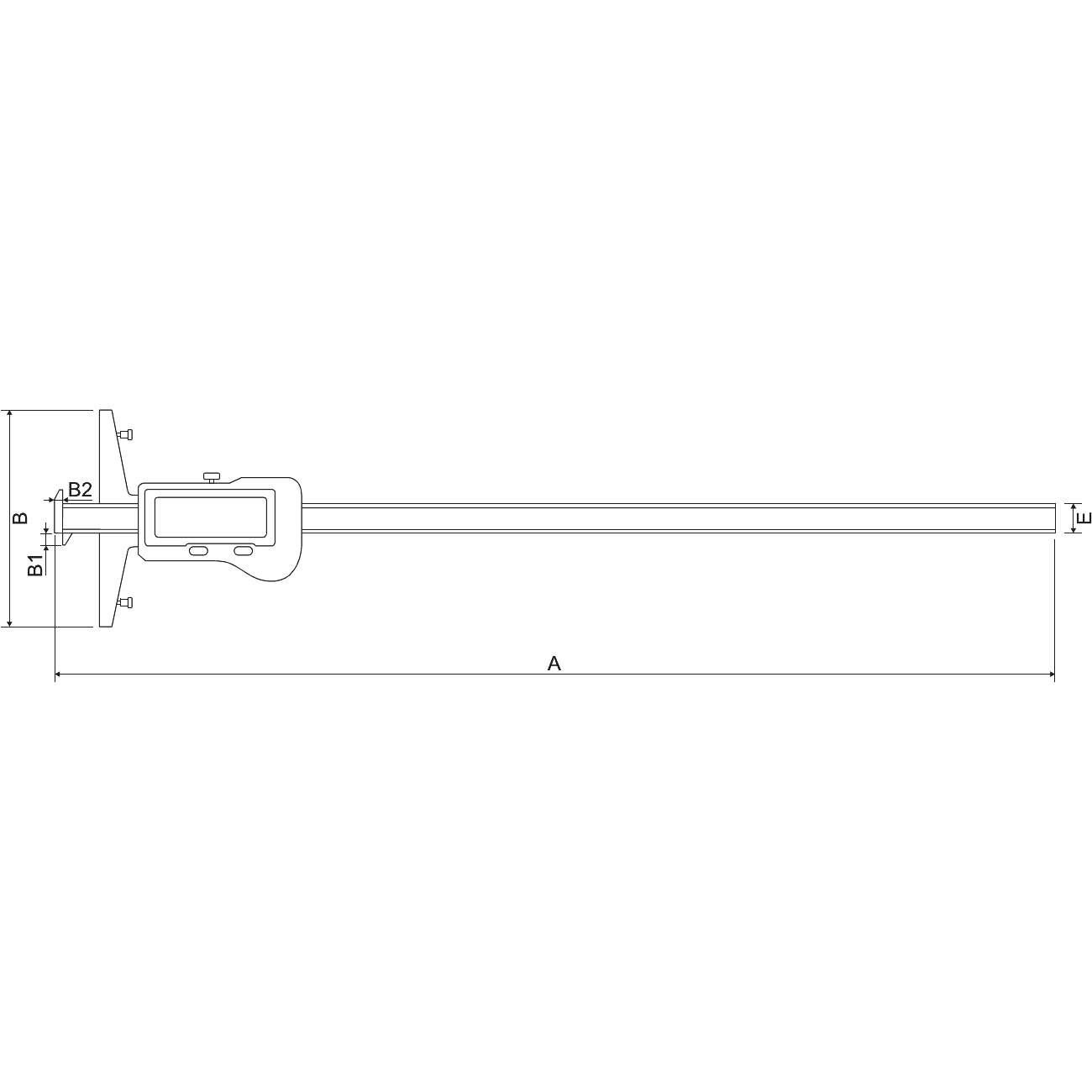

Drawings
Variations
Code
Range mm
A mm
B mm
B1 mm
B2 mm
E mm
Weight g
AA064300
Range mm
0 ÷ 300
A mm
410
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
430
AA064400
Range mm
0 ÷ 400
A mm
510
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
465
AA064500
Range mm
0 ÷ 500
A mm
610
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
495
AA064600
Range mm
0 ÷ 600
A mm
710
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
530
AA064800
Range mm
0 ÷ 800
A mm
910
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
580
AA0641000
Range mm
0 ÷ 1000
A mm
1110
B mm
150 x 12
B1 mm
7
B2 mm
2,5
E mm
12 x 4
Weight g
630
