Calibro digitale a corsoio di profondità con doppio piedino ed elettronica IP54 ALPA AA103

Digital slide depth caliper with double hook and electronics IP54 ALPA AA103

Category: SKU: AA103
Characteristics
  • Accuracy ± 0.03 mm
  • Resolution 0.01 mm
  • IP54 protection
  • Electronics protected against dust and water splashes
  • Slider with locking screw
  • On/off button
Request information
Function

  • Zero
  • ABS

Download the manual

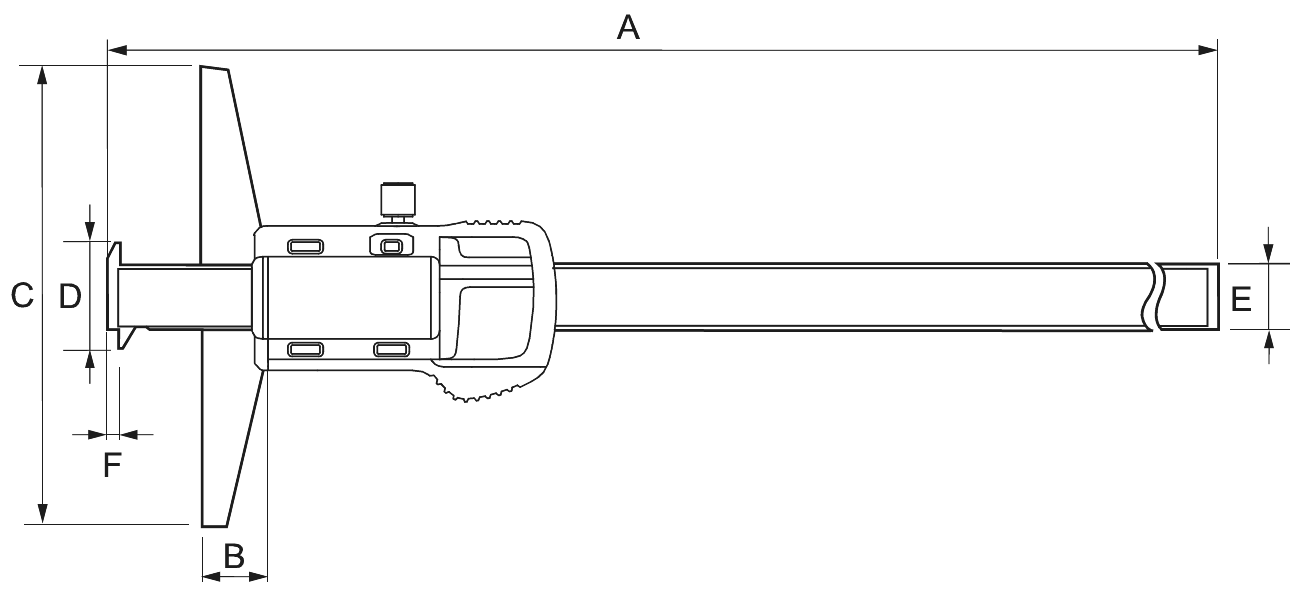

Drawings
Variations
Code
Range mm
A mm
B mm
B1 mm
B2 mm
E mm
Weight g
AA103200
Range mm
0 ÷ 200
A mm
285
B mm
100
B1 mm
4
B2 mm
4
E mm
14,5
Weight g
200
AA103300
Range mm
0 ÷ 300
A mm
390
B mm
150
B1 mm
4
B2 mm
4
E mm
14,5
Weight g
270
