Smart plug for blind holes ALPA BB355
Characteristics- To meet all customer’s needs, it has also been created the Smart Plug solution for blind bore measurements. This solution gives the user the possibility to measure the very bottom of the bores to check it or to verify unexpected modification of the diameters of the bore itself after working.

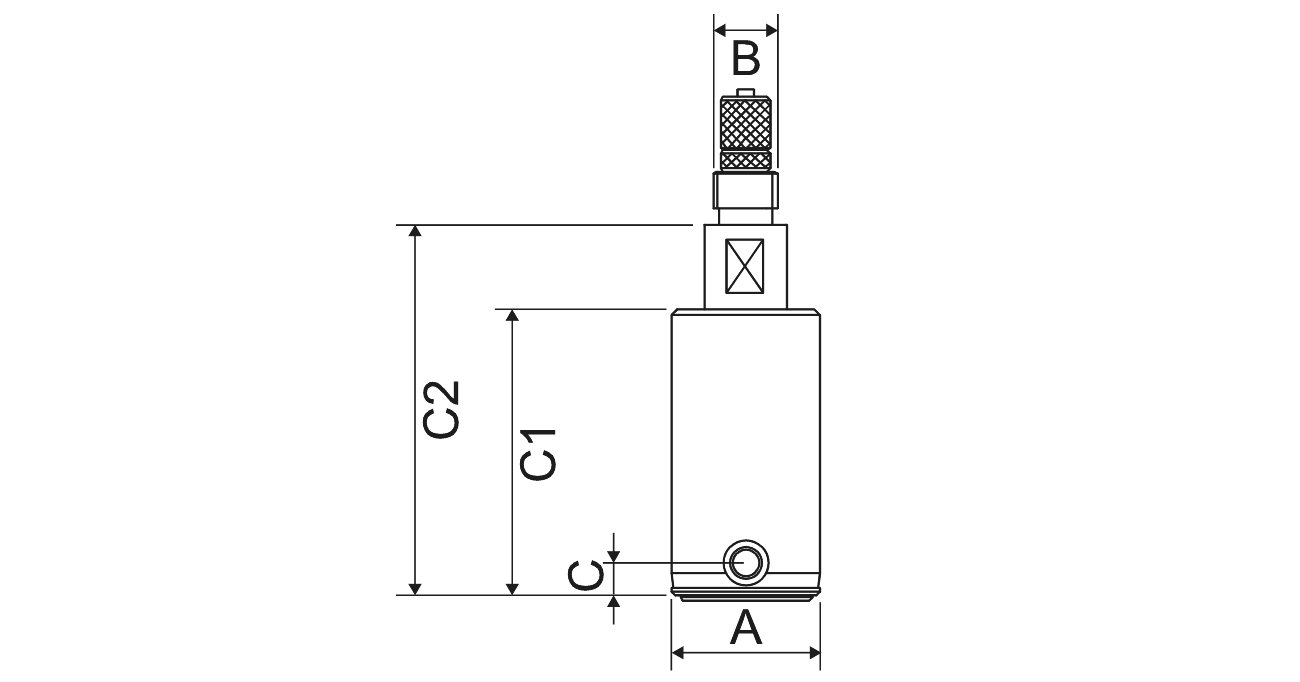

Drawings
Variations
Code
Supplier Item
Ø mm
Range mm
h mm
L1 mm
L2 mm
G mm
EAN13 Code
BB35520
Supplier Item
SMP010BB
Ø mm
> 6 ÷ 10 > 10 ÷ 20
Range mm
0,15
h mm
1,5
L1 mm
25,50 25,75
L2 mm
33,50 33,75
G mm
M6 x 0,75
EAN13 Code
2000000159447
BB35525
Supplier Item
SMP012BB
Ø mm
> 15 ÷ 25
Range mm
0,20
h mm
2,5
L1 mm
27
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
BB35535
Supplier Item
SMP014BB
Ø mm
> 25 ÷ 35
Range mm
0,20
h mm
2,5
L1 mm
27
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
2000000159454
BB35545
Supplier Item
SMP016BB
Ø mm
> 35 ÷ 45
Range mm
0,20
h mm
2,5
L1 mm
27
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
2000000159461
BB35560
Supplier Item
SMP018BB
Ø mm
> 45 ÷ 60
Range mm
0,20
h mm
2,5
L1 mm
27
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
BB35580
Supplier Item
SMP020BB
Ø mm
> 60 ÷ 70 > 70 ÷ 80
Range mm
0,20
h mm
2,5
L1 mm
26,50 33,50
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
2000000159478
BB355100
Supplier Item
SMP022BB
Ø mm
> 80 ÷ 100
Range mm
0,20
h mm
2,5
L1 mm
33,50
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
2000000159485
BB355125
Supplier Item
SMP024BB
Ø mm
> 100 ÷ 125
Range mm
0,20
h mm
2,5
L1 mm
33,50
L2 mm
42,5
G mm
M10 x 1
EAN13 Code
2000000159492
