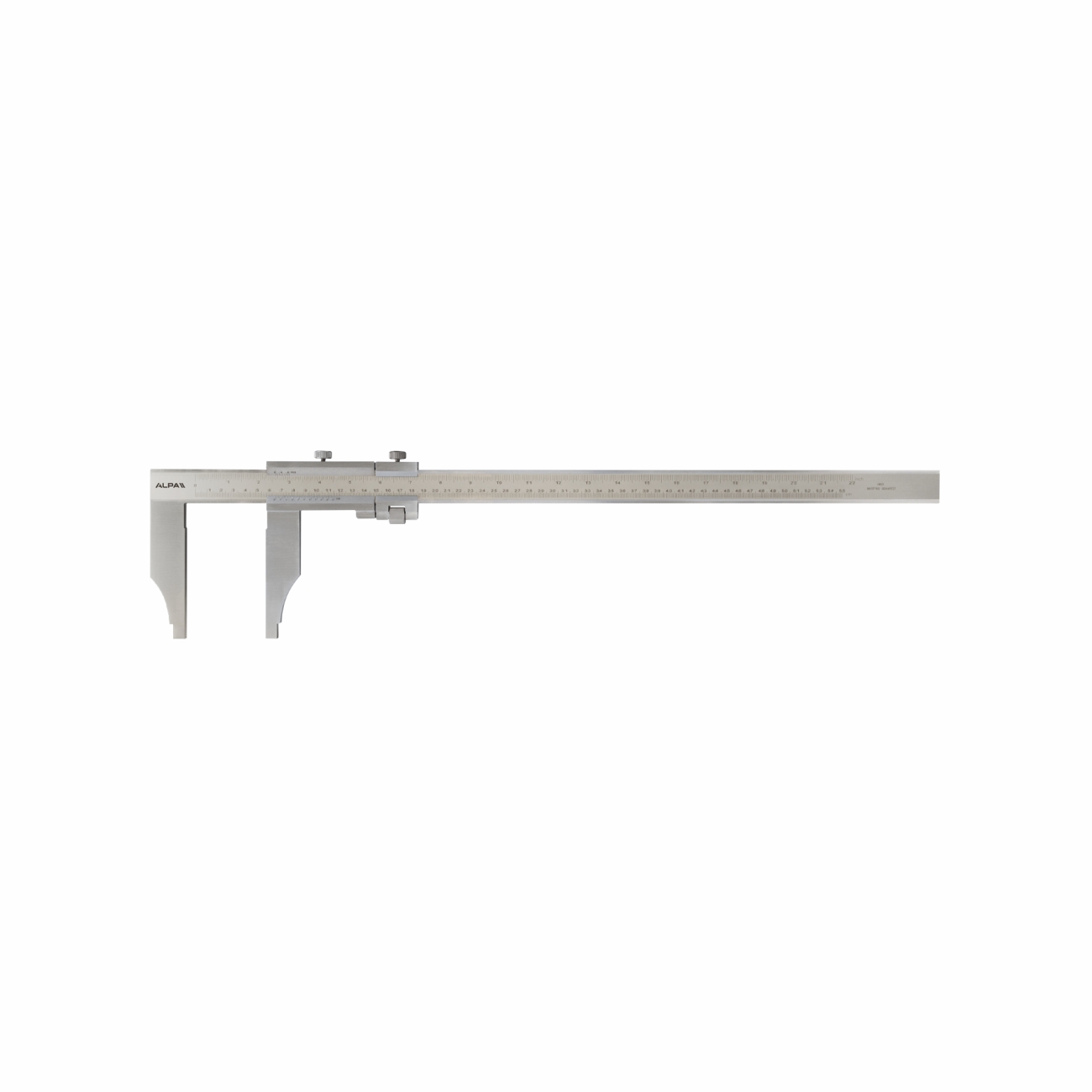

Large-scale slide caliper ALPA AB030
Characteristics- Accuracy ± 0.05 mm (300)
- Resolution 0.02 mm
- Hardened stainless steel structure
- Slider with locking screw and micrometric adjustment
- Satin-chromed readout scale
- Engraved, easy-to-read and long-lasting precision graduation, slightly set back, protected by two shoulders for guiding the slider
- Lapped contact surfaces
- Slider stop at end of rod
- Manufactured according to DIN 862
Description
Stainless steel
Supplied with wooden case
Function
- ABS
Drawings
Variations
Code
Range mm
A mm
C mm
C1 mm
C2 mm
E mm
Weight kg
AB030300
Range mm
0 ÷ 300
A mm
440
C mm
90
C1 mm
10
C2 mm
5
E mm
24 x 5
Weight kg
0,72
AB030400
Range mm
0 ÷ 400
A mm
560
C mm
90
C1 mm
10
C2 mm
5
E mm
24 x 5
Weight kg
0,82
AB030500
Range mm
0 ÷ 500
A mm
680
C mm
11,5
C1 mm
13
C2 mm
10
E mm
28,5 x 6
Weight kg
1,47
AB030600
Range mm
0 ÷ 600
A mm
780
C mm
11,5
C1 mm
13
C2 mm
10
E mm
28,5 x 6
Weight kg
1,60
AB030800
Range mm
0 ÷ 800
A mm
1000
C mm
150
C1 mm
15
C2 mm
10
E mm
38,5 x 8
Weight kg
3,57
AB0301000
Range mm
0 ÷ 1000
A mm
1280
C mm
150
C1 mm
15
C2 mm
10
E mm
38,5 x 8
Weight kg
4,00
AB0301200
Range mm
0 ÷ 1200
A mm
1450
C mm
150
C1 mm
15
C2 mm
10
E mm
38,5 x 8
Weight kg
4,50
AB0301500
Range mm
0 ÷ 1500
A mm
1800
C mm
150
C1 mm
15
C2 mm
10
E mm
38,5 x 8
Weight kg
5,28
AB0302000
Range mm
0 ÷ 2000
A mm
2300
C mm
200
C1 mm
15
C2 mm
10
E mm
48 x 10,5
Weight kg
10,56
