Magnetic indicator stand.

Hydraulically locking articulated magnetic dial gauge holder ALPA CD018

Category: SKU: CD018
Characteristics
  • Magnetic base
  • Fully articulated rods
  • Ø 8 mm connection
  • Centralised hydraulic clamping
  • Micrometric adjustment
  • Ground flat and V-shaped support surfaces
Request information

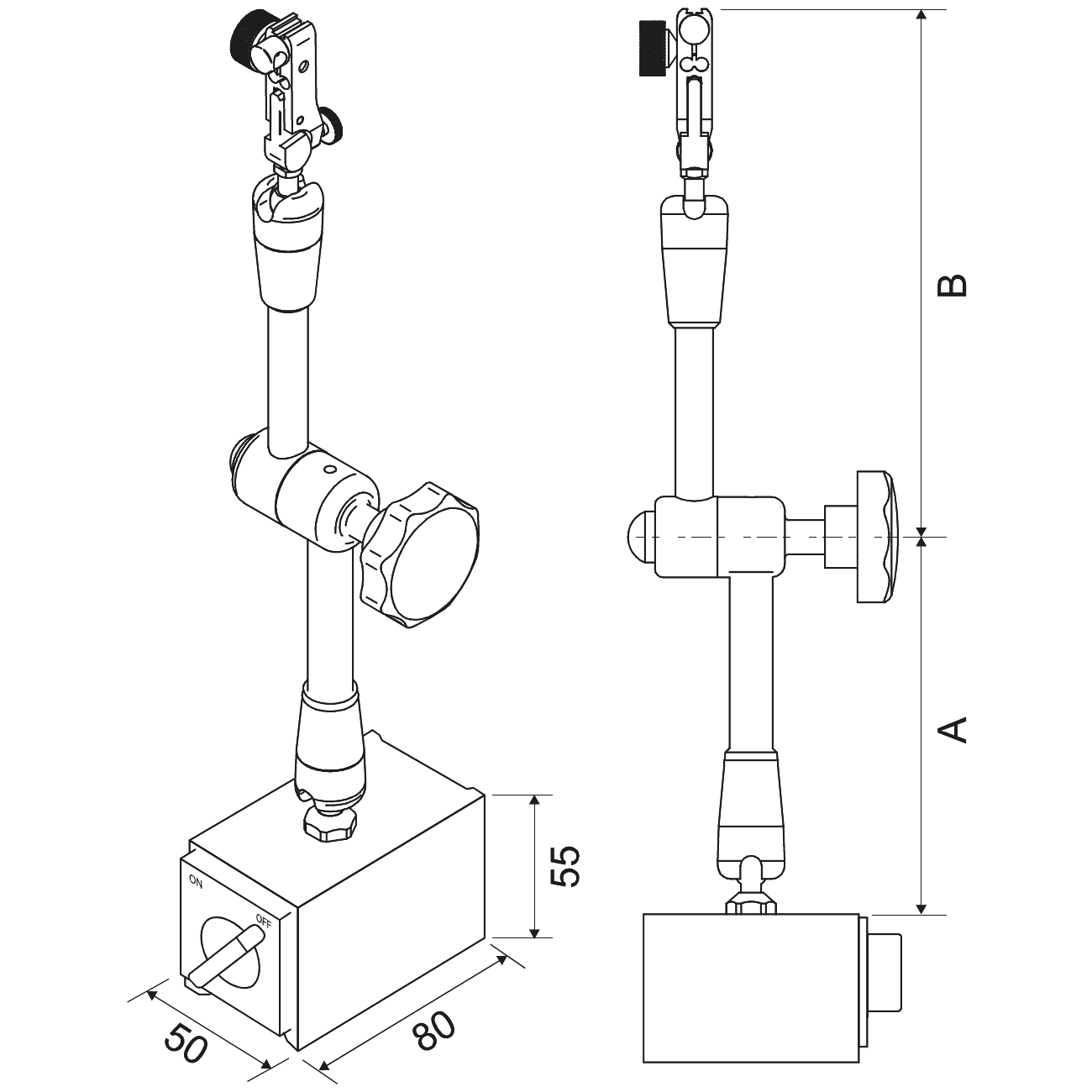

Drawings
Variations
Code
Locking
Holding power kg
Arm lenght mm
A mm
B mm
Description
CD018ID
Locking
Hydraulic
Holding power kg
100
Arm lenght mm
336
A mm
140
B mm
196
Description
Hydraulic
CD018IDL
Locking
Hydraulic
Holding power kg
100
Arm lenght mm
434
A mm
193
B mm
241
Description
Hydraulic
