Automatic 3D measuring machine TRUST ST ALPA LA150

Category: SKU: LA150
  • Thanks to modern technology in the development and construction, the coordinate machines ALPA TRUST ST guarantee speed, precision and reliability on all types of measurements. They may be used with touch trigger probe and continuous scanning probe or with camera system. The structure is in ligth alloys which guarantees excellent performance even in the absence of a controlled temperature. Through Innovative software Aberlink 3D it is possible to program the temperature compensation depending on workpiece material, this makes the machine ALPA TRUST ST also ideal for use in the shopfloor. The table consists of an aluminium-granite structure that is designed not to flex or vibrate with loads of up to 300 kg (a solid granite table for weights up to 500 kg can be provided on request). The axes of the CNC machine are moved via the intuitive joystick for fast and reliable measurements.

Protection from environmental vibrations
Smooth and precise movements thanks to the air bearings
Available with different head / probe configurations
Aberlink 3D software; Free software update

ACCESSORIES (on request)
Automatic thermal compensation system
CCD camera
Touch screen joystick
Collimated back-light for camera
6-position probe change
Dual monitor – Fixing kit


  • Accuracy μm*: (2.4 + 0.4 L/100) TP8 (2.4 + 0.4 L/100) TP20 (2.3 + 0.4 L/100) TP200 (2.1 + 0.4 L/100) SP25M
  • Scale resolution: 0.5
  • Optimum temperature range: 18 - 22 °C
  • Operational temperature range: 5 - 45 °C
  • Table load capacity: 300 Kg (honeycomb) - 500 Kg (solid)
  • Max drive speed: 600 mm/sec
  • Acceleration: 600 mm/sec²
  • Air consumption: 50 l/min (1.8 cfm)
  • Reuired air pressure: 5 bar (72 psi)
  • Drive: Kevlar belts and fine adjustment knobs

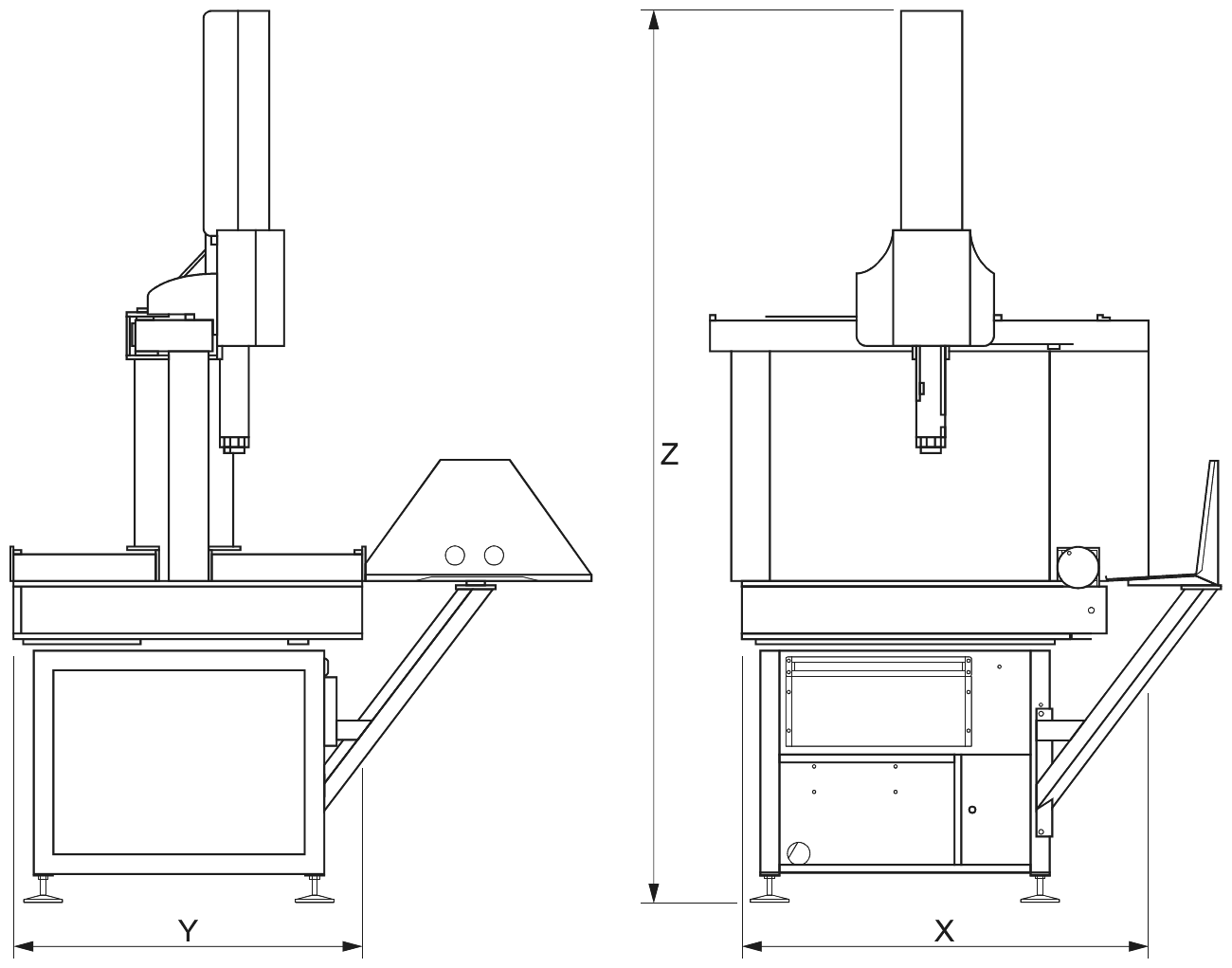

Dimension X - Y - Z mm
Axis travel X - Y - Z mm
Dimension X - Y - Z mm
1130 x 900 x 2320
Axis travel X - Y - Z mm
640 x 600 x 500
Dimension X - Y - Z mm
1130 x 1200 x 2320
Axis travel X - Y - Z mm
640 x 900 x 500
Dimension X - Y - Z mm
1130 x 1500 x 2320
Axis travel X - Y - Z mm
640 x 1200 x 500
