CMM chamber ALPA LA173

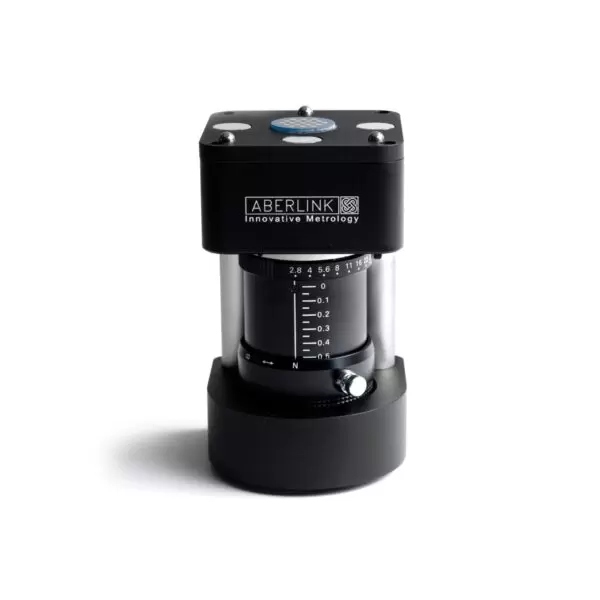

• Aberlink’s camera system offers a non-contact facility on any ALPA CMM. A clever design of magnetic, kinematic joint allows the probe and camera to be swapped in just seconds. This means that components can be inspected using both touch trigger and vision inspection technology on the same machine.

  Specification:
  – 16 Ring LED lighting UV & white
  – Telecentric lens
  – 3 Mega pixel high speed colour camera
  – Resolution: 2048 x 1536 (QXGA)
  – Stand off: min 125 mm
  – Field Of View: min 9.5 mm
  – Pixel Size: min 4.8 μm
