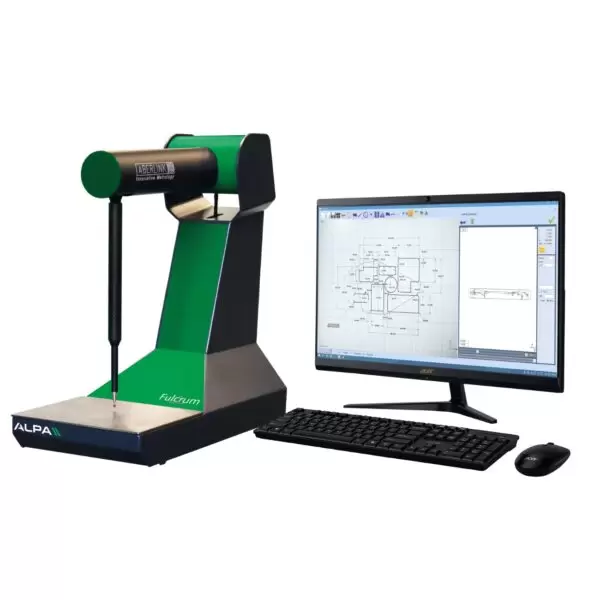

Fulcrum CMM measuring machine ALPA LA145

Category: SKU: LA145
Characteristics
  • The revolutionary manual measuring machine for the workshop.
    Fulcrum is a revolutionary CMM with 3 rotating axes, enabling it to have a compact and portable design in order to be used wherever needed, in the production department next to the machine tools, in the quality control department or at the premises of third parties. It is designed to optimize inspection times and improve the production process without having
    to wait for feedback from quality control, thereby avoiding production slowdowns. The software has been made even simpler, while maintaining the full functionality
    of traditional measuring machines. After the part has been inspected manually, its features are recognized immediately and the measured
    dimensions are
    displayed automatically. The intuitive software, ease of use and innovative design
    allow even less experienced operators to inspect the
    components to be measured
    very quickly. The intuitive buttons allow you to switch quickly between functions without having to use the mouse and parts can be placed
    anywhere on the
    measuring surface. Fulcrum will become the preferred tool for quick and precise inspections.
Description

CHARACTERISTICS
Compact and portable
Easy to operate with just one hand
Shortcut keys to switch between functions
Can be used on machines
Operates without compressed air
Free software updates

Properties

  • Volumetric accuracy μm*: 5.0
  • Scale resolution: 0.04 µm
  • Operational temperature range: 18 - 22 °C
  • Compressed air: None

Variations
Code
LA145280
