Fast external dial gauge ALPA BB396
Characteristics- Caliper gauge for external, carbide measuring faces.
Supplied with two series of measuring contacts to measure different surfaces.
Model for internal measurement range 22-72 mm, items for external measurement range 0-50 mm.

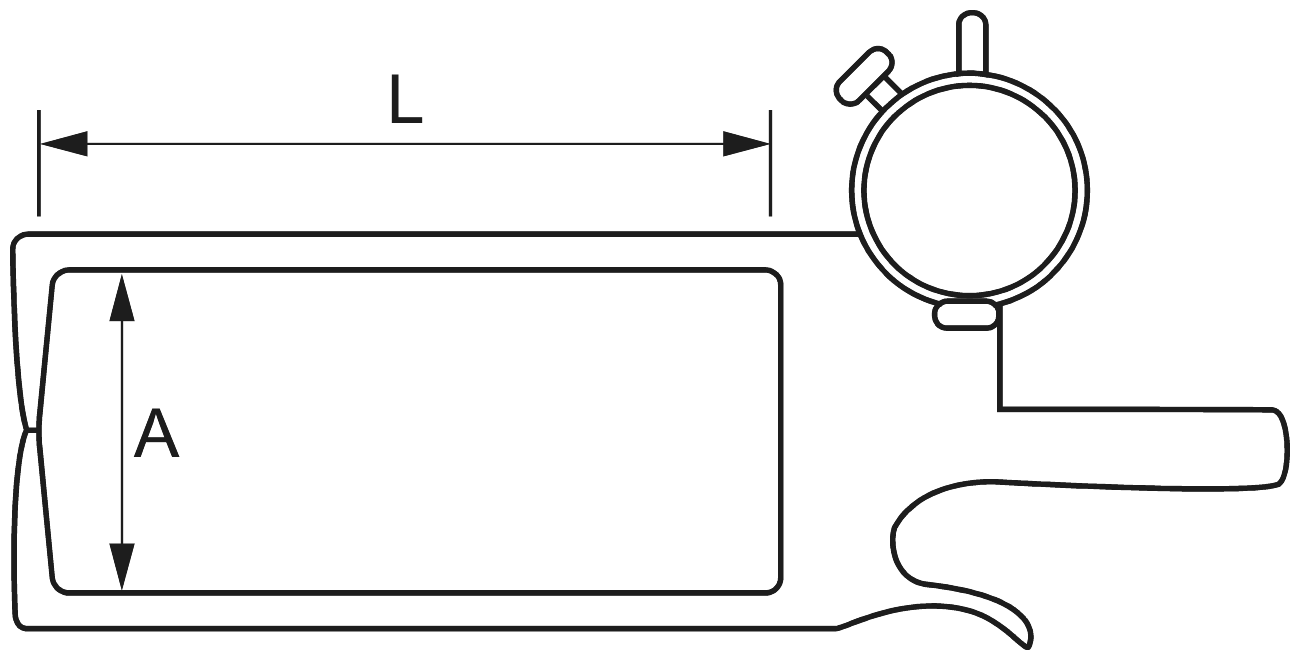

Drawings
Variations
Code
Range mm
Accuracy mm
Resolution mm
A mm
L mm
BB39602150
Range mm
0 ÷ 50
Accuracy mm
± 0,06
Resolution mm
0,02
A mm
55
L mm
150
BB39602250
Range mm
0 ÷ 50
Accuracy mm
± 0,10
Resolution mm
0,02
A mm
55
L mm
250
BB39610150
Range mm
0 ÷ 50
Accuracy mm
± 0,20
Resolution mm
0,10
A mm
55
L mm
150
BB39610250
Range mm
0 ÷ 50
Accuracy mm
± 0,30
Resolution mm
0,10
A mm
55
L mm
250
