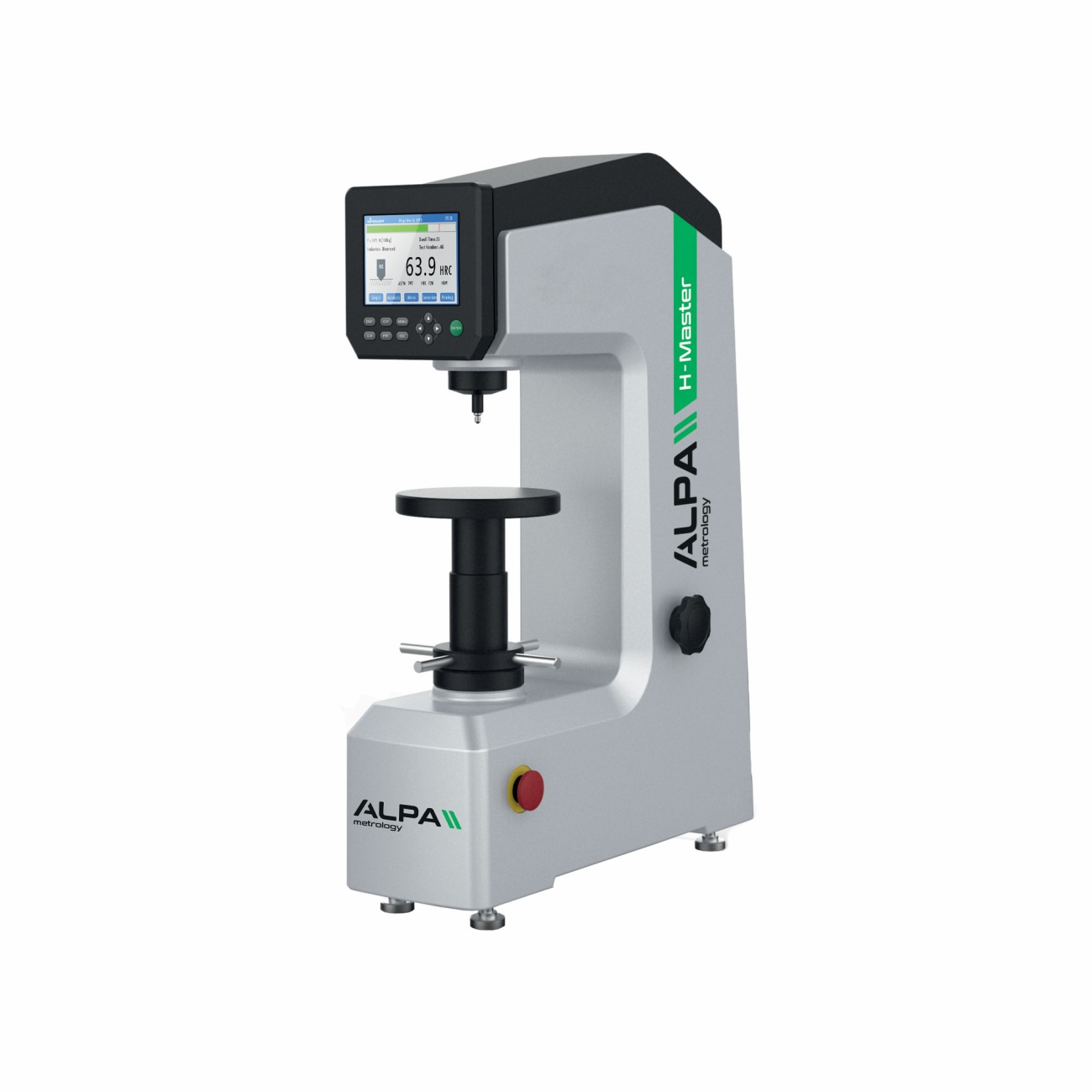

Digital automatic Rockwell bench hardness tester H-Master ALPA
Characteristics- Hardness tester for measuring hardness on metals on the ROCKWELL scales
- Supporting structure in cast iron
- Max. test height 175 mm, depth 165 mm
- Mechanical load application system with weight method, conforming to UNI-DIN-ASTM standards with loads of kgf 60/100/150 for Rockwell scales A, B and C
- Manual pre-loading and motorised and timed load application
- Workpiece support equipped with 1 flat table Ø 150 mm, 1 flat table Ø 55 mm and 1 table with V-shaped prism for measuring cylindrical parts
Function
- n°1: Diamond Cone Penetrator
- n°1: Ball indenter Ø 1/16" Rockwell B scale
- n°1: Specimen HRC 20-33
- n°1: Specimen HRC 57-70
- n°1: Specimen HRB 85-100
- n°1: Positioning plate Ø 60 mm
- n°1: Positioning plate Ø 150 mm
- n°1: V-shaped plate for cylindrical components
Variations
Code
Dimensions mm
LA731DR
Dimensions mm
550 x 185 x 755
90
