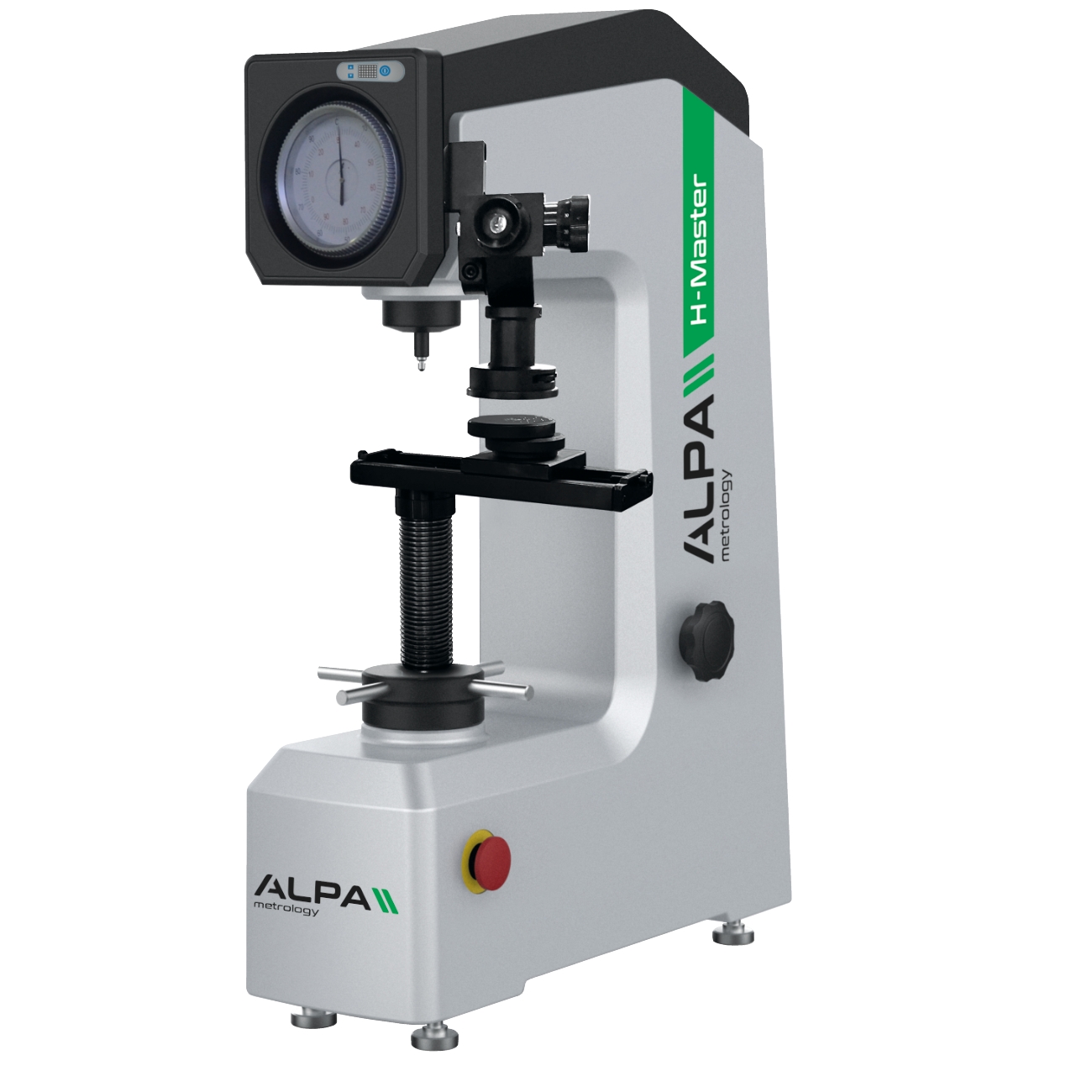

Universal bench hardness tester with analogue dial ALPA LB151
Characteristics- Universal analogic hardness test with the following features:
– Rockwell (HRA, HRB, HRC), Brinell, Vickers scales
– Cast iron structure, maximum height testing piece 170 mm, max depht 165 mm
– Motorized and temporized load application
– Pre-load 10 kgf, load 60-100-150 kfg for Rockwell A, B,C scales
– Load 31,2-62,5-187,5 kfg for Brinell scales
– Load 30-100 kgf for Vickers scales
– For Rockwell scales reading on analogue dial gauge
– For Brinell and Vickers scales reading with microscope included in the base scope
Description
Equipment
n°1 Diamond Rockwell Indenter
n°1 Diamond Vickers Indenter
n°1 Ball Indenter Ø 1/16″ for Rockwell B scale
n°1 Ball Brinell Indenter Ø 2,5 mm
n°1 Ball Brinell Indenter Ø 5 mm
n°1 Specimen HRC 20-33
n°1 Specimen HRC 57-70
n°1 Specimen HRB 85-100
n°1 Specimen HV 30
Variations
Code
Dimensions mm
LB151AU
Dimensions mm
520 x 215 x 700
96
