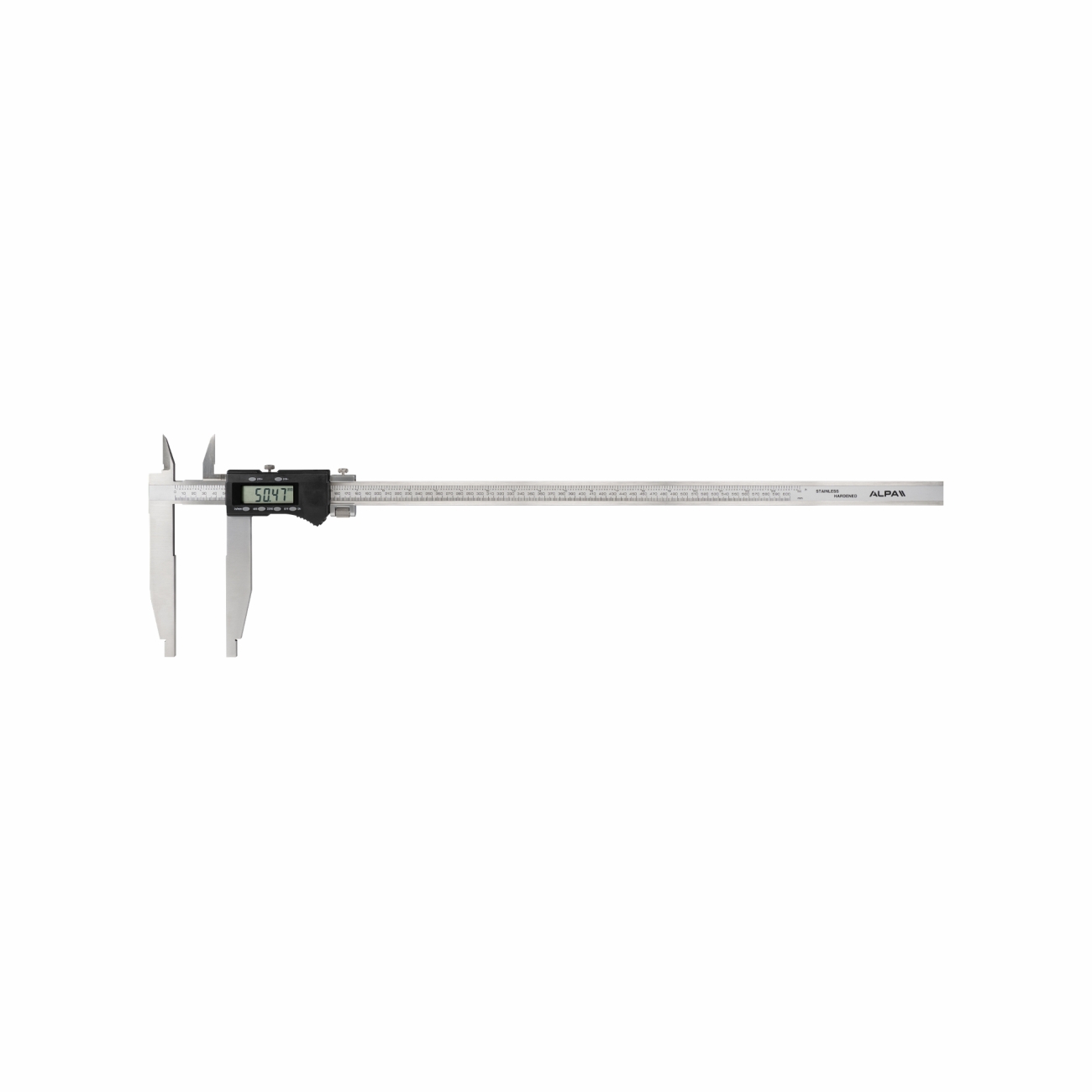

Digital slide caliper ALPA AA052
Characteristics- Accuracy ± 0.05 mm (300)
- Resolution 0.01 mm
- IP40 protection
- Slider with locking screw and micrometric adjustment
- Matt chrome finish scale
- On/off button
Description
Large LCD display with big numbers
Stainless steel
mm/inch conversion
Properties
- Protection: Zero
- Height of digits: Preset
- Accuracy: ABS
- Resolution: 0,01
- Weight: 0,5 (300 mm) 1,5 (600 mm) 2,7 (1000 mm)
- ON/OFF:
- Zero:
- ABS:
- Preset:
- Sleep: -
- Hold: -
Drawings
Variations
Code
Range mm
A mm
B mm
C mm
C1 mm
C2 mm
E mm
AA052300
Range mm
0 ÷ 300
A mm
440
B mm
100
C mm
12
C1 mm
5
C2 mm
20
E mm
15
AA052600
Range mm
0 ÷ 600
A mm
780
B mm
150
C mm
24
C1 mm
10
C2 mm
31
E mm
2,7
AA0521000
Range mm
0 ÷ 1000
A mm
1230
B mm
150
C mm
24
C1 mm
10
C2 mm
31
E mm
3
