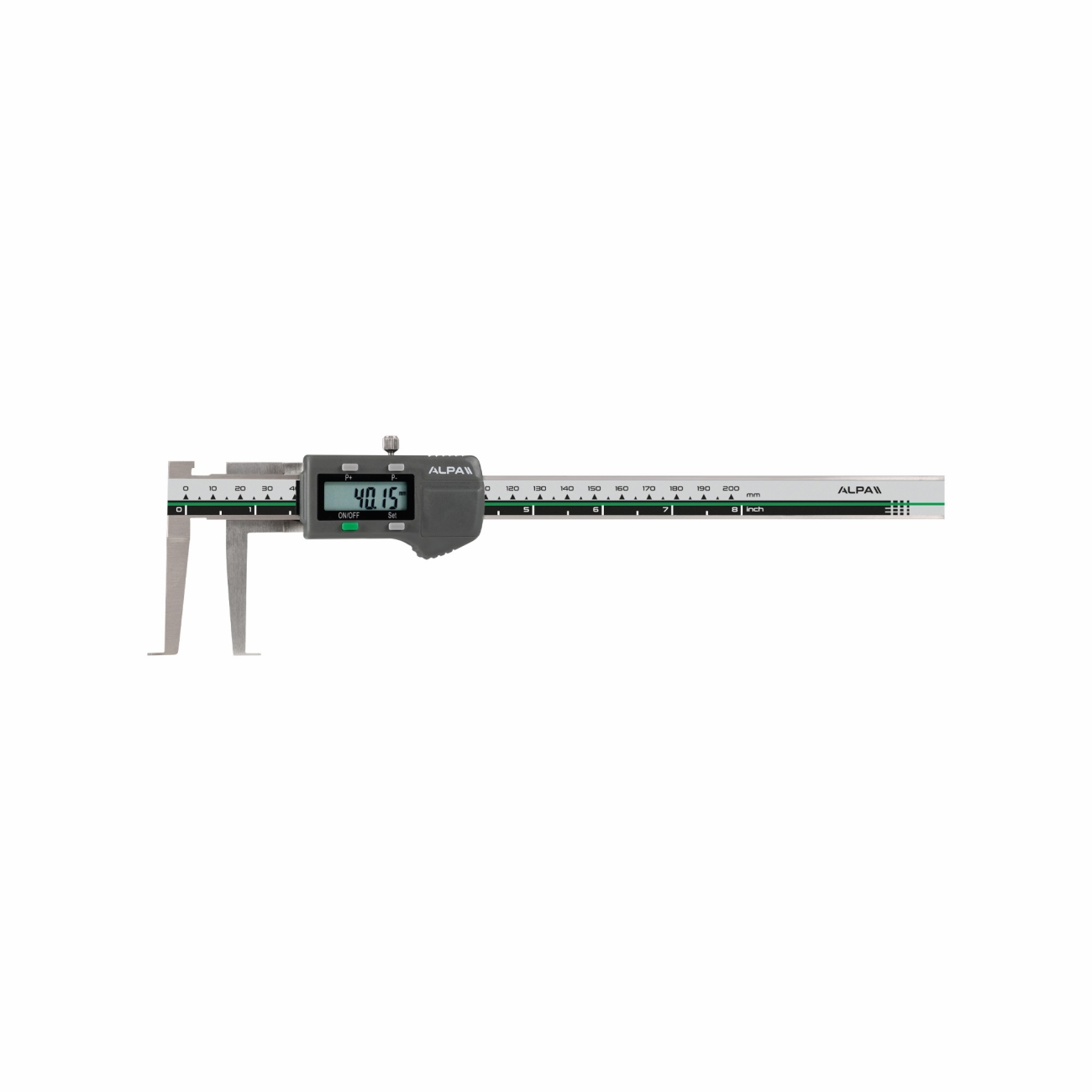

Digital slide caliper for internal grooves ALPA AA179

Digital slide caliper for internal grooves ALPA AA179

Category: SKU: AA179
Characteristics
  • Accuracy ± 0.05 mm
  • Resolution 0.01 mm
  • IP40 protection
  • Slider with locking screw
  • On/off button
Request information
Description

Large LCD display with big numbers
Stainless steel

Function

  • Zero
  • Preset

Download the manual
Drawings
Variations
Code
Range mm
A mm
C mm
C1 mm
C2 mm
C3 mm
E mm
Weight kg
Certificazione
AA179150
Range mm
14 ÷ 150
A mm
235
C mm
30
C1 mm
12
C2 mm
5
C3 mm
1
E mm
16
Weight kg
0,2
Certificazione
AA179200
Range mm
15 ÷ 200
A mm
285
C mm
40
C1 mm
13
C2 mm
5
C3 mm
1
E mm
16
Weight kg
0,25
Certificazione
AA179300
Range mm
17 ÷ 300
A mm
400
C mm
50
C1 mm
15
C2 mm
5
C3 mm
1,5
E mm
16
Weight kg
0,5
Certificazione
AA179500
Range mm
35 ÷ 500
A mm
670
C mm
120
C1 mm
33
C2 mm
8
C3 mm
1,5
E mm
24
Weight kg
1
Certificazione
