Calibro digitale a corsoio per ring joint IP66 ALPA AA082

Digital slide caliper for ring joints IP66 ALPA AA082

Category: SKU: AA082
Characteristics
  • Accuracy ± 0,04 mm (300). Resolution 0,01 mm.
    Digital caliper suitable for measuring the seat of 23° ring joint. Different degrees on demand.
Request information
Description

– LCD display
– Hardened stainless steel

Properties

  • Protection: 66
  • Height of digits: 9
  • Accuracy: ± 0,04 (300)
  • Resolution: 0,01
  • ON/OFF: 
  • Zero: 
  • ABS: 
  • Preset: 
  • Sleep: -
  • Hold: -

Download the manual

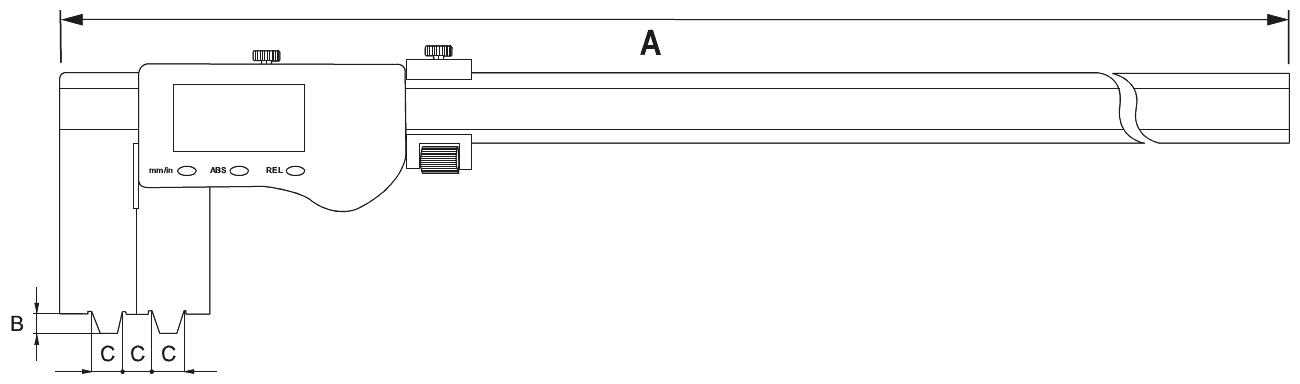

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
AA082300
Range mm
0 ÷ 300
A mm
476
B mm
5
C mm
10
0,8
AA082500
Range mm
0 ÷ 500
A mm
680
B mm
6
C mm
10
1
