Digital slide caliper IP67 with preset ALPA AA031

Category: SKU: AA031
Characteristics
  • Accuracy ± 0,04 mm. Resolution 0,01 mm.
    Swiss made electronics, protected against dust and water immersion, cursor with locking screw.
Description

– LCD display
– Hardened stainless steel
– SIS: Sylvac Inductive System (patented)
– mm/inch conversion
– Control report with declaration of conformity
– Provided with wooden case

Properties

  • Protection: 67
  • Height of digits: 9
  • Accuracy: ± 0,04
  • Resolution: 0,01
  • ON/OFF: 
  • Zero: 
  • ABS: 
  • Preset: 
  • Sleep: 
  • Hold: 

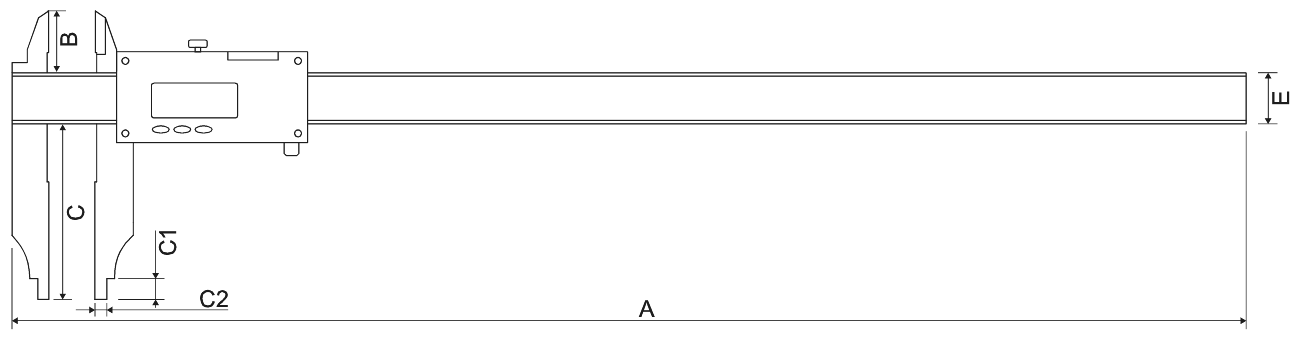

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
D mm
E mm
AA031500150
Range mm
0 ÷ 500
A mm
660
B mm
5
C mm
177
D mm
150
E mm
27 x 7
2,25
AA031600150
Range mm
0 ÷ 600
A mm
800
B mm
5
C mm
177
D mm
150
E mm
27 x 7
265
AA031800150
Range mm
0 ÷ 800
A mm
1000
B mm
5
C mm
177
D mm
150
E mm
27 x 7
2,95
AA0311000150
Range mm
0 ÷ 1000
A mm
1200
B mm
10
C mm
177
D mm
150
E mm
27 x 7
3,15
