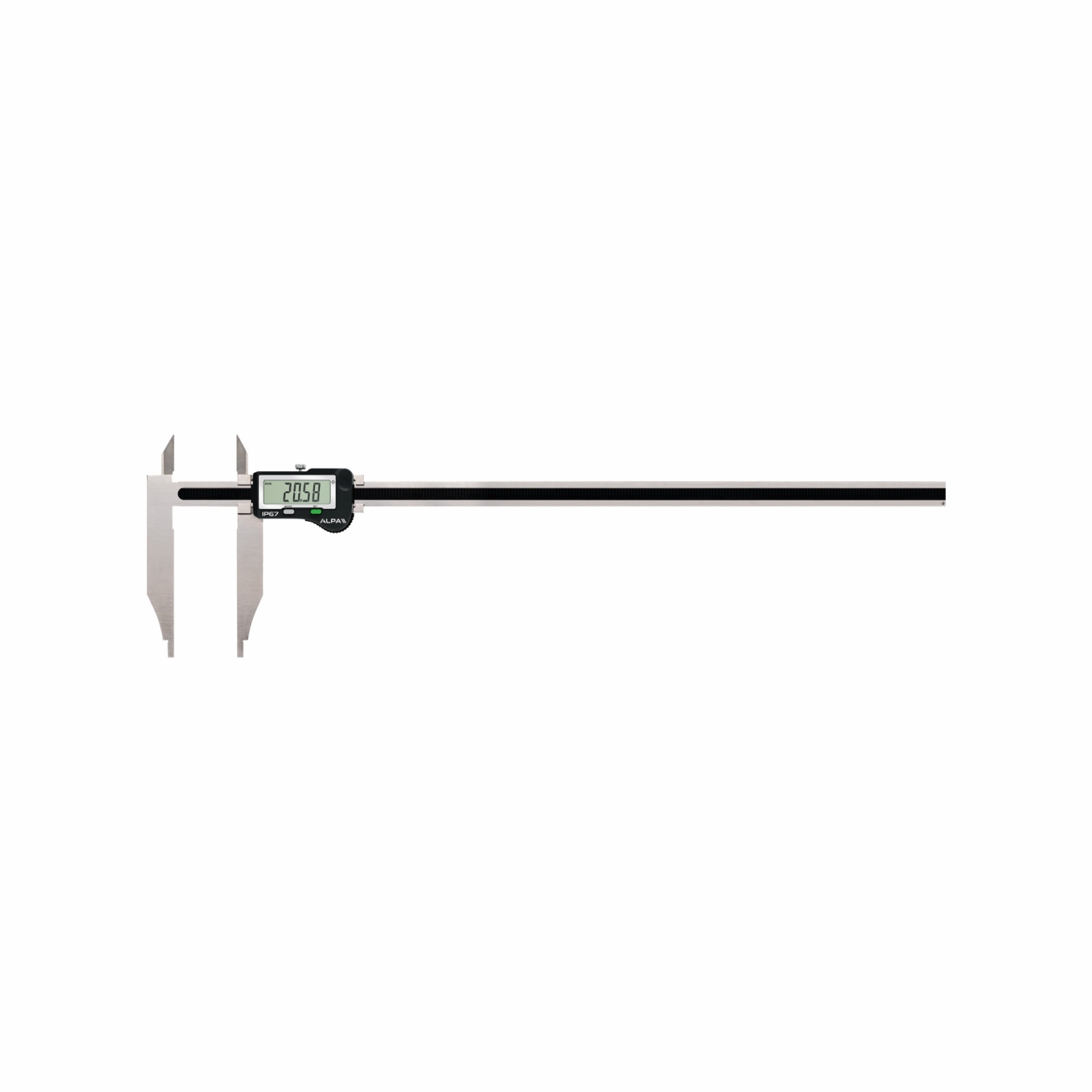

Digital slide caliper IP67 with preset ALPA AA034
Characteristics- Accuracy ± 0.03 mm
- Resolution 0.01 mm
- IP67 protection
- Electronics protected against dust and brief immersion in water
- Hardened stainless steel structure
- Slider with locking screw
- Data output
- Ergonomic design for ease of use
Description
LCD display
Stainless steel
SIS: Sylvac inductive system (patented)
mm/inch conversion
Inspection report with declaration of conformity
Supplied with wooden case
Properties
- Protection: Zero
- Height of digits: Preset
- Accuracy: ABS
- Resolution: Sleep
- Weight: Hold
- ON/OFF:
- Zero:
- ABS:
- Preset:
- Sleep:
- Hold:

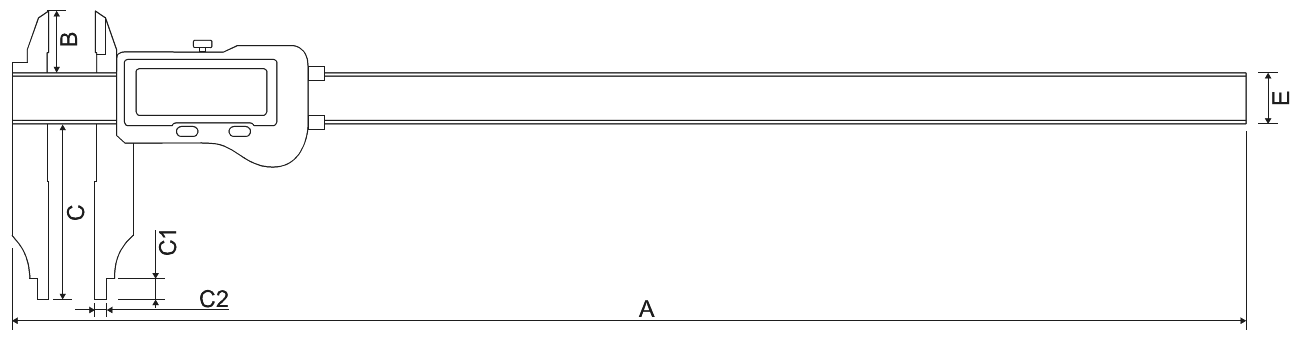

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
C1 mm
C2 mm
E mm
mm
AA034300
Range mm
0 ÷ 300
A mm
425
B mm
31
C mm
100
C1 mm
11.5
C2 mm
5
E mm
17 x 5
mm
720
AA034400
Range mm
0 ÷ 400
A mm
525
B mm
31
C mm
100
C1 mm
11.5
C2 mm
5
E mm
17 x 5
mm
820
AA034500
Range mm
0 ÷ 500
A mm
625
B mm
31
C mm
100
C1 mm
11.5
C2 mm
5
E mm
17 x 5
mm
920
