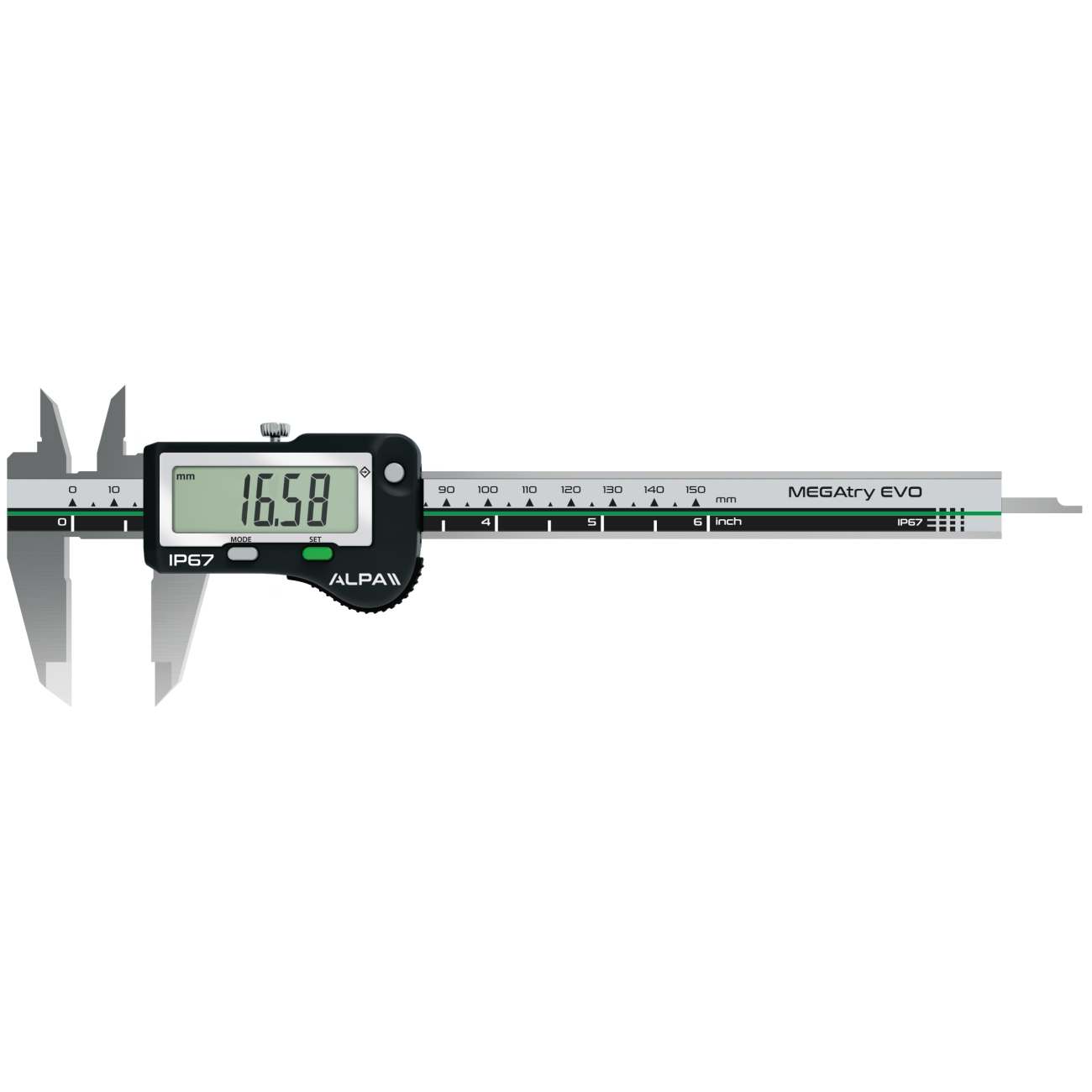

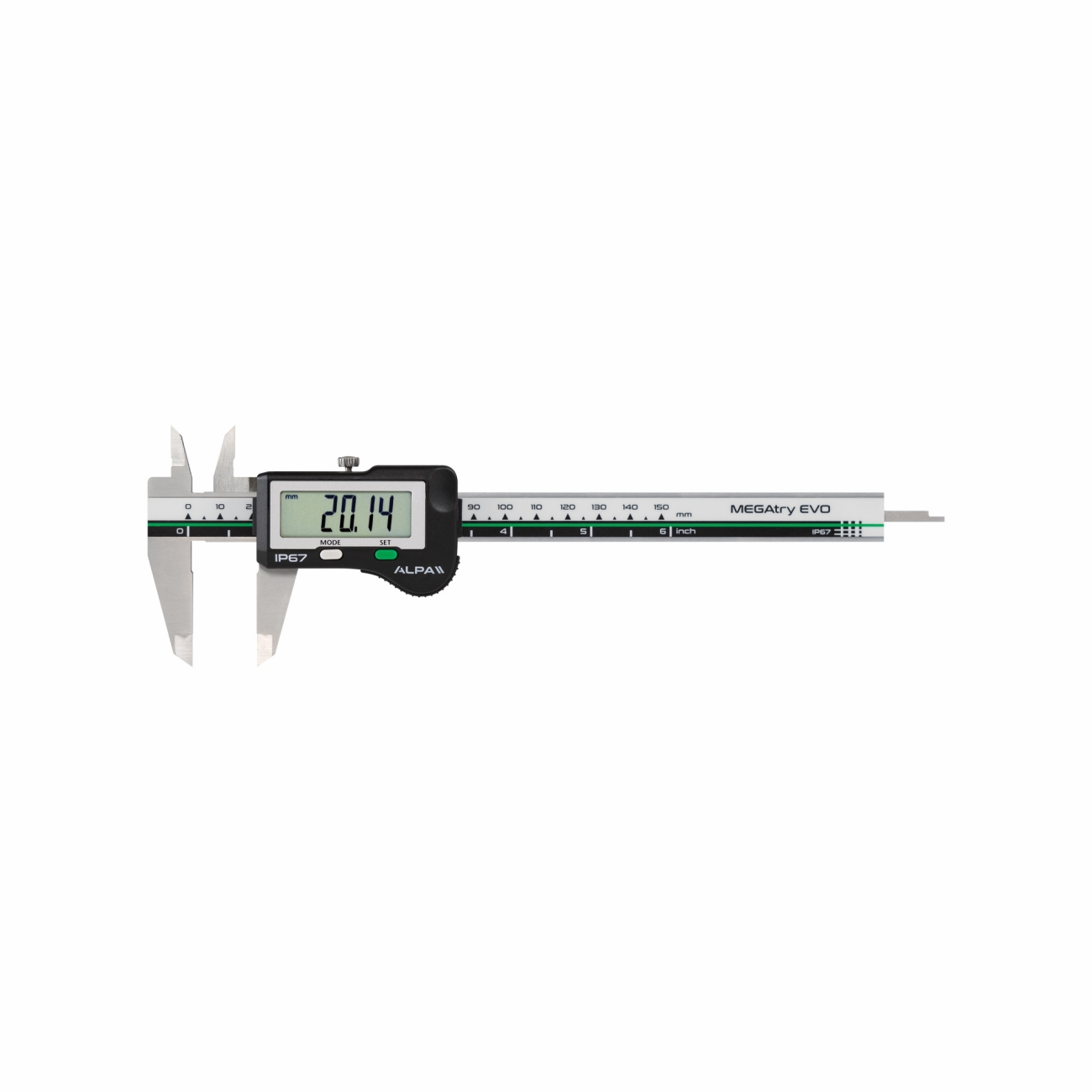

Digital slide caliper IP67 with preset ALPA MEGATRY EVO AA014

Digital slide caliper IP67 with preset ALPA MEGATRY EVO AA014

Category: SKU: AA014
Characteristics
  • Accuracy ± 0.02 mm
  • Resolution 0.01 mm
  • IP67 protection
  • Electronics protected against dust and brief immersion in water
  • Hardened stainless steel structure
  • Slider with locking screw
  • Data output
  • Ergonomic design for ease of use
  • Models AA014150NDP and AA014150NDT are not supplied with data output
Request information
Description
  • This instrument has an IP67 protection rating, in accordance with the European standards IEC60529.
  • IP6x: totally protected from dust.
  • IPx7: protected against temporary immersion in water for 30 minutes.
  • The IP67 degree of protection is also valid when the Proximity connection cable is in use.
  • IMPORTANT: The position and the condition of the rubber seal surrounding the battery cover must be checked after each battery change. The correct positioning of this seal is essential to ensure IP67 protection.
    • Properties

    • Max error: Zero
    • Repeatability: Preset
    • Measuring speed: ABS
    • Display refresh rate: Sleep
    • Measuring system: Hold
    • Power consumption: mm/inch
    • Battery life: 12'000
    • Working temperature: from + 5° to + 40°C / from + 41° to + 104°F
    • ON/OFF: 
    • Zero: 
    • ABS: 
    • Preset: 
    • Sleep: 
    • Hold: 

    Download the manual

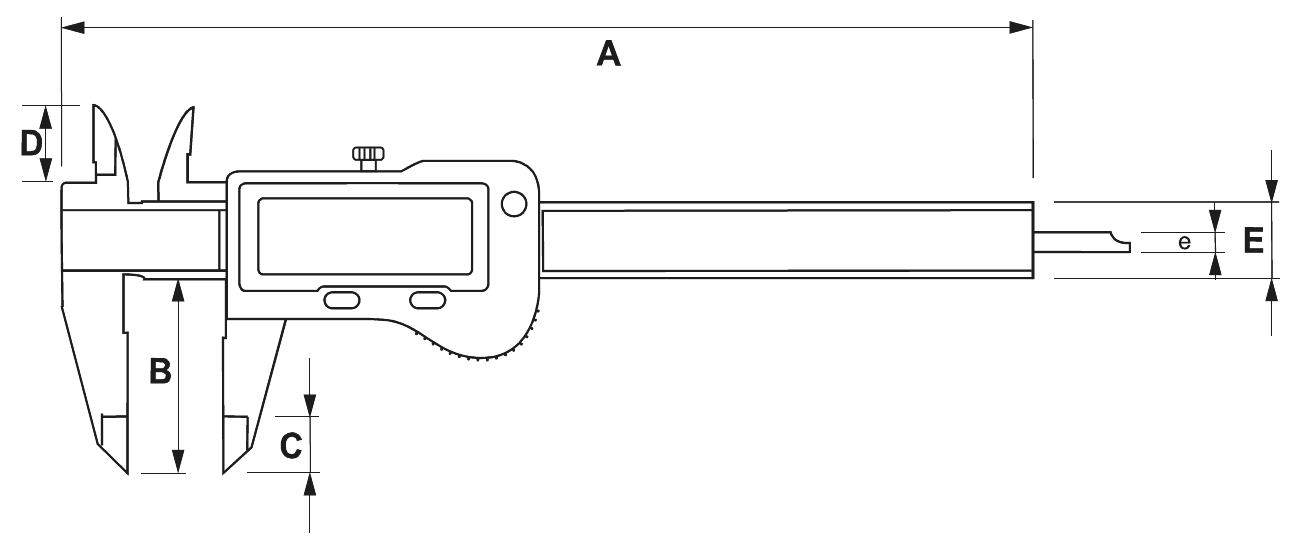

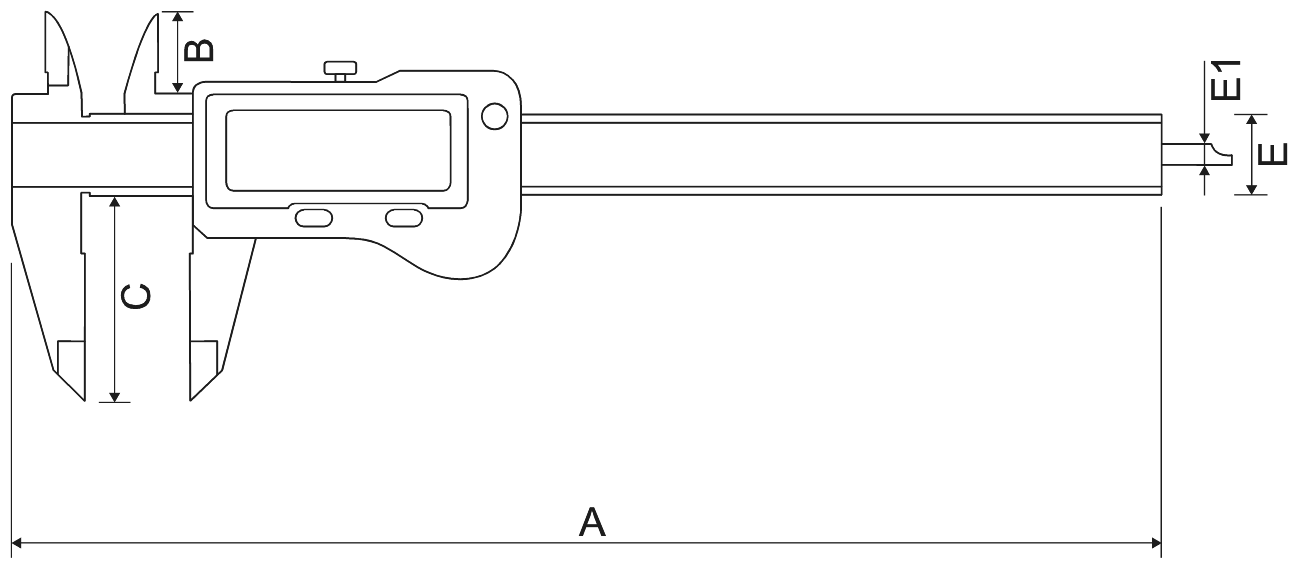

    Drawings
    Variations
    Code
    Range mm
    Rod
    A mm
    B mm
    C mm
    E mm
    E1 mm
    AA014150NDP
    Range mm
    0 ÷ 150
    Rod
    A mm
    235
    B mm
    40
    C mm
    11
    E mm
    16
    E1 mm
    3,8 x 1,3
    170
    AA014150NDT
    Range mm
    0 ÷ 150
    Rod
    A mm
    235
    B mm
    40
    C mm
    11
    E mm
    16
    E1 mm
    ø 1,5
    170
    AA014150P
    Range mm
    0 ÷ 150
    Rod
    A mm
    235
    B mm
    40
    C mm
    11
    E mm
    16
    E1 mm
    3,8 x 1,3
    170
    AA014150T
    Range mm
    0 ÷ 150
    Rod
    A mm
    235
    B mm
    40
    C mm
    11
    E mm
    16
    E1 mm
    ø 1,5
    170
    AA014200
    Range mm
    0 ÷ 200
    Rod
    A mm
    290
    B mm
    50
    C mm
    14
    E mm
    19
    E1 mm
    3,8 x 1,3
    200
    AA014300
    Range mm
    0 ÷ 300
    Rod
    -
    A mm
    388
    B mm
    64
    C mm
    14
    E mm
    19
    E1 mm
    -
    270
