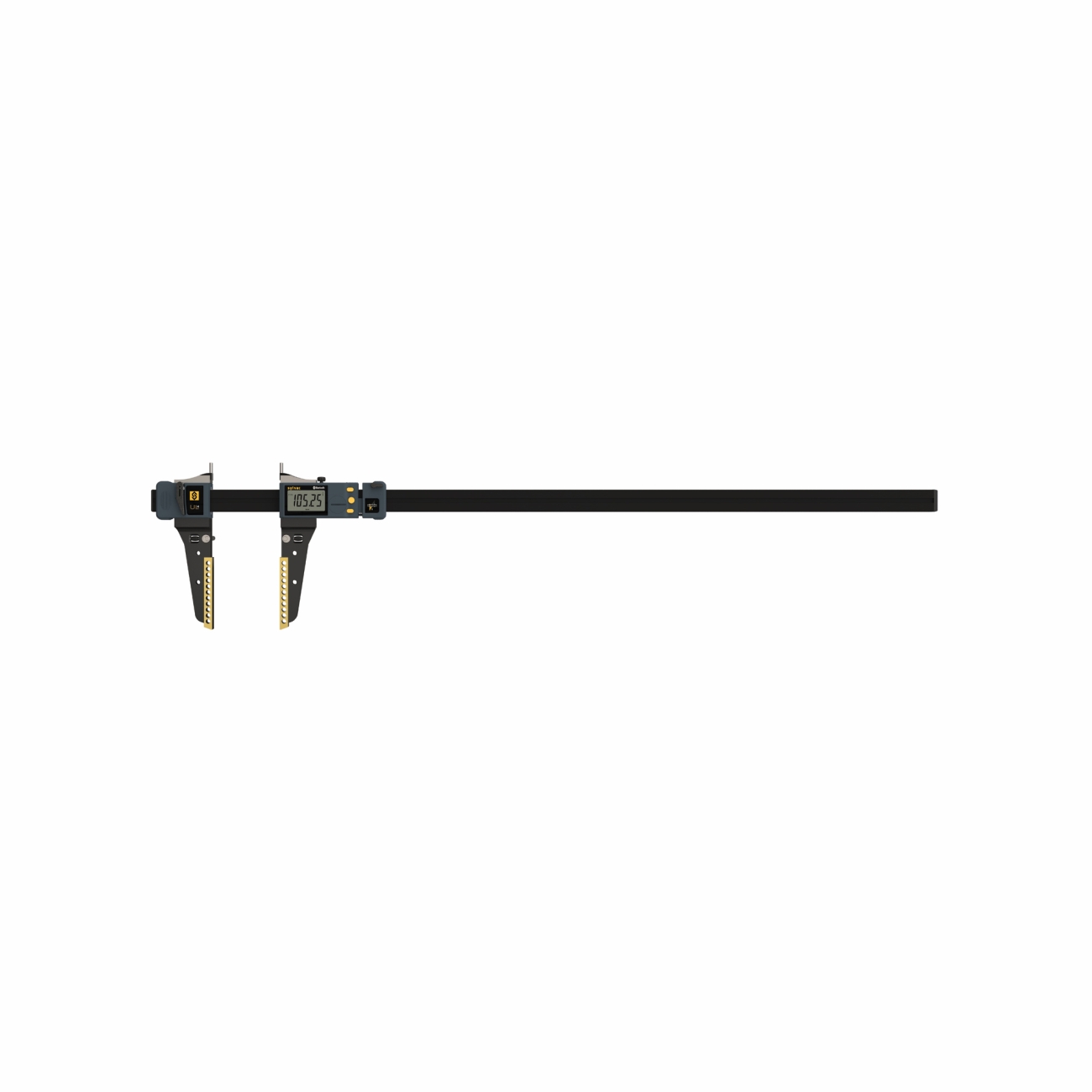

IP67 aluminium digital caliper with Bluetooth® and presets Ultra light caliper UL4 SYLVAC

Category: SKU: AA046
Characteristics
  • Resolution 0.01 mm
  • IP67 protection
  • Electronics protected against dust and brief immersion in water
  • Reinforced aluminium construction
  • Slide with locking screw
  • Stainless steel nozzles with TiN coating
  • Reinforced housing with internal prismatic guides
  • Measuring force displayed in both pull and push
Function

  • Bluetooth®
  • Preset
  • ABS
  • Hold

Drawings
Variations
Code
Range mm
Accuracy mm
A mm
B1 mm
C mm
C3 mm
E mm
Weight kg
AA046400BT
Range mm
0 ÷ 400
Accuracy mm
0,030
A mm
796
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
1,5
AA046600BT
Range mm
0 ÷ 600
Accuracy mm
0,040
A mm
1001
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
1,6
AA0461000BT
Range mm
0 ÷ 1000
Accuracy mm
0,050
A mm
1411
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
1,9
AA0462000BT
Range mm
0 ÷ 2000
Accuracy mm
0,120
A mm
2441
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
2,6
AA0462500BT
Range mm
0 ÷ 2500
Accuracy mm
0,150
A mm
2956
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
2,9
AA0463000BT
Range mm
0 ÷ 3000
Accuracy mm
0,200
A mm
3471
B1 mm
ø 5
C mm
202
C3 mm
124
E mm
38
Weight kg
3,3
