Digital lever micrometer ALPA BA286

Category: SKU: BA286
Characteristics

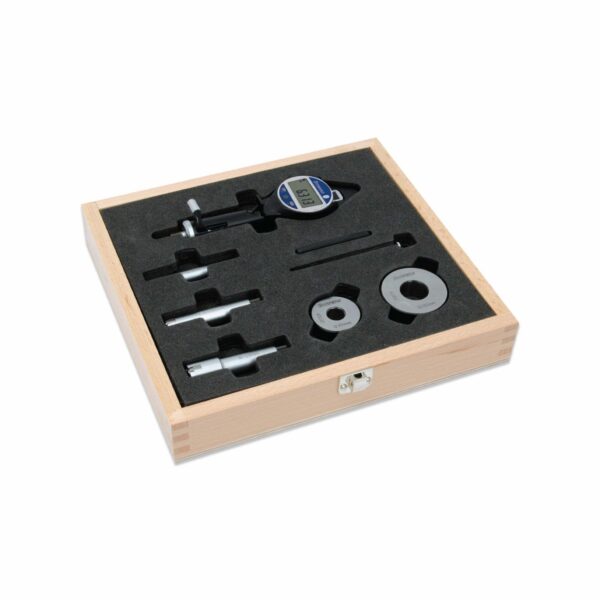

  • Set of XTL lever bore gauge. Supplied with heads, rings and UKAS certificates.
Description

The robust new Bowers XTL Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-floor conditions. The XTL has a simple ergonomic action and can be fitted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators. A ‘wireless’ gauge module is also available, enabling cable free communication with remote data collectors, PCs etc.
Sets: Supplied with heads, rings and UKAS certificate.
– Measuring range 6-100 mm (diameters above 100 mm on request)
– 2 preset memories
– Data output
– Self-centering heads
– Constant measuring pressure
– Resolution 0.001 mm
– Tungsten carbide measuring faces on all 3-point heads from 12.5 mm
– Blind bore measurement above 12.5 mm
– Setting rings included with individual instruments and sets
– Extensions available above 6 mm for deep hole measurement
– UKAS certificates supplied as standard with all gauges and setting rings
– Serial number on all gauges and measuring heads
– Heads with special anvils available to suit specific customer requirements
– Manufactured according to DIN863, part4

Variations
Code
Range mm
Measuring heads Pcs
Setting ring Pcs
BA28650SET
Range mm
20 ÷ 50
Measuring heads Pcs
3
Setting ring Pcs
2
BA286100SET
Range mm
50 ÷ 100
Measuring heads Pcs
3
Setting ring Pcs
2
