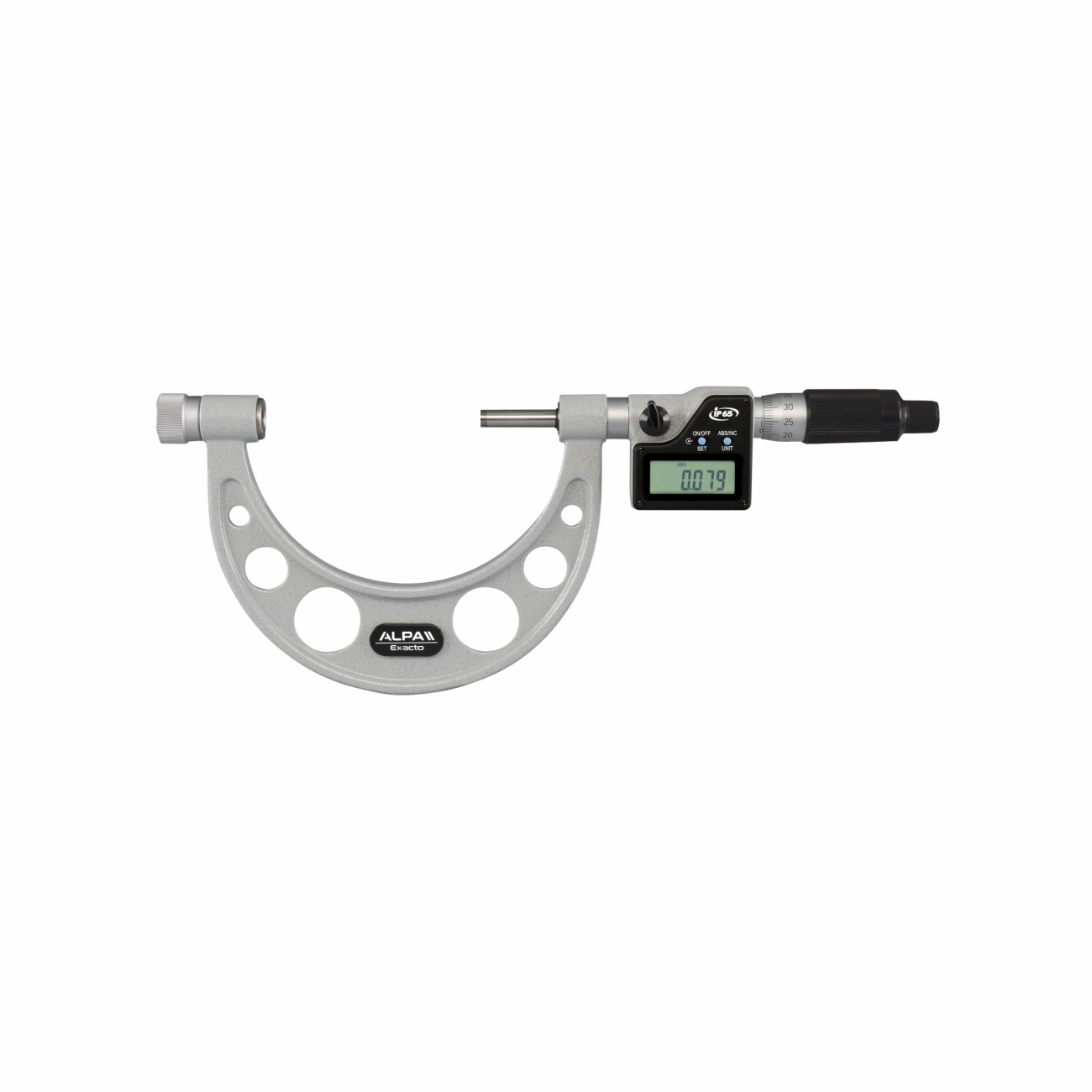

Digital micrometer IP65 ALP BA030

Category: SKU: BA030
Characteristics
  • Resolution 0,001 mm.
    Protected against dust and liquids, ABS function to return to absolute scale.
    Painted frame. HM contact surfaces.
Description

– LCD display
– mm/inch conversion
– HM contact surfaces
– Spindle ø 8 mm
– Resolution 0.001 mm

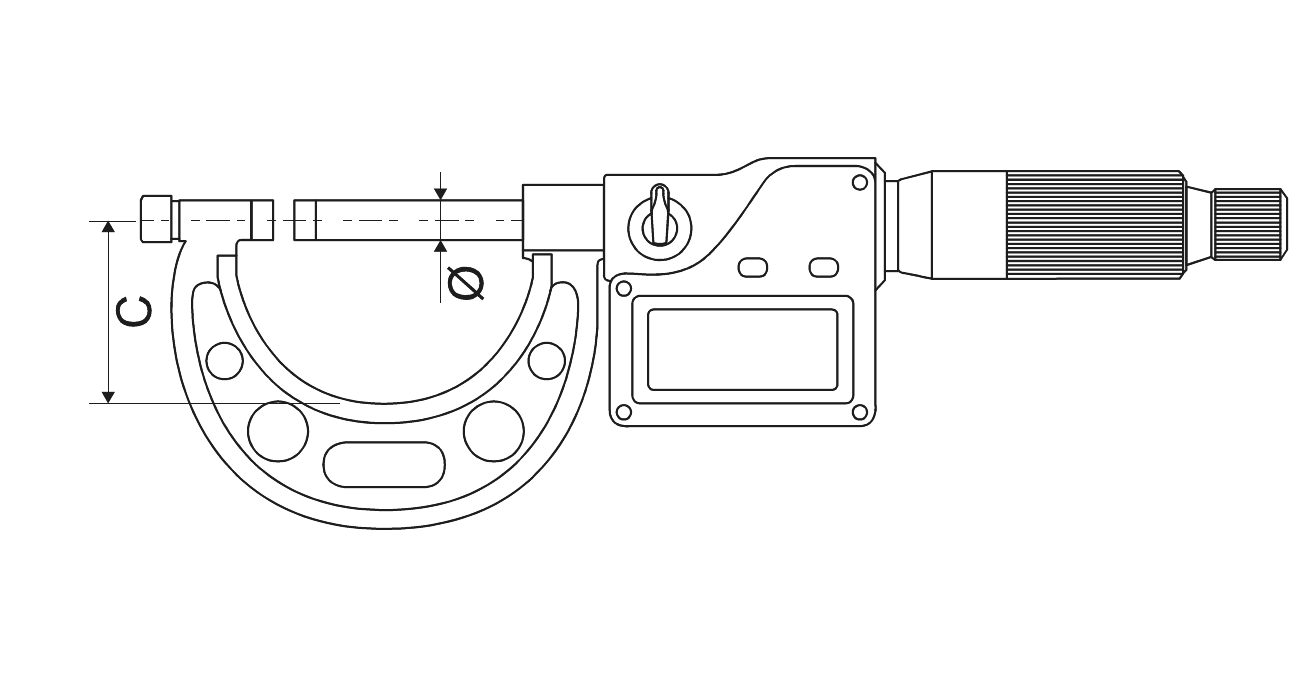

Drawings
Variations
Code
Supplier Item
Range mm
Accuracy mm
C mm
Ø mm
EAN13 Code
BA030100
Supplier Item
S/136-10-610 IP65/A
Range mm
0 ÷ 100
Accuracy mm
± 0,003
C mm
130,5
Ø mm
8
EAN13 Code
2000000158525
BA030200
Supplier Item
S/136-11-610/A
Range mm
100 ÷ 200
Accuracy mm
± 0,004
C mm
230,5
Ø mm
8
EAN13 Code
BA030300A
Supplier Item
S/146-12-610/A
Range mm
200 ÷ 300
Accuracy mm
± 0,005
C mm
332
Ø mm
8
EAN13 Code
BA030300B
Supplier Item
S/146-62-610/A
Range mm
150 ÷ 300
Accuracy mm
± 0,005
C mm
332
Ø mm
8
EAN13 Code
