Digital micrometer IP65 with disk contacts ALPA BA050
Characteristics- Resolution 0,001 mm.
To measure gears. Non-rotating spindle, painted frame, protected against dust, water resistant.
Properties
- ON/OFF:
- Zero:
- Sleep:

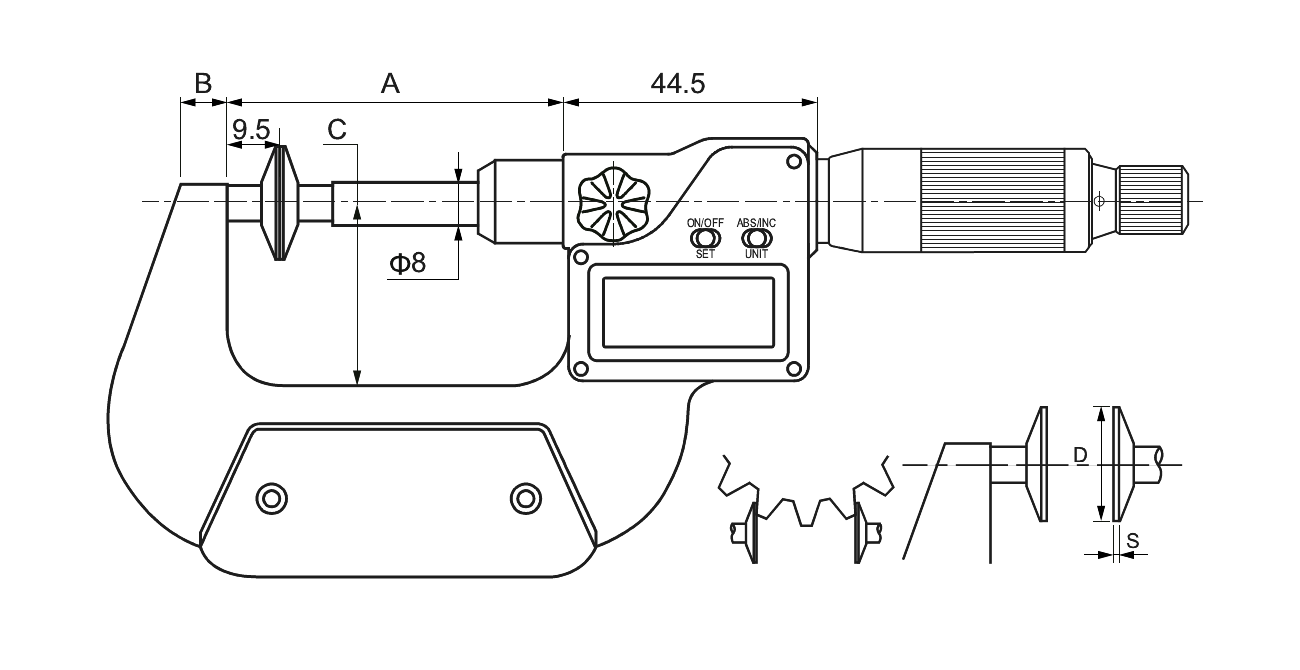

Drawings
Variations
Code
Range mm
Accuracy mm
D ø mm
A mm
B mm
C mm
S mm
BA05025
Range mm
0 ÷ 25
Accuracy mm
± 0,004
D ø mm
20
A mm
59,5
B mm
8
C mm
32
S mm
0,7
BA05050
Range mm
25 ÷ 50
Accuracy mm
± 0,004
D ø mm
20
A mm
85,5
B mm
8
C mm
44,5
S mm
0,7
BA05075
Range mm
50 ÷ 75
Accuracy mm
± 0,005
D ø mm
20
A mm
109,5
B mm
8
C mm
57
S mm
0,7
BA050100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
D ø mm
20
A mm
134,5
B mm
10
C mm
70
S mm
0,7
