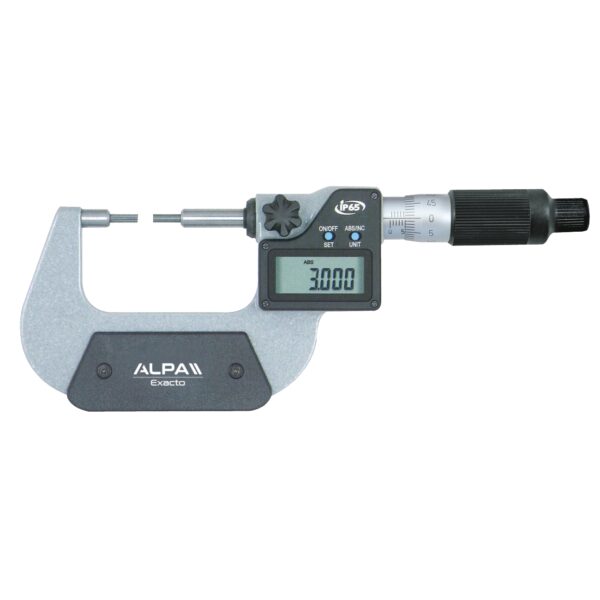

Digital micrometer IP65 with small measuring surfaces ALPA BA055
Characteristics- Resolution 0,001 mm.
Small measuring surfaces (spindle Ø 3 x 10 mm), painted frame, protected against dust, water resistant. HM contact surfaces.
Properties
- ON/OFF:
- Zero:
- Sleep:

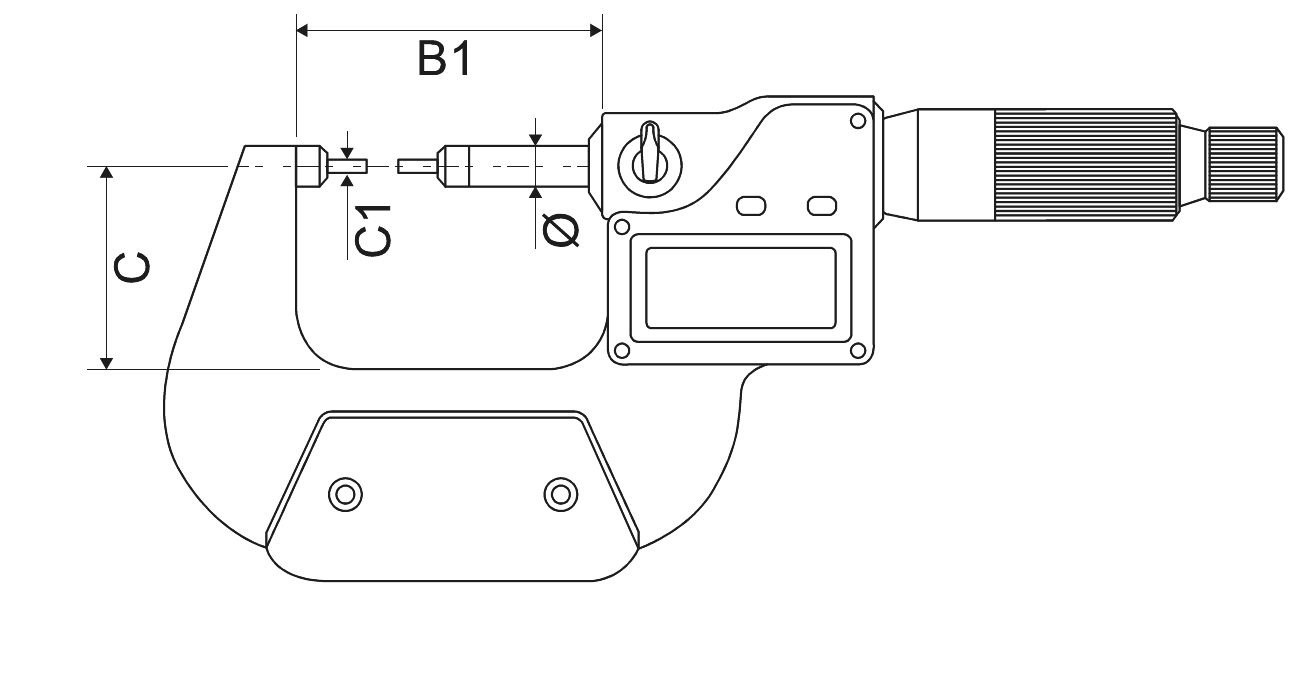

Drawings
Variations
Code
Range mm
Accuracy mm
A mm
C mm
BA05525
Range mm
0 ÷ 25
Accuracy mm
± 0,002
A mm
32
C mm
24
BA05550
Range mm
25 ÷ 50
Accuracy mm
± 0,002
A mm
57
C mm
32
BA05575
Range mm
50 ÷ 75
Accuracy mm
± 0,003
A mm
82
C mm
4,5
BA055100
Range mm
75 ÷ 100
Accuracy mm
± 0,003
A mm
107
C mm
57
