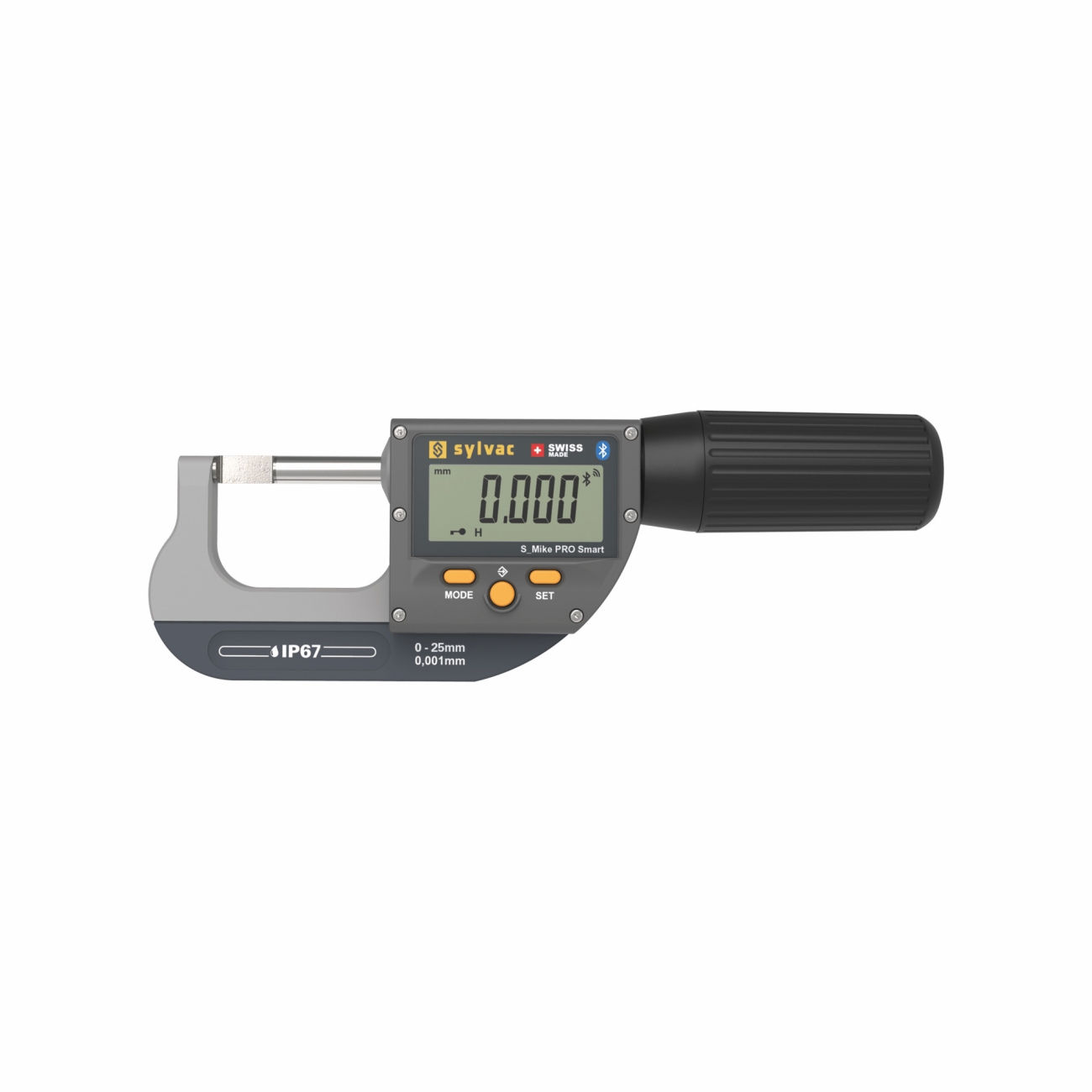

Digital micrometer IP67 special tip with Bluetooth® fast forward and presets S_Mike PRO Smart SYLVAC
Characteristics- Resolution 0.001 mm
- Protection IP67
- Electronics protected against dust and brief immersion in water
- Automatic switch-on by moving the drum
- Stand-by position memory
- Drum stroke (10 mm/revolution)
- Selectable measuring force 5N / 10N (BA012030BT version)
- Non-rotating stem
- Tungsten carbide contacts
- Stem Ø 6.5 mm
Function
- Bluetooth®
- Zero
- Preset
- ABS
- Sleep
- Hold
- mm/inch

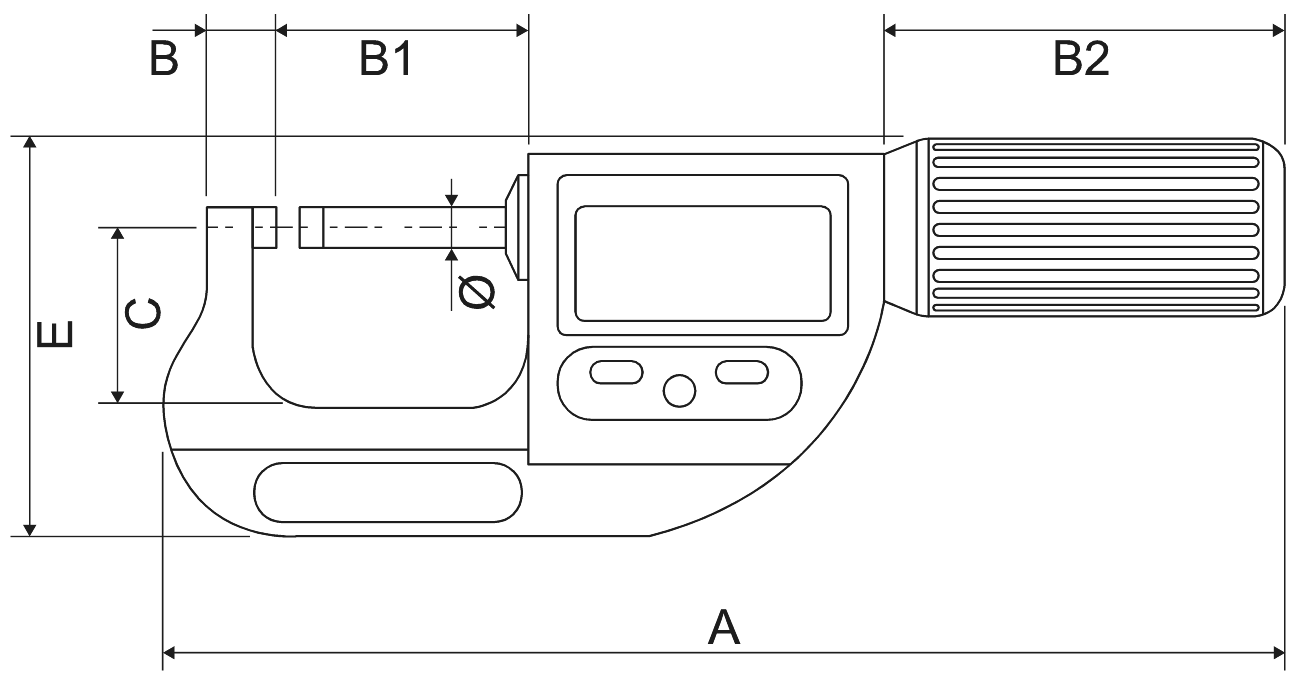

Drawings
Variations
Code
Range mm
Tips mm
Accuracy mm
A mm
B mm
B1 mm
B2 mm
C mm
E mm
BA02125BDBT
Range mm
0 ÷ 25
Tips mm
Ø 2
Accuracy mm
± 0,003
A mm
181
B mm
15,5
B1 mm
34,3
B2 mm
68
C mm
27,5
E mm
63
BA02125CRIMPBT
Range mm
0 ÷ 25
Tips mm
Crimp
Accuracy mm
± 0,003
A mm
181
B mm
15,5
B1 mm
34,3
B2 mm
68
C mm
27,5
E mm
63
BA02125D2BT
Range mm
0 ÷ 25
Tips mm
Blade
Accuracy mm
± 0,003
A mm
181
B mm
15,2
B1 mm
34,6
B2 mm
68
C mm
27,5
E mm
63
BA02125POINTBT
Range mm
0 ÷ 25
Tips mm
Point
Accuracy mm
± 0,003
A mm
181
B mm
15,5
B1 mm
34,3
B2 mm
68
C mm
27,5
E mm
63
