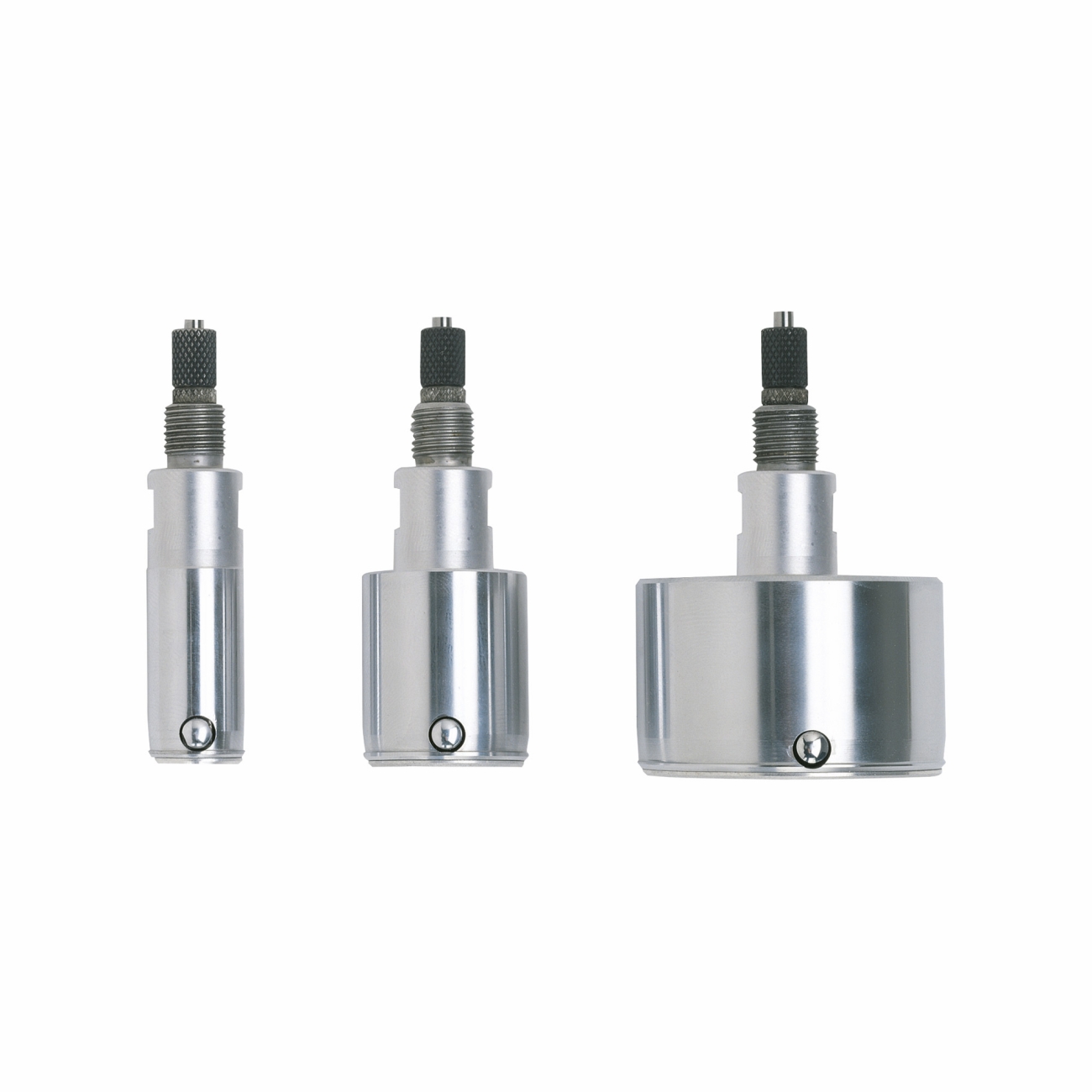

The robust, easy to use Smart Plug range is designed to give the operator greater speed of use, unmatched measuring accuracy and superb repeatability, especially in harsh shop-floor environments. Advanced hand held ergonomics allied to an ingenious mechanical / electronic system render SmartPlugs the easiest to operate Bowers bore gauging system to date. The flexible nature of Bowers SmartPlugs range means that they can be supplied fitted with easy to read electronic indicators (ideal for automatic data collection), conventional analogue indicators, or transducer probes linked to remote digital readout units.
– Measuring range 6-280 mm
– High accuracy dedicated plug-gauges
– Flexible, modular
– Can be incorporated into automated measuring systems (in-series)
– All setting rings supplied as standard with UKAS calibration certificates (to be ordered separately)
– Depth-stops available
– Extensions available for deeper bores
– Guide chamfer for easy entry into bore
– Plug body coatings: Hard-chrome (standard), T.i.N., Plain steel
– Measuring contacts: Tungsten carbide, (standard), hard-chrome, ruby, ceramic

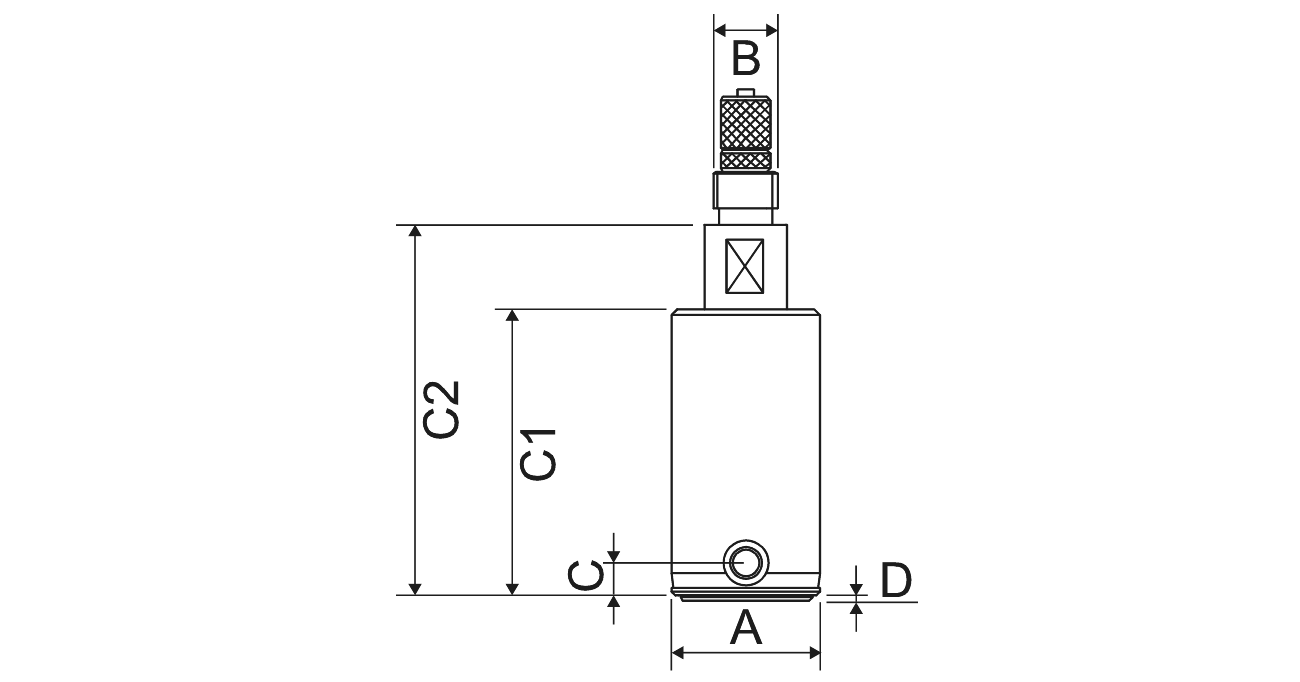

Drawings
Variations
Code
Ø mm
Range mm
h mm
L1 mm
L2 mm
W mm
G mm
BB35020
Ø mm
> 6 ÷ 20
Range mm
0,15
h mm
3
L1 mm
27
L2 mm
35
W mm
Non categorizzato
G mm
M6 x 0,75
BB35025
Ø mm
> 15 ÷ 25
Range mm
0,20
h mm
3,5
L1 mm
28
L2 mm
43,5
W mm
1
G mm
M10 x 1
BB35035
Ø mm
> 25 ÷ 35
Range mm
0,20
h mm
3,5
L1 mm
28
L2 mm
43,5
W mm
1
G mm
M10 x 1
BB35045
Ø mm
> 35 ÷ 45
Range mm
0,20
h mm
3,5
L1 mm
28
L2 mm
43,5
W mm
1
G mm
M10 x 1
BB35060
Ø mm
> 45 ÷ 60
Range mm
0,20
h mm
4
L1 mm
28
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB35080
Ø mm
> 60 ÷ 70 > 70 ÷ 80
Range mm
0,20
h mm
4
L1 mm
28 35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350100
Ø mm
> 80 ÷ 100
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350125
Ø mm
> 100 ÷ 125
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350150
Ø mm
> 125 ÷ 150
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350175
Ø mm
> 150 ÷ 175
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350200
Ø mm
> 175 ÷ 200
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350225
Ø mm
> 200 ÷ 225
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350250
Ø mm
> 225 ÷ 250
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
BB350280
Ø mm
> 250 ÷ 280
Range mm
0,20
h mm
4
L1 mm
35
L2 mm
44
W mm
1,5
G mm
M10 x 1
