Universal gauge large set ALPA BA400

Category: SKU: BA400
Characteristics

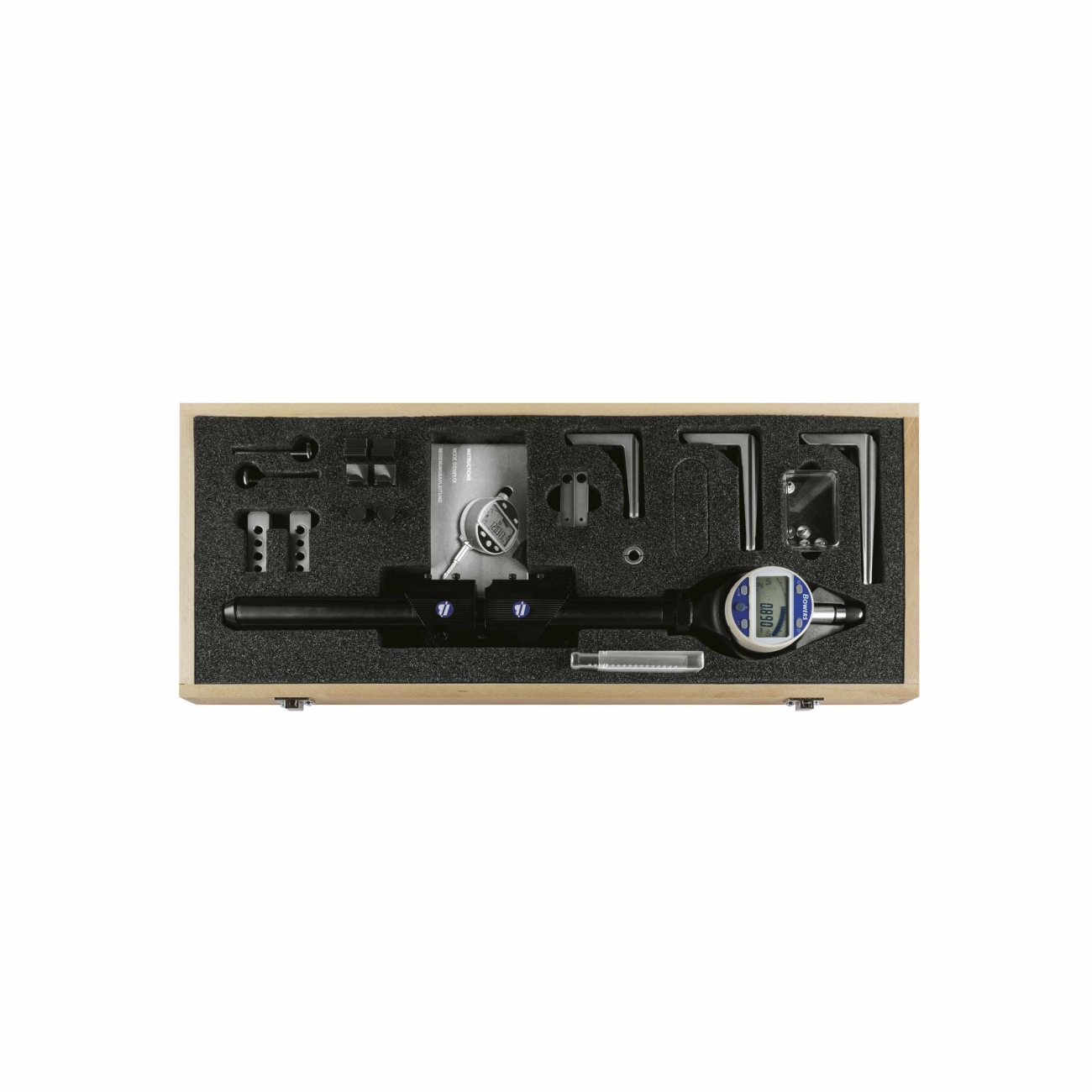

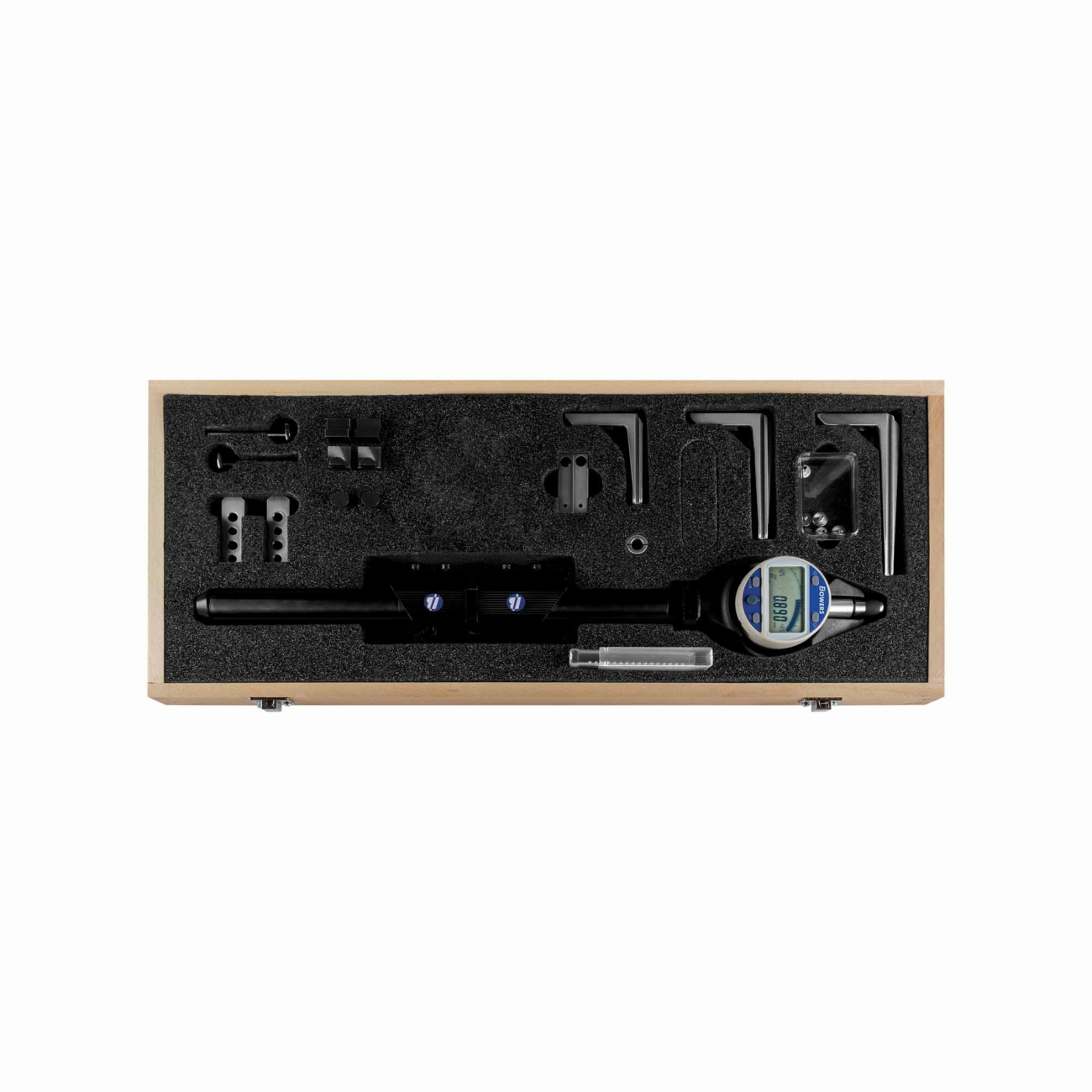

  • Large set for Universal Gauge. It includes, besides the Univesal Gauge itself: digital/analogue Indicator with cowl, measuring arms 50, 75, 100 mm (pair), 20 mm disc anvils for measuring grooves (pair), 12 mm disc anvils internal/external for measuring grooves (pair), shoulder anvils flat outside spigot diameter (pair), semi-cylindrical anvils for inside register diameters (pair), depth-stops (pair), clamping inserts (pair), flat measuring anvil (pair), spherical contacts (pair), mounting attachment (pair). Dial indicator with Bluetooth available on request.
Description

– Internal and external measurement
– Range 0-3000 mm with extensions
– Constant measuring force
– Digital or mechanical readout display
– Large range of accessories for standard
measurement of threads, grooves, splines,
diameters, lengths, shallow spigots and
recess diameters etc
– Anvils aviable on request

Properties

  • Composition: - Univesal gauge - Indicator with cowl - 50 mm Measuring arms - 75 mm Measuring arms - 100 mm Measuring arms - 20 mm Disc anvils - 12 mm Disc anvils int/ext - Shoulder anvils - Semi cylindrical anvils - Depth stops - Clamping insert - Flat measuring anvil - Spherical measuring anvil - Mounting attachment

Variations
Code
Description
BA4000SET
Description
Universal gauge (large set)
