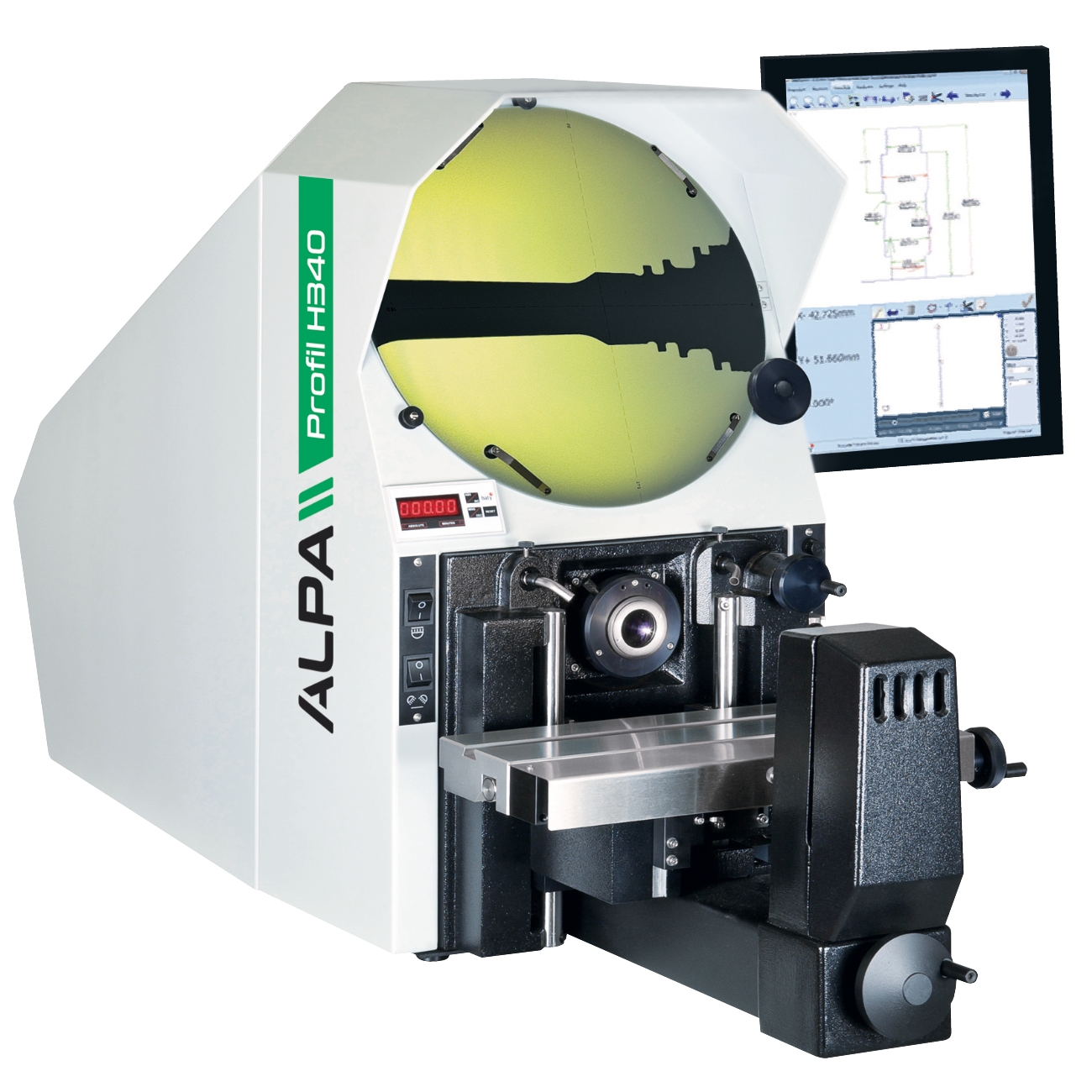

Horizontal profile projector ALPA LA020

  • The horizontal light path configuration is ideal for checking machined components, small and medium dimension cylindrical components and others like screws, bolts, molds, etc. that can be secured to the workstage using a range of optional accessories from the ALPA fixture family. The robust design of the Profile projector makes it suitable for both the shop floor and inspection room. Profile illumination with halogen lamp and green filter. Surface illumination with fibre optic.

Complete touch screen monitor with 2D Fusion Touch software. Built –in optical edge detection allows data points to be taken “on the fly” as the projected images passed under the screen-mounted fibre optic sensor. Many possible features: print numerical and graphical reports, statistic control of process, import/export data in DXF or TXT format.


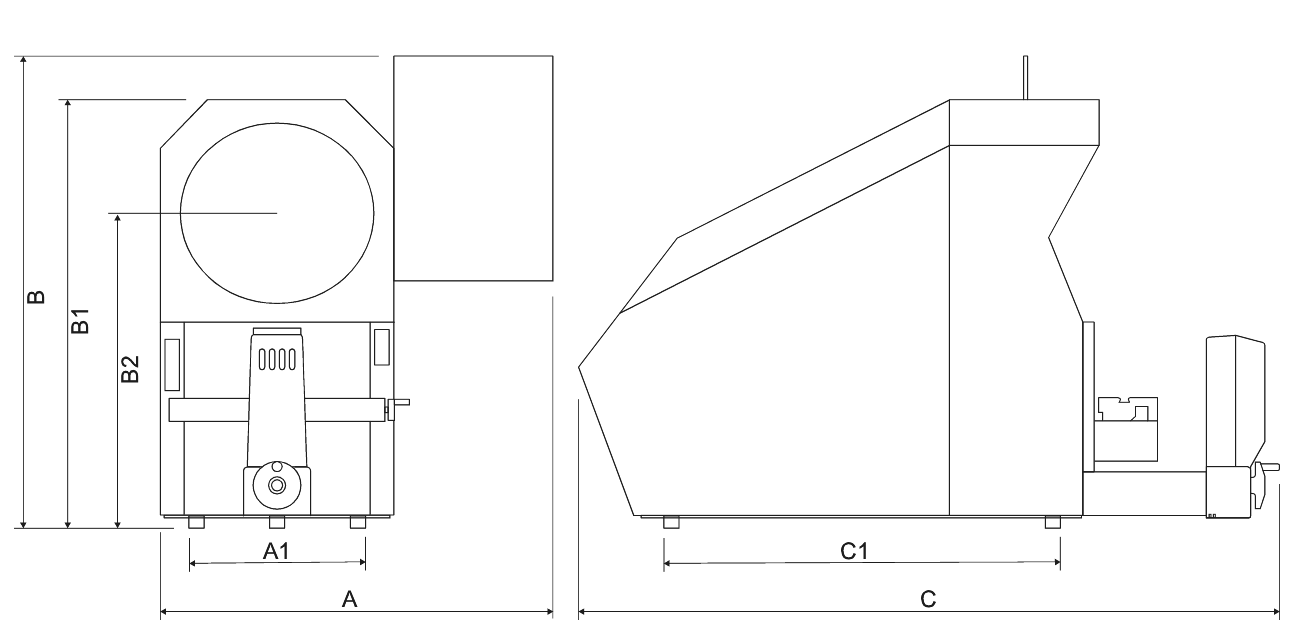

  • Measuring range: (7 x 4)
  • Surface area: (12.8 x 4)
  • Swivel screen: (14)
  • Image: Reverse and inverted
  • Max load: 10
  • Movement: Manual, micrometric and rapid manual on the X axis
  • Scale resolution: 0,0005
  • Light source: Tungsten halogen lamps 12v 100w
  • Magnification accuracy: Profile 0.05% Surface area 0.1%
  • Helix adjustment: ± 7°
  • Accuracy: (3 + L/80)
