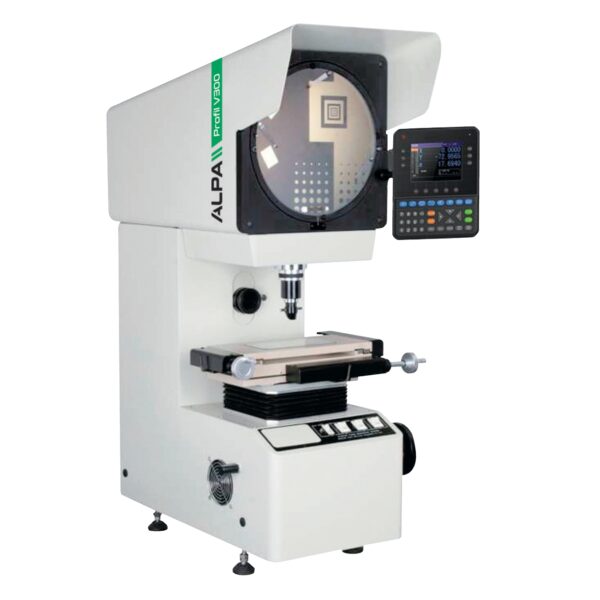

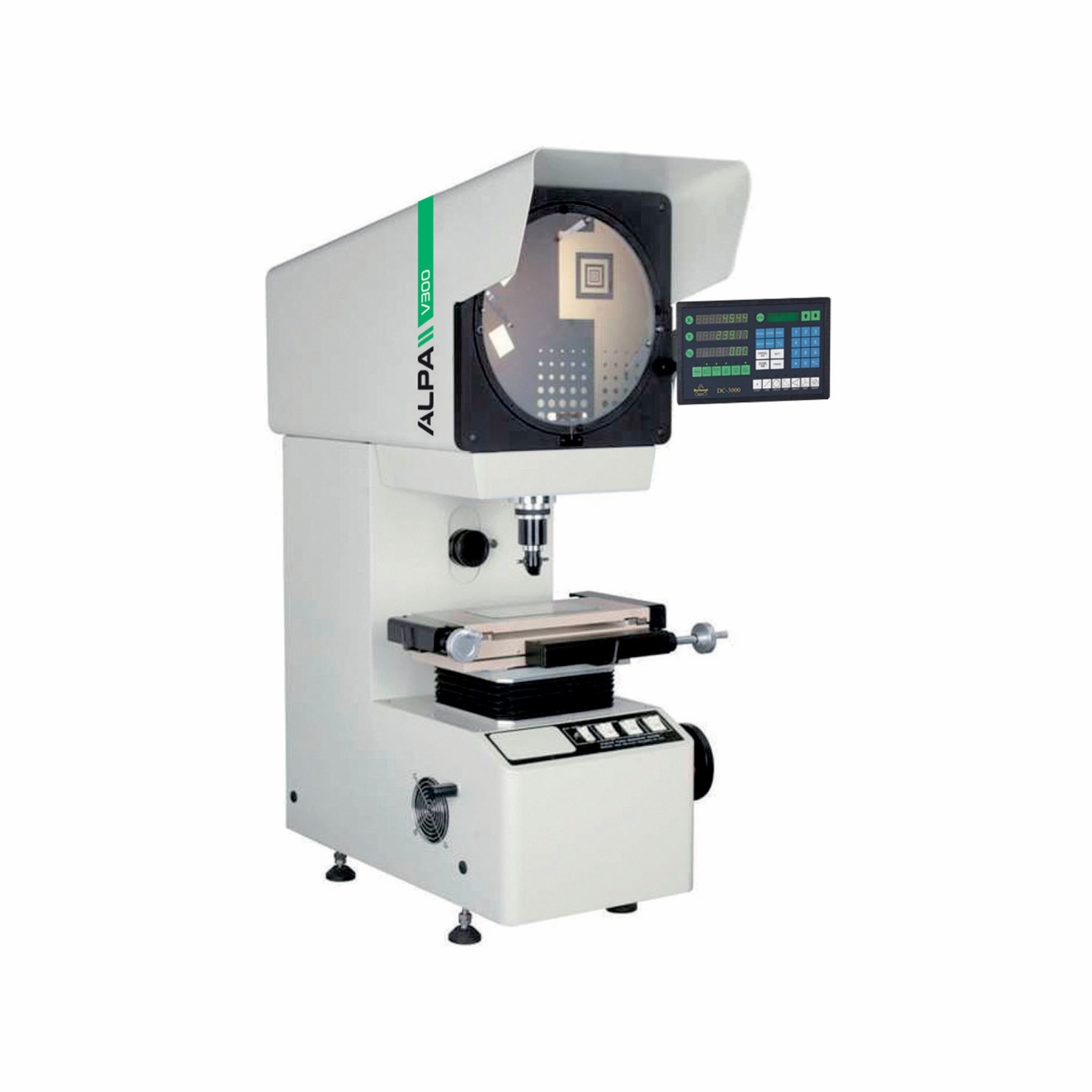

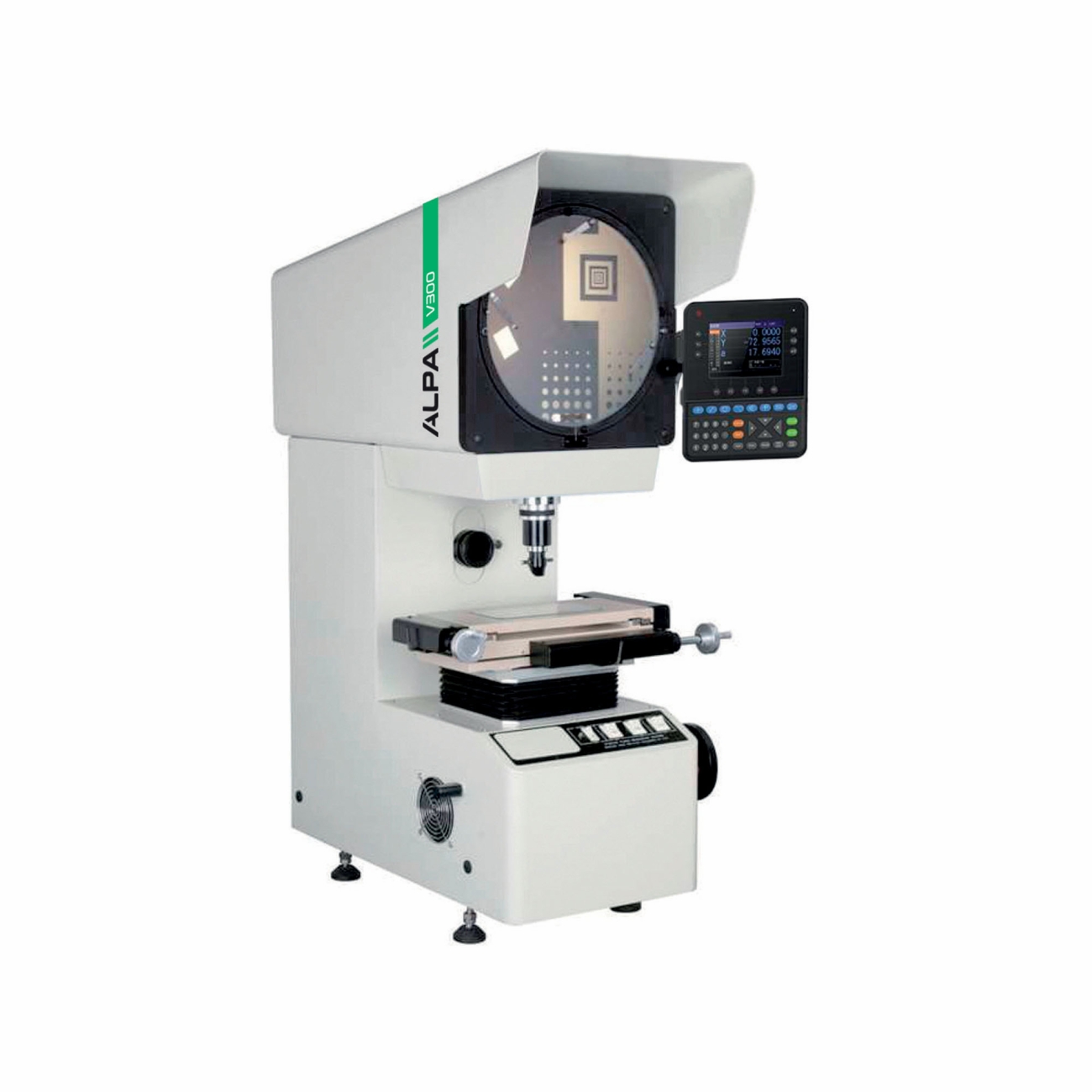

Vertical profile projector PROFIL V300 ALPA LA050

  • ALPA PROFIL V300 vertical profile projector is sharp, accurate and easy to use. With fast movement handle, 3 axis (X, Y and angles) digital read out and geometric data processor unit it can measure radii, diameters, angles and distances. Bright LCD and screen with maximum load of 15 Kg.

High quality profile projector versatile and easy to operate
Linear scale stage with 0.0005 mm resolution
Fine grinded glass screen for clear image with cross
Screen complete with cross lines and chart clips
Built-in profile and surface illumination
10x, 20x, 50x, 100x projection lenses available optional
Data output via RS-232 interface
Display-readout unit DP100 included


  • Measuring range: (6 x 2)
  • Surface area: (13.6 x 6)
  • Screen: (12.5)
  • Image: Erect, reversed
  • Max load: 15
  • Movement: Manual
  • Scale resolution: 0,0005
  • Light source: Halogen lamp
  • Magnification accuracy: 0,08%
  • Helix adjustment: Dimmer switch
  • Accuracy: (3+L/75) µm

Vertical light path profile projector ø 300 mm screen, display Dp100
