The Alpa Profil V300 vertical profile projector is a precise, versatile and easy-to-use tool. It is equipped with a release mechanism for quick handling, a 3-axis viewer (X, Y, angles) and a geometric processor capable of calculating radii, diameters, angles and centre distances. The images are clear and well defined, allowing accurate measurements even on complex parts. It is a profile projector that combines good build quality, ease of use and versatility. It is equipped with a finely sandblasted screen that guarantees a sharp, well-contrasted image. It also features a cross-hair reticle, graph stops, diascopic and episcopic illumination.
Function
Accuracy: (3+L/75) µm

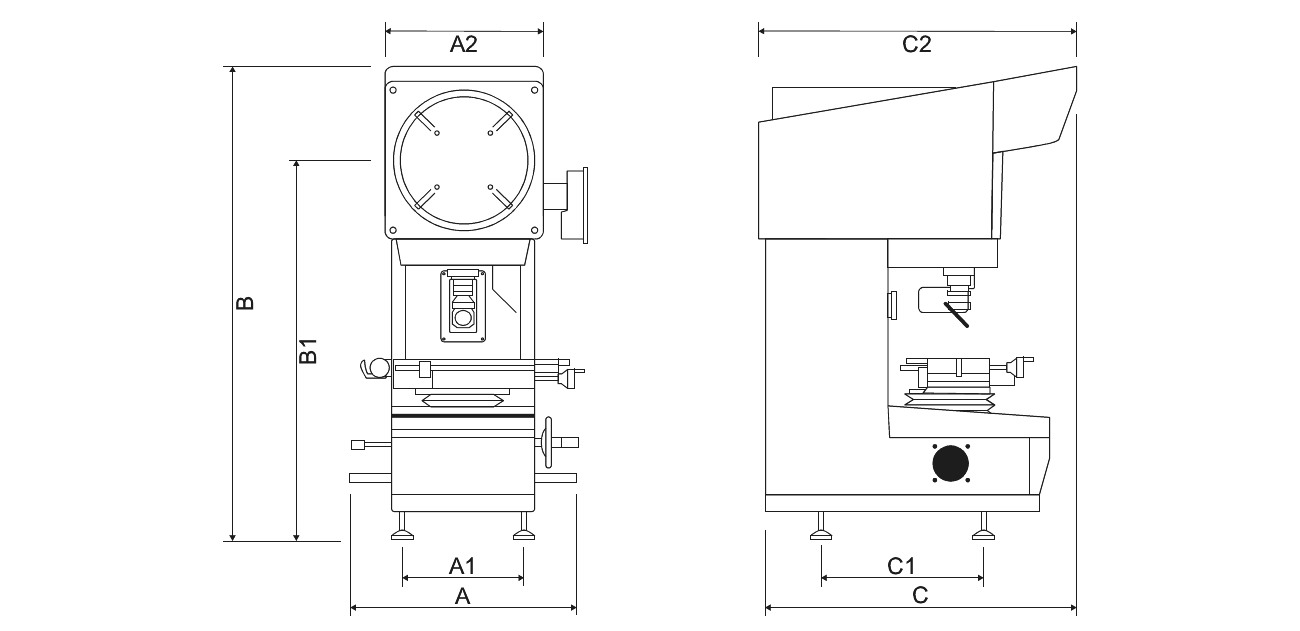

Drawings
Variations
Code
A mm
A1 mm
A2 mm
B mm
B1 mm
C mm
C1 mm
C2 mm
LA050DP
A mm
A1 mm
A2 mm
B mm
B1 mm
C mm
C1 mm
C2 mm
250
LA050VP
A mm
59,6
A1 mm
326
A2 mm
383
B mm
1069
B1 mm
842
C mm
676
C1 mm
476
C2 mm
800
250
