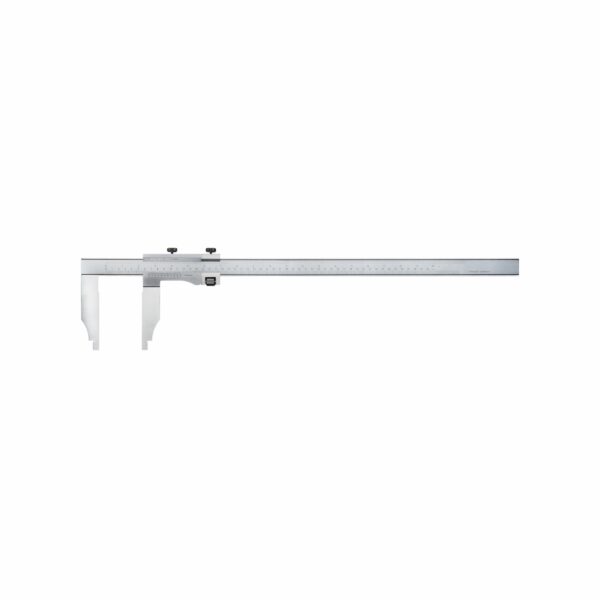

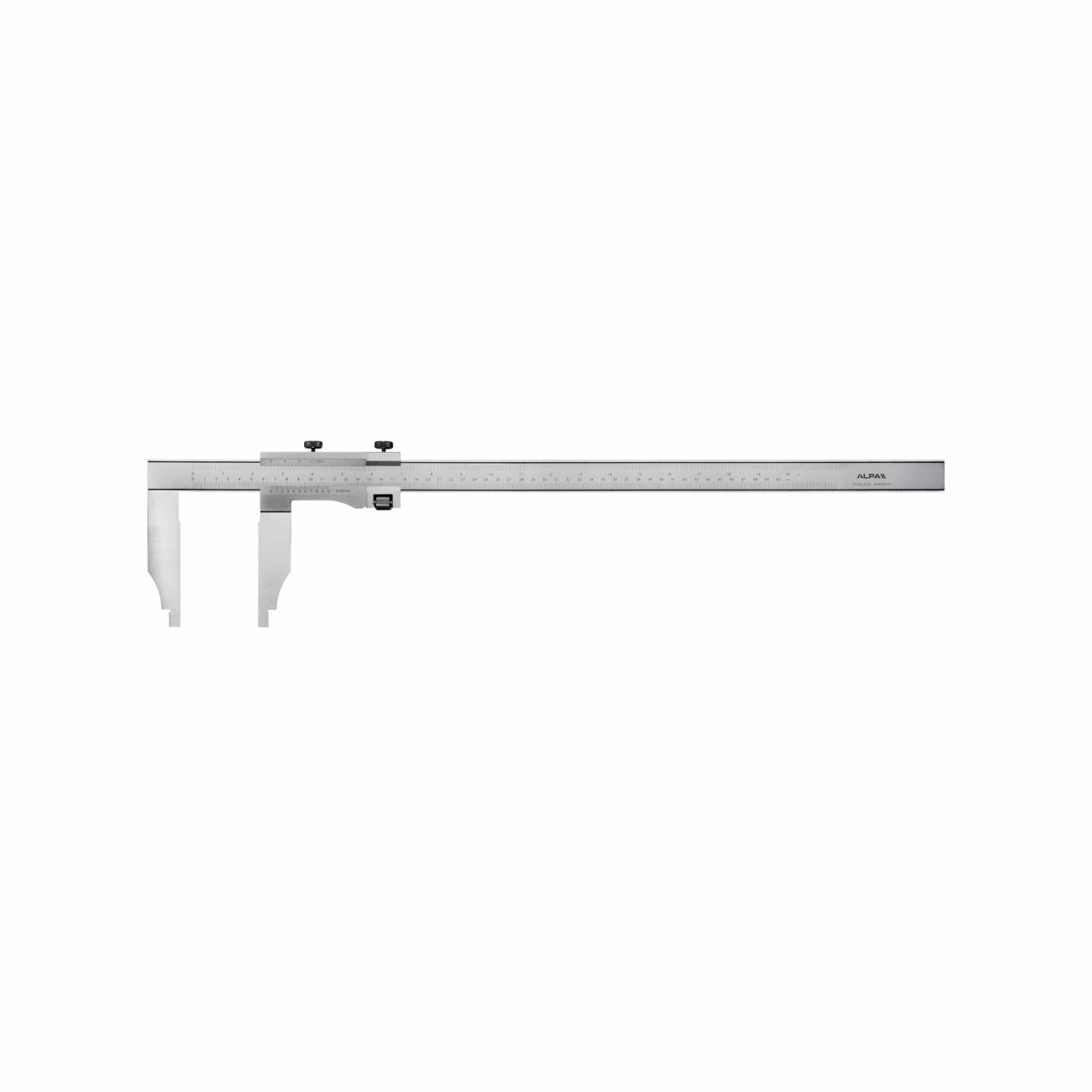

Large-scale slide caliper ALPA AB035

Large-scale slide caliper ALPA AB035

Category: SKU: AB035
Characteristics
  • Accuracy ± 0.04 mm (200)
  • Resolution 0.02 mm
  • Steel structure
  • Slider with locking screw and micrometric adjustment
  • Matt chrome finish scale
Request information
Properties

  • Accuracy: ± 0,04 (200)
  • Resolution: 0,02

Drawings
Variations
Code
Range mm
A mm
C mm
C2 mm
E mm
AB035200
Range mm
0 ÷ 200
A mm
340
C mm
65
C2 mm
5
E mm
20 x 5
0.20
AB035250
Range mm
0 ÷ 250
A mm
390
C mm
80
C2 mm
5
E mm
19 x 4
0.25
AB03530090
Range mm
0 ÷ 300
A mm
440
C mm
90
C2 mm
5
E mm
25 x 4
0.27
AB035300100
Range mm
0 ÷ 300
A mm
470
C mm
100
C2 mm
5
E mm
25 x 4
0.29
AB035300150
Range mm
0 ÷ 300
A mm
470
C mm
150
C2 mm
5
E mm
25 x 4
0.35
AB035400125
Range mm
0 ÷ 400
A mm
570
C mm
125
C2 mm
10
E mm
25 x 5.5
0.44
AB035400200
Range mm
0 ÷ 400
A mm
570
C mm
200
C2 mm
10
E mm
25 x 5.5
0.60
AB035500115
Range mm
0 ÷ 500
A mm
680
C mm
11,5
C2 mm
10
E mm
28 x 6.5
0.70
AB035500150
Range mm
0 ÷ 500
A mm
680
C mm
150
C2 mm
10
E mm
28 x 6.5
1.3
AB035500200
Range mm
0 ÷ 500
A mm
680
C mm
200
C2 mm
10
E mm
28 x 6.5
1.6
AB035600115
Range mm
0 ÷ 600
A mm
780
C mm
11,5
C2 mm
10
E mm
28 x 6.5
1.4
AB035600150
Range mm
0 ÷ 600
A mm
780
C mm
150
C2 mm
10
E mm
28 x 6.5
1.6
AB035600200
Range mm
0 ÷ 600
A mm
780
C mm
200
C2 mm
10
E mm
28 x 6.5
1.8
AB035600300
Range mm
0 ÷ 600
A mm
840
C mm
300
C2 mm
10
E mm
28 x 6.5
2.3
AB035800150
Range mm
0 ÷ 800
A mm
1070
C mm
150
C2 mm
10
E mm
32 x 7.5
1.8
AB035800300
Range mm
0 ÷ 800
A mm
1070
C mm
300
C2 mm
10
E mm
32 x 7.5
3.5
AB035800400
Range mm
0 ÷ 800
A mm
1070
C mm
400
C2 mm
10
E mm
32 x 7.5
3.7
AB0351000150
Range mm
0 ÷ 1000
A mm
1270
C mm
150
C2 mm
10
E mm
32 x 7.5
2
AB0351000300
Range mm
0 ÷ 1000
A mm
1270
C mm
300
C2 mm
10
E mm
32 x 7.5
4
AB0351000500
Range mm
0 ÷ 1000
A mm
1270
C mm
500
C2 mm
10
E mm
32 x 7.5
4.5
AB0351500200
Range mm
0 ÷ 1500
A mm
1800
C mm
200
C2 mm
10
E mm
40 x 10
6.3
AB0351500300
Range mm
0 ÷ 1500
A mm
1800
C mm
300
C2 mm
10
E mm
40 x 10
6.9
AB0351500500
Range mm
0 ÷ 1500
A mm
1800
C mm
500
C2 mm
10
E mm
40 x 10
9
AB0352000300
Range mm
0 ÷ 2000
A mm
2300
C mm
300
C2 mm
10
E mm
40 x 10
8.4
AB0352000500
Range mm
0 ÷ 2000
A mm
2300
C mm
500
C2 mm
10
E mm
40 x 10
10
AB0353000300
Range mm
0 ÷ 3000
A mm
3400
C mm
300
C2 mm
10
E mm
50 x 16
11
