Monoblock slide caliper ALPA AB012

Category: SKU: AB012
Characteristics
  • Accuracy ± 0,04 mm. Resolution 0,05 mm.
    High accuracy, caliper and cursor hardened steel made, matt-chrome finish scale, cursor with locking screw.
Description

– Materiale acciaio inossidabile

  • Asta di profondità standard (piatta)
  • Custodia morbida
  • Properties

    • Accuracy: ± 0,04 (100)
    • Resolution: 0,05

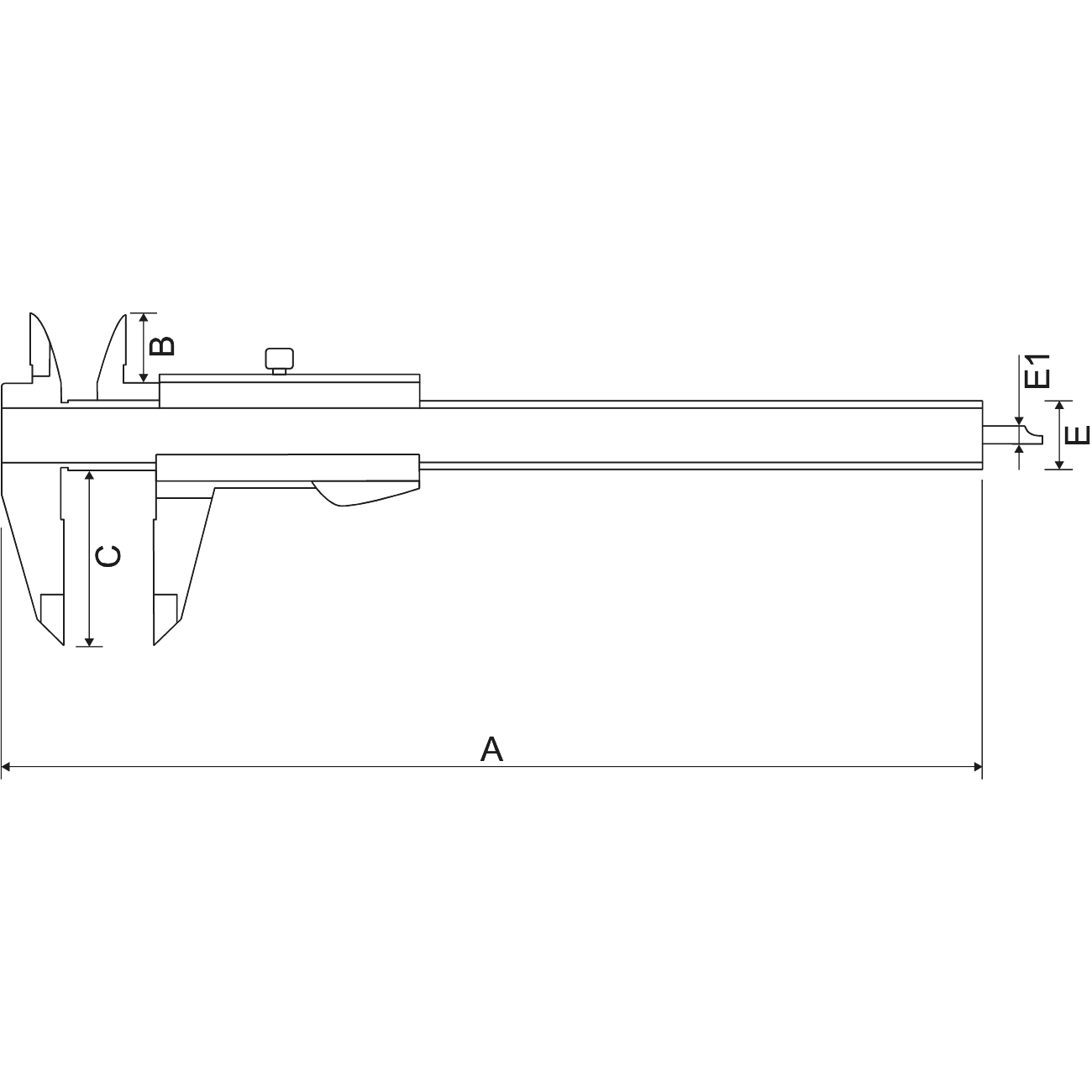

    Drawings
    Variations
    Code
    Range mm
    A mm
    B mm
    C mm
    e mm
    E mm
    AB012100
    Range mm
    0 ÷ 100
    A mm
    170
    B mm
    30
    C mm
    23,5
    e mm
    3,8
    E mm
    13 x 3
    90
    AB012150
    Range mm
    0 ÷ 150
    A mm
    228
    B mm
    40
    C mm
    37
    e mm
    3,8
    E mm
    16 x 3
    170
    AB012200
    Range mm
    0 ÷ 200
    A mm
    286
    B mm
    50
    C mm
    40
    e mm
    3,8
    E mm
    16 x 3,6
    200
    AB012300
    Range mm
    0 ÷ 300
    A mm
    400
    B mm
    60
    C mm
    42
    e mm
    3,8
    E mm
    16 x 4
    280
