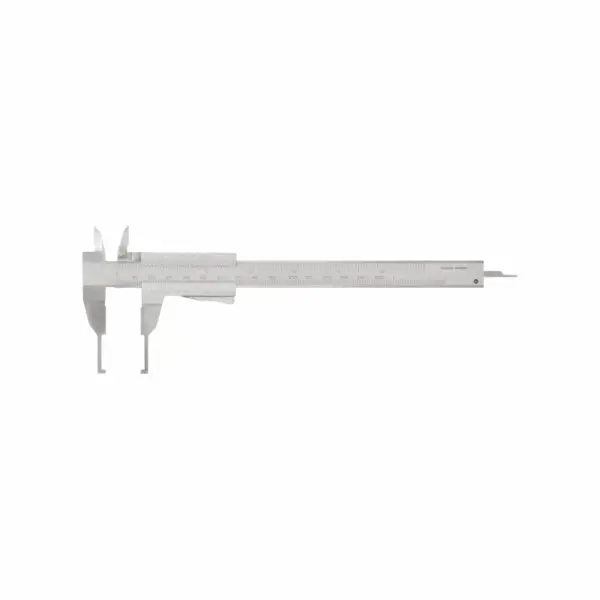

Slide caliper for external grooves ALPA AB100

Category: SKU: AB100
Characteristics
  • Accuracy ± 0,04 mm (150). Resolution 0,05 mm.
    Cursor with locking button.
Description

– Hardened stainless steel

Properties

  • Accuracy: ±0,04 (150)
  • Resolution: 0,05
  • Weight: 170 (150 mm) 200 (200 mm)

Drawings
Variations
Code
Range mm
A mm
B mm
C mm
D mm
E mm
F mm
AB100150
Range mm
0 ÷ 150
A mm
230
B mm
25
C mm
25
D mm
23
E mm
50
F mm
5
170
AB100200
Range mm
0 ÷ 200
A mm
280
B mm
4
C mm
25
D mm
23
E mm
50
F mm
10
200
