Weld seam slide caliper ALPA AB147

Weld seam slide caliper ALPA AB147

Category: SKU: AB147
Characteristics
  • Accuracy ± 0.4 mm
  • Accuracy ± 0.7°
  • Resolution 0.1 mm
  • Stainless steel

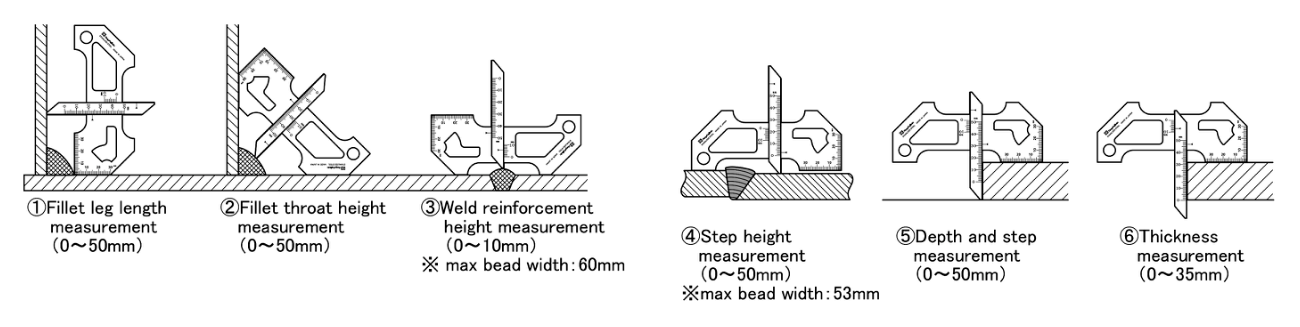

  • Measurement of the size and alignment of the bead, gap, undercut etc.
Request information

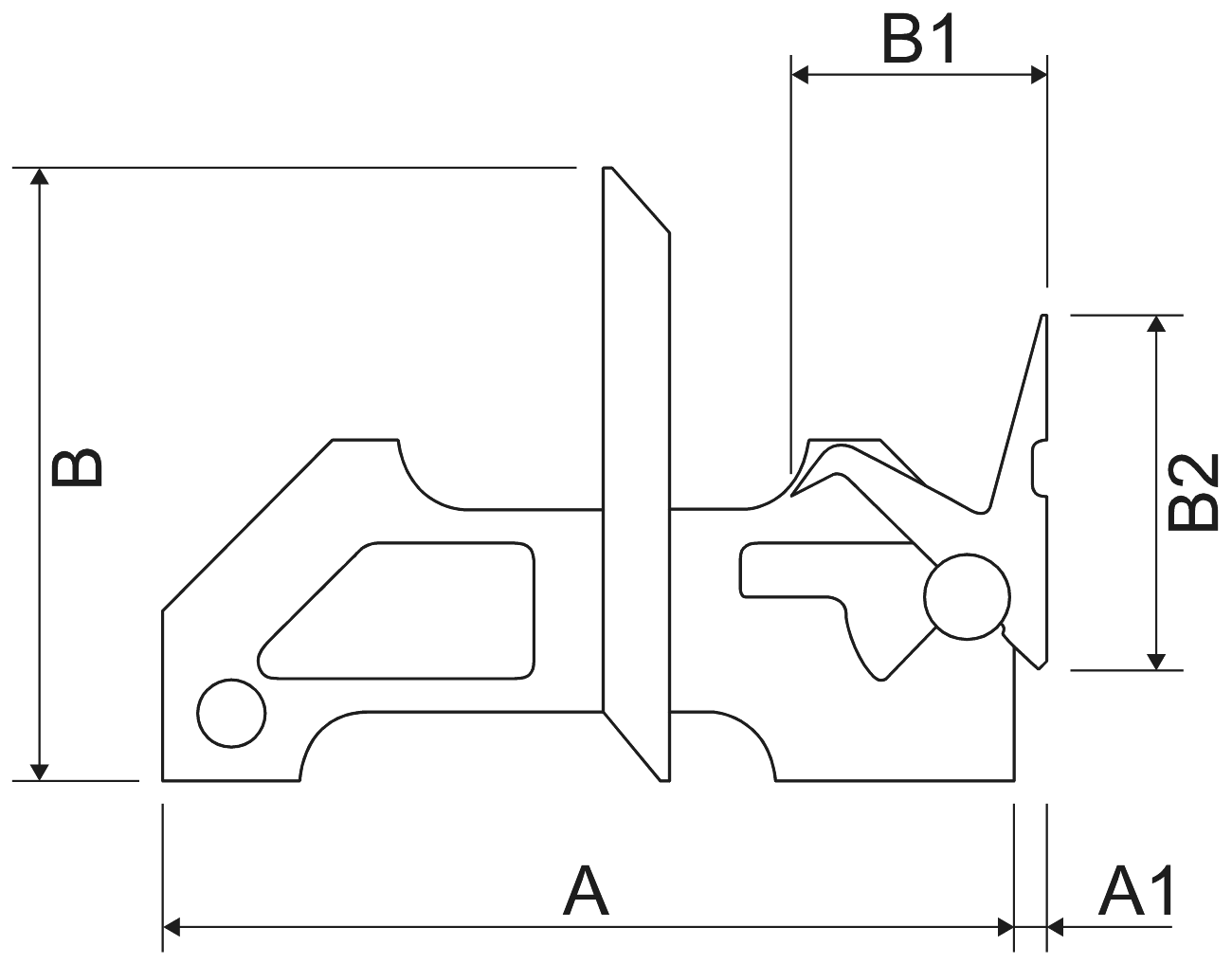

Drawings
Variations
Code
Supplier Item
Range mm
Graduation
A mm
A1 mm
B mm
B1 mm
B2 mm
Weight g
EAN13 Code
AB14750
Supplier Item
7506 MODEL WG-3
Range mm
0 ÷ 50
Graduation
0° - 60°
A mm
125
A1 mm
4,1
B mm
90
B1 mm
37,5
B2 mm
52
Weight g
200
EAN13 Code
2000000158310
