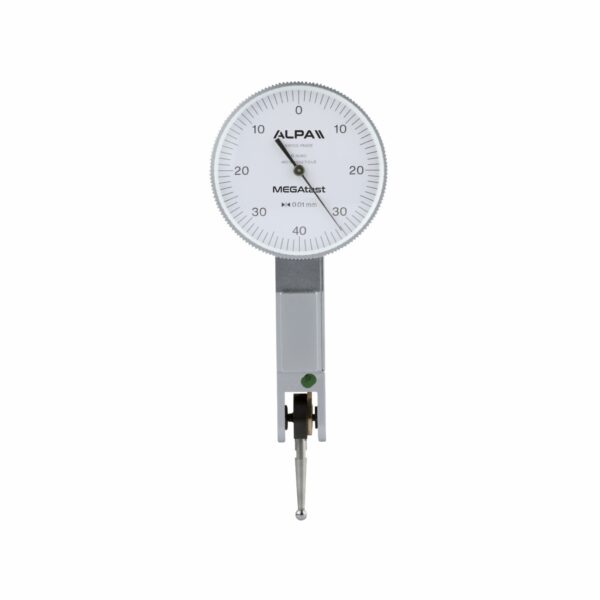

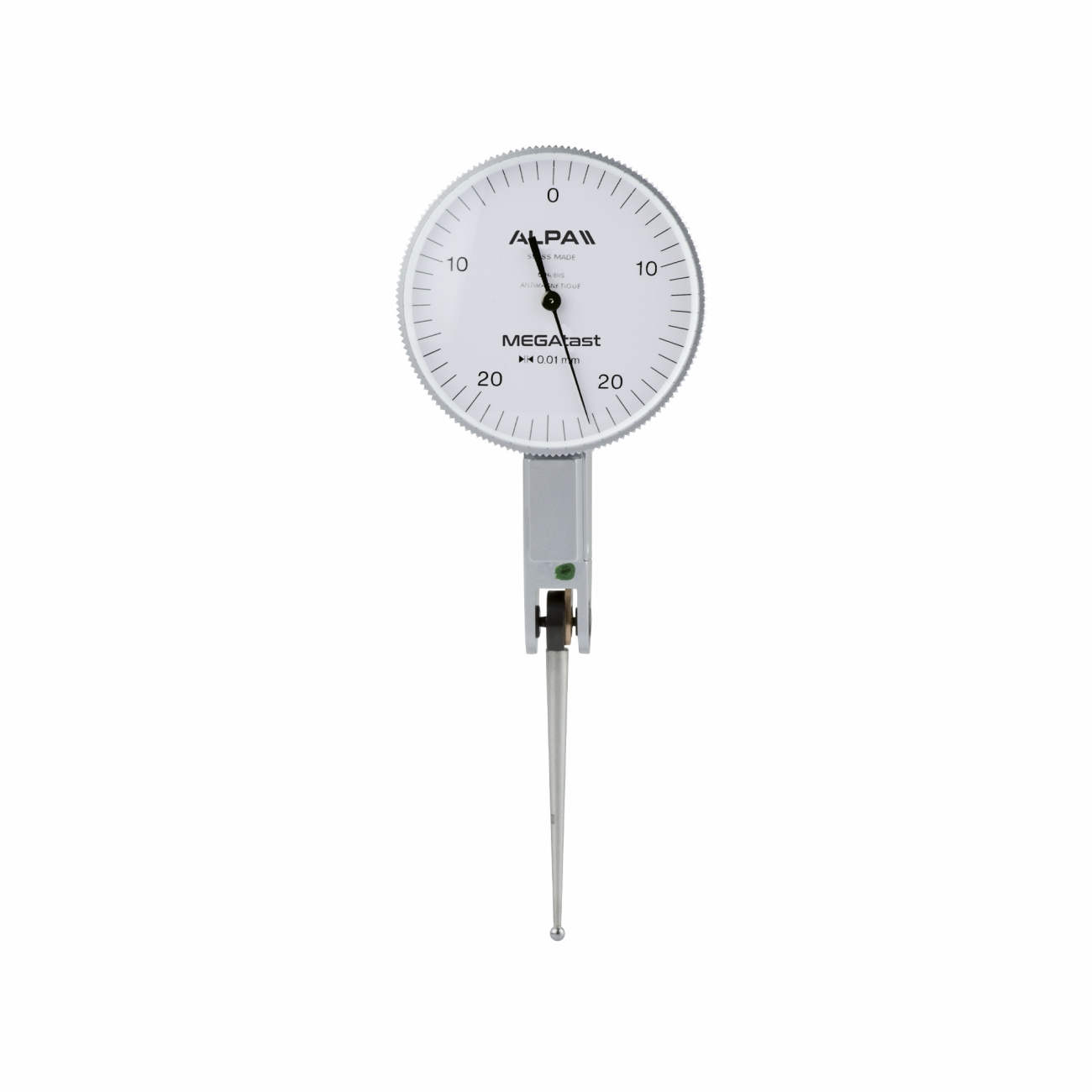

Lever test indicator ALPA MEGATAST CB050

Lever test indicator ALPA MEGATAST CB050

Category: SKU: CB050
Characteristics
  • Swiss made high quality lever dial indicator (according to DIN 2270A). Automatic reversal direction of stylus rotation. Rotable bezel for zero setting. High accuracy movement mounted on 6 ruby bearings. Carbide ball stylus, adjustable within 270° and interchangeable. Tough body featured with dovetail snug Ø 8 mm. Thread M1,4. Interchangeable tips CB051.
Request information
Download the manual
Drawings
Variations
Code
Range mm
Resolution mm
Ø mm
L mm
CB050270,2
Range mm
0 ÷ 0,2
Resolution mm
0,002
Ø mm
27,4
L mm
12
CB050270,5
Range mm
0 ÷ 0,5
Resolution mm
0,01
Ø mm
27,4
L mm
36
CB050270,8
Range mm
0 ÷ 0,8
Resolution mm
0,01
Ø mm
27,4
L mm
12
CB050370,2
Range mm
0 ÷ 0,2
Resolution mm
0,002
Ø mm
37
L mm
12
CB050370,5
Range mm
0 ÷ 0,5
Resolution mm
0,01
Ø mm
37
L mm
36
CB050370,8
Range mm
0 ÷ 0,8
Resolution mm
0,01
Ø mm
37
L mm
12
