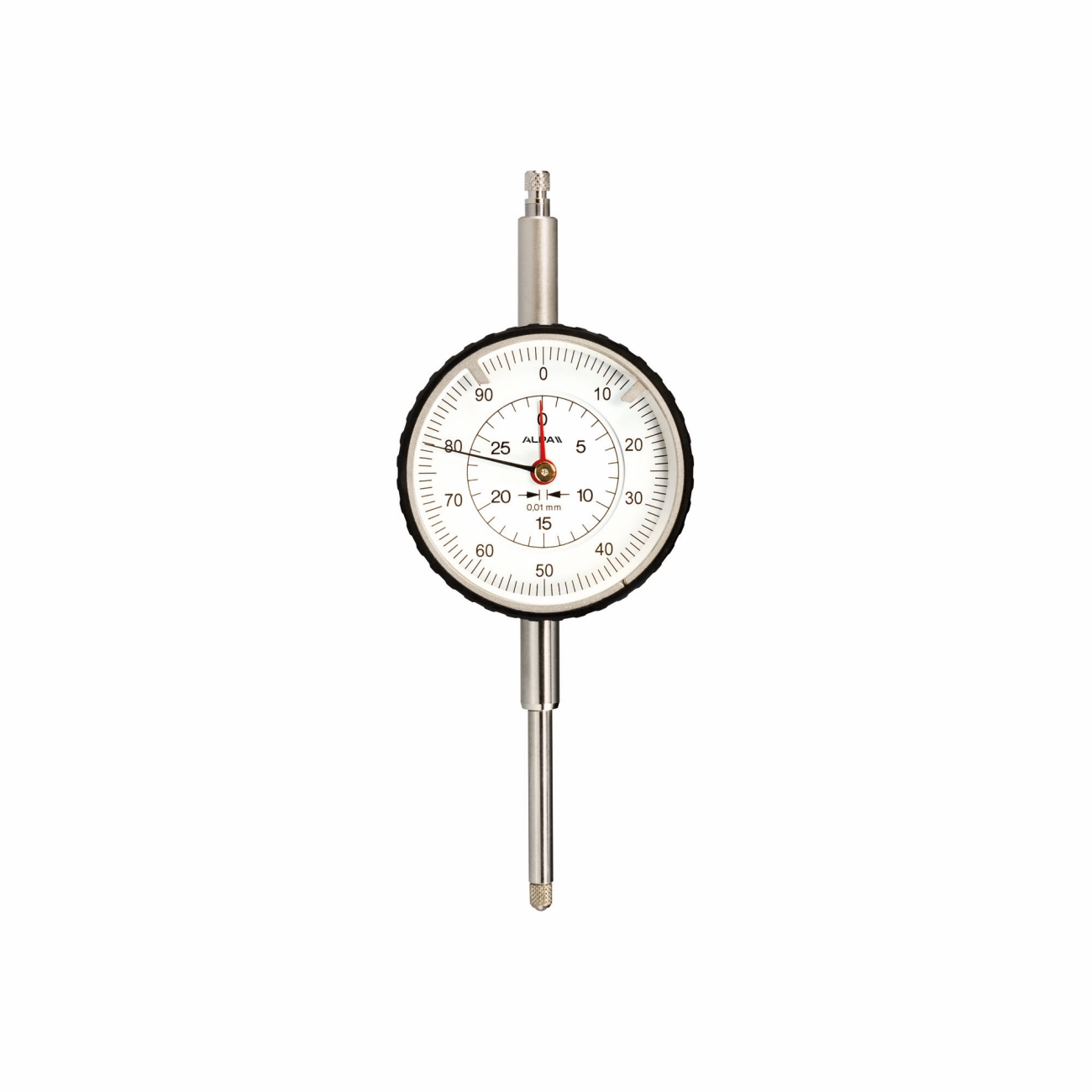

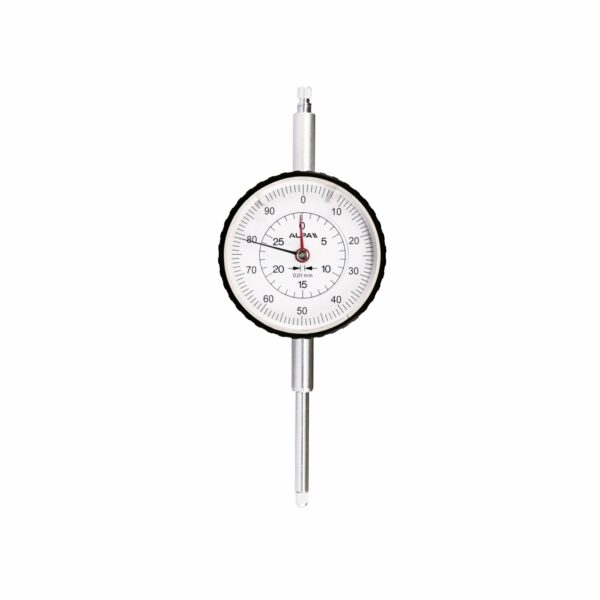

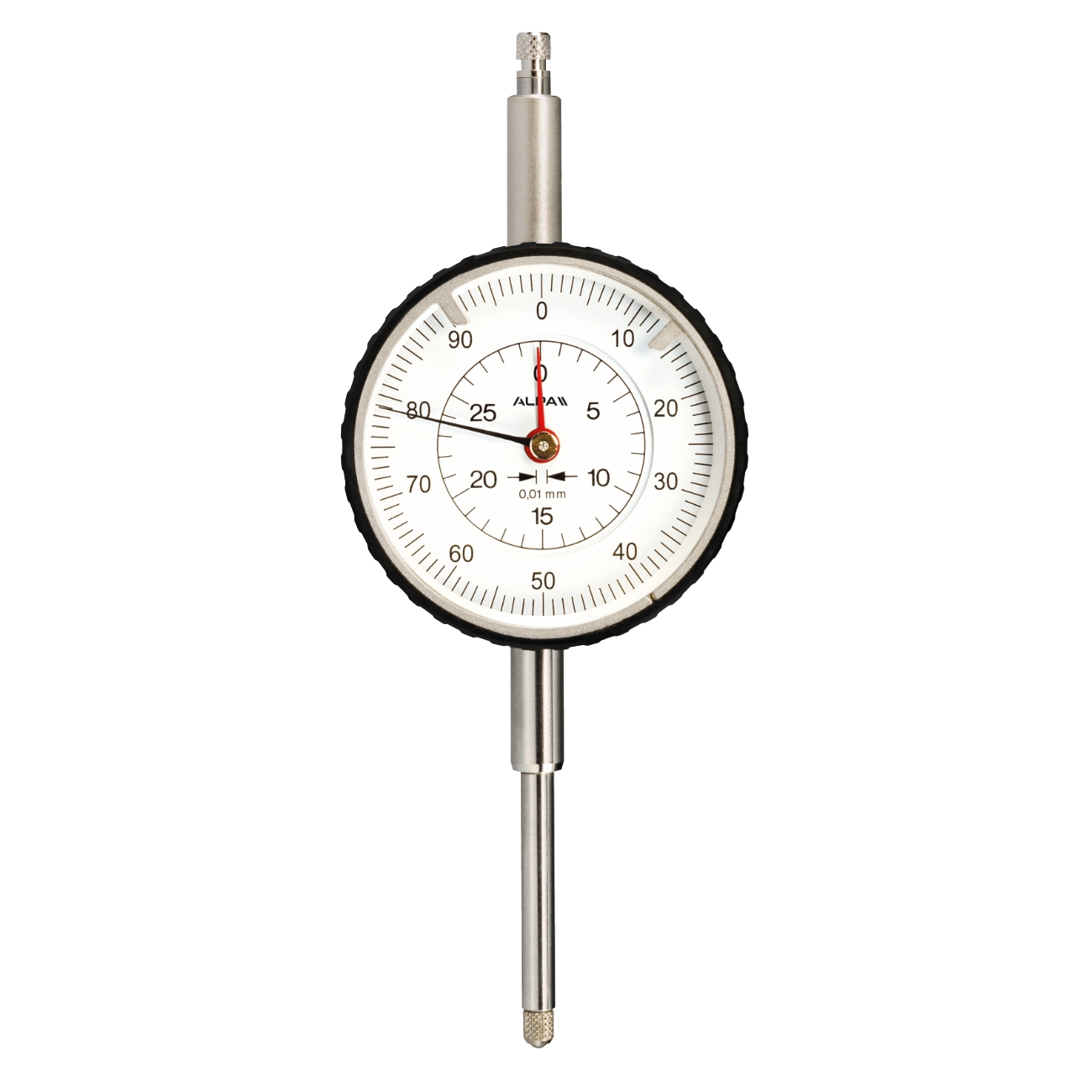

Ø 58 mm centesimal dial gauge ALPA CB017
Characteristics- Accuracy according to UNI 4180.
Movement on jewel bearings, hardened stainless steel stem. Dial centesimal reading concentric to the millimetrical one. Cylindrical mounting Ø 8 mm.
Properties
- Range: 0 ÷ 30 (CB01730ST) 0 ÷ 30 (CB01730AU) 0 ÷ 50 (CB01750ST) 0 ÷ 50 (CB01750AU)
- Resolution: 0,01
- Weight: 170 (CB01730ST) 170 (CB01730AU) 280 (CB01750ST) 280 (CB01750AU)
Drawings
Variations
Code
Campo mm
Resolution mm
A mm
B mm
D mm
E mm
CB01730AU
Campo mm
0 ÷ 30
Resolution mm
0,01
A mm
59
B mm
89
D mm
58
E mm
22
CB01730ST
Campo mm
0 ÷ 30
Resolution mm
0,01
A mm
59
B mm
89
D mm
58
E mm
22
CB01750AU
Campo mm
0 ÷ 50
Resolution mm
0,01
A mm
105
B mm
127
D mm
59
E mm
36
CB01750ST
Campo mm
0 ÷ 50
Resolution mm
0,01
A mm
105
B mm
127
D mm
59
E mm
36
