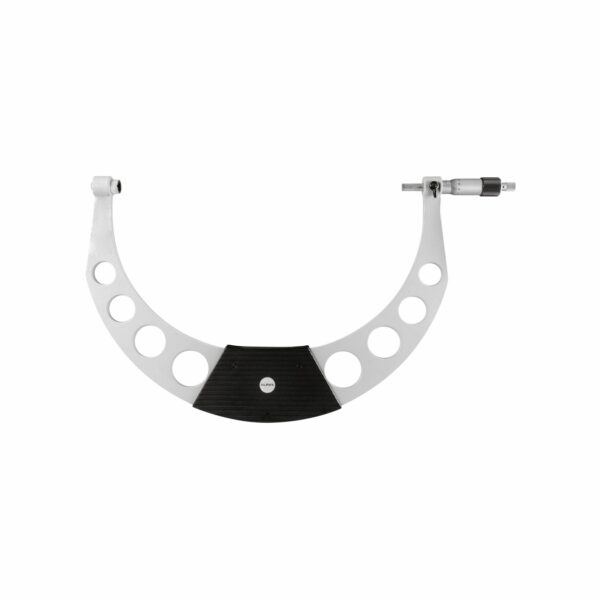

Micrometer for external measurements ALPA BB004

Micrometer for external measurements ALPA BB004

Category: SKU: BB004
Characteristics
  • Resolution 0,01 mm.
    Matt-chrome finish graduated feeding unit assay, sensitive friction positioned onto the feeding unit assay, heat-insulating frame cover. Painted frame. HM contact surfaces.
Request information
Description

– HM contact surfaces
– Spindle ø 8 mm
– Resolution 0.01 mm

Download the manual
Drawings
Variations
Code
Range mm
Accuracy mm
A mm
C mm
BB004300
Range mm
200 ÷ 300
Accuracy mm
± 0,009
A mm
337
C mm
175
BB004400
Range mm
300 ÷ 400
Accuracy mm
± 0,011
A mm
437
C mm
225
BB004500
Range mm
400 ÷ 500
Accuracy mm
± 0,013
A mm
537
C mm
275
