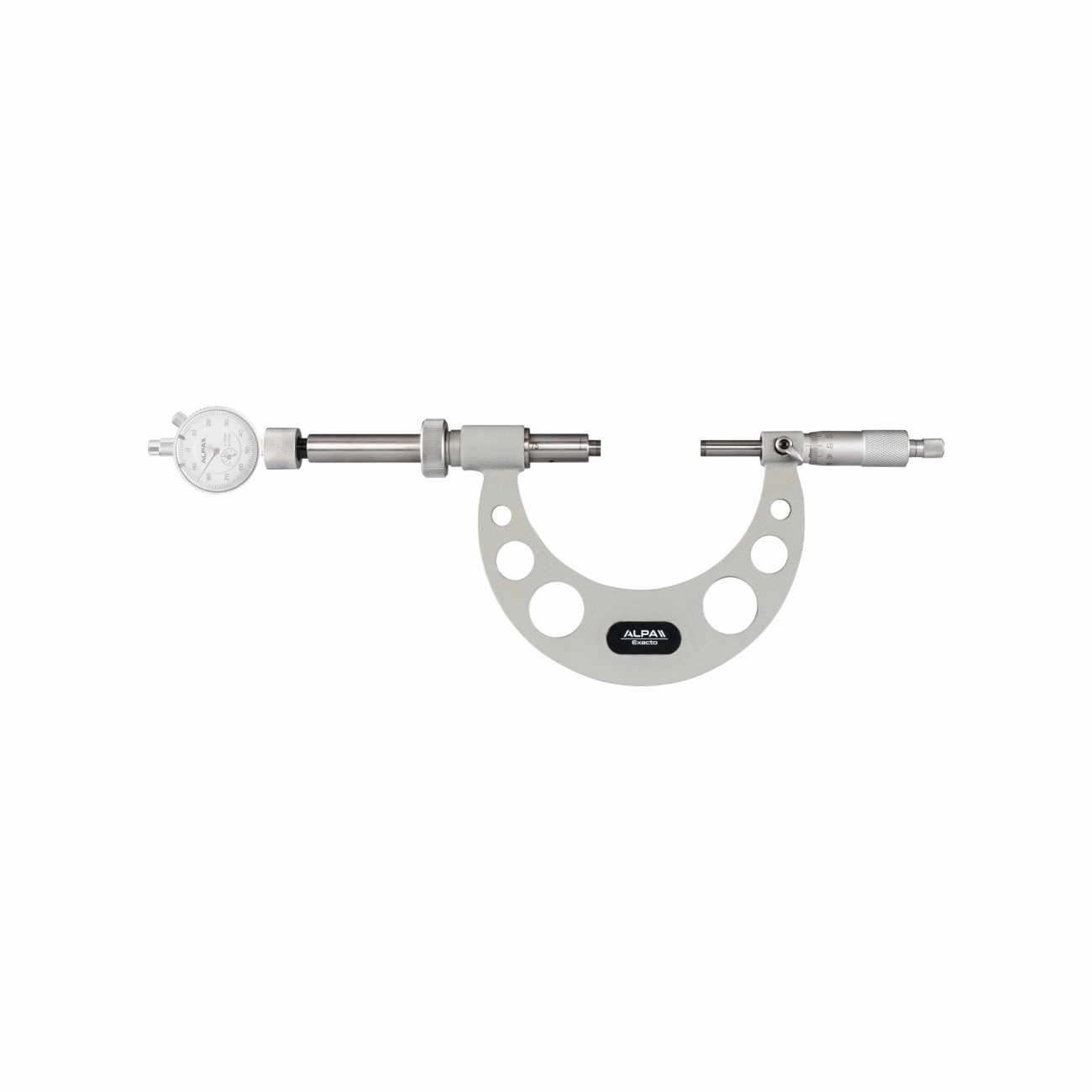

Micrometer for external measurements ALPA BB007
Characteristics- Resolution 0,01 mm.
Wide measuring range and high accuracy, suitable for mass-measurement. Centesimal dial gauge with measuring range 0-5 mm, maximum force 10N.
Painted frame. HM contact surfaces. Spindle Ø 8 mm.
Description
– HM contact surfaces
– Spindle ø 8 mm
– Resolution 0.01 mm

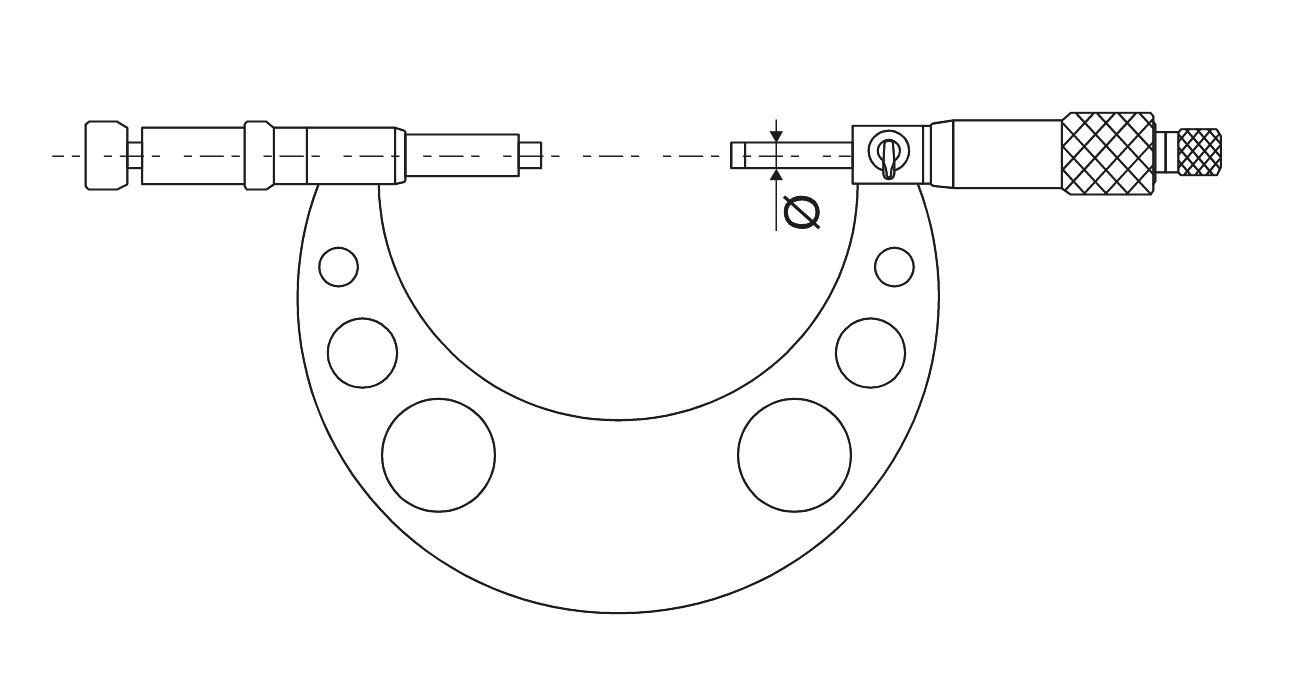

Drawings
Variations
Code
Range mm
Accuracy mm
Arc structure
BB007100
Range mm
0 ÷ 100
Accuracy mm
± 0,006
Arc structure
Solid
BB007200
Range mm
100 ÷ 200
Accuracy mm
± 0,007
Arc structure
Solid
BB007300
Range mm
200 ÷ 300
Accuracy mm
± 0,008
Arc structure
Solid
BB007400
Range mm
300 ÷ 400
Accuracy mm
± 0,009
Arc structure
Tube shaped
BB007500
Range mm
400 ÷ 500
Accuracy mm
± 0,010
Arc structure
Tube shaped
BB007600
Range mm
500 ÷ 600
Accuracy mm
± 0,011
Arc structure
Tube shaped
BB007700
Range mm
600 ÷ 700
Accuracy mm
± 0,012
Arc structure
Tube shaped
BB007800
Range mm
700 ÷ 800
Accuracy mm
± 0,013
Arc structure
Tube shaped
BB007900
Range mm
800 ÷ 900
Accuracy mm
± 0,014
Arc structure
Tube shaped
BB0071000
Range mm
900 ÷ 1000
Accuracy mm
± 0,015
Arc structure
Tube shaped
