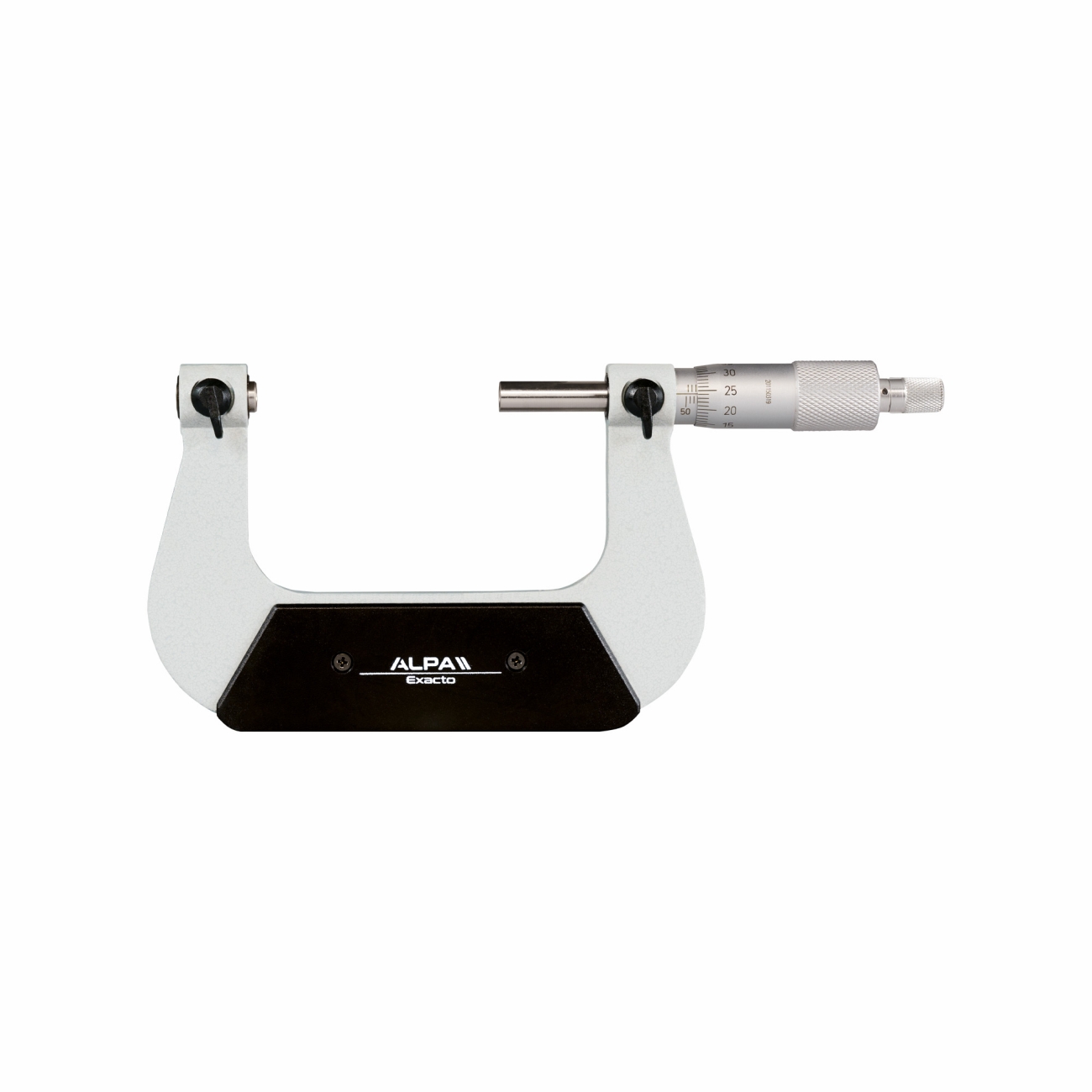

Micrometer for external threads ALPA BB105
Characteristics- Resolution 0,01 mm.
Micrometer anvil to measure pitch diameter and metric screw threads, 60° (metric and UN) or 55° (Withworth). Non-rotating spindle Ø 6,5 mm and locking screw. Provided with 60° anvils and standard bar for zero point setting of sheet metal thickness. Painted frame. Accurate execution. Hardened stainless steel.
Description
– Accurate execution
– Hardened stainless steel
– Resolution 0.01 mm
Drawings
Variations
Code
Range mm
Accuracy mm
Included set anvils 60°
BB10525
Range mm
0 ÷ 25
Accuracy mm
± 0,004
Included set anvils 60°
1-2-3-4-5
BB10550
Range mm
25 ÷ 50
Accuracy mm
± 0,004
Included set anvils 60°
2-3-4-5-6
BB10575
Range mm
50 ÷ 75
Accuracy mm
± 0,004
Included set anvils 60°
3-4-5-6
BB105100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
Included set anvils 60°
3-4-5-6
BB105125
Range mm
100 ÷ 125
Accuracy mm
± 0,005
Included set anvils 60°
4-5-6
BB105150
Range mm
125 ÷ 150
Accuracy mm
± 0,005
Included set anvils 60°
4-5-6
BB105175
Range mm
150 ÷ 175
Accuracy mm
± 0,006
Included set anvils 60°
4-5-6
BB105200
Range mm
175 ÷ 200
Accuracy mm
± 0,006
Included set anvils 60°
4-5-6
