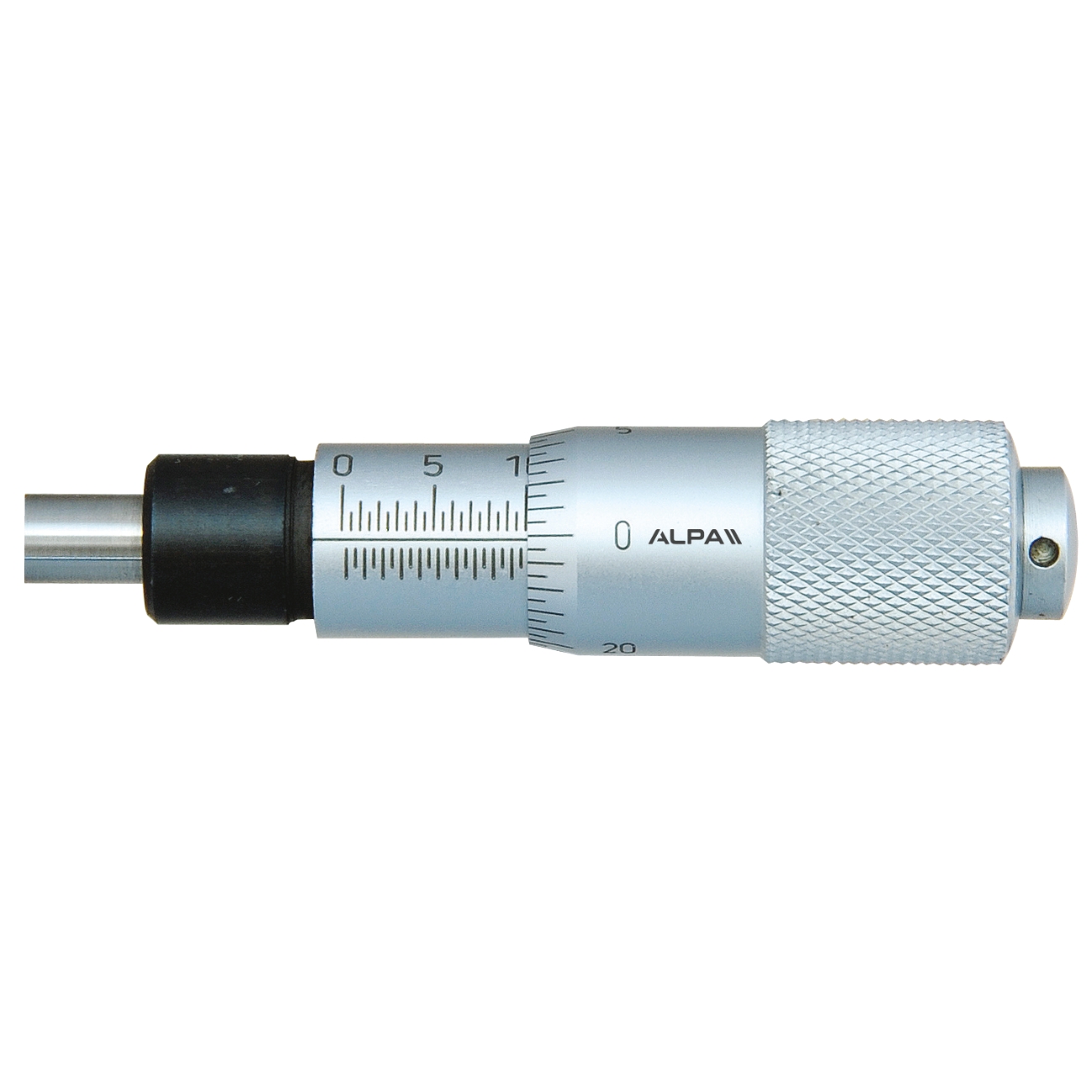

Micrometer head 0-13 mm travel ALPA BB155

Micrometer head 0-13 mm travel ALPA BB155

Category: SKU: BB155
Characteristics
  • Resolution 0.005 mm. Fine reading. Micrometer thread pitch: 0.25 mm.
Request information

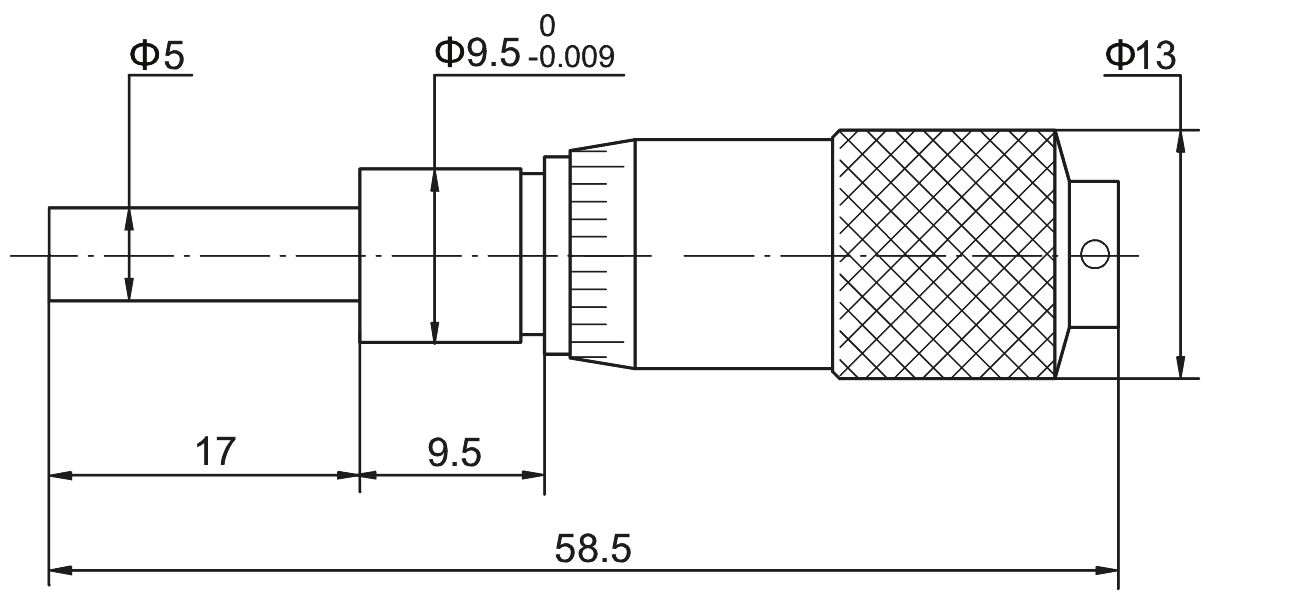

Drawings
Variations
Code
Range mm
Resolution mm
Accuracy mm
Ø mm
L2 mm
L1 mm
D1 mm
Contact
Head
BB155A
Range mm
0 ÷ 13
Resolution mm
0,005
Accuracy mm
± 0,004
Ø mm
5
L2 mm
17
L1 mm
58,5
D1 mm
13
Contact
1A
Head
1B
